Except Advanced Air Bag

DTC B1014: "AIR BAG" Warning Light Circuit

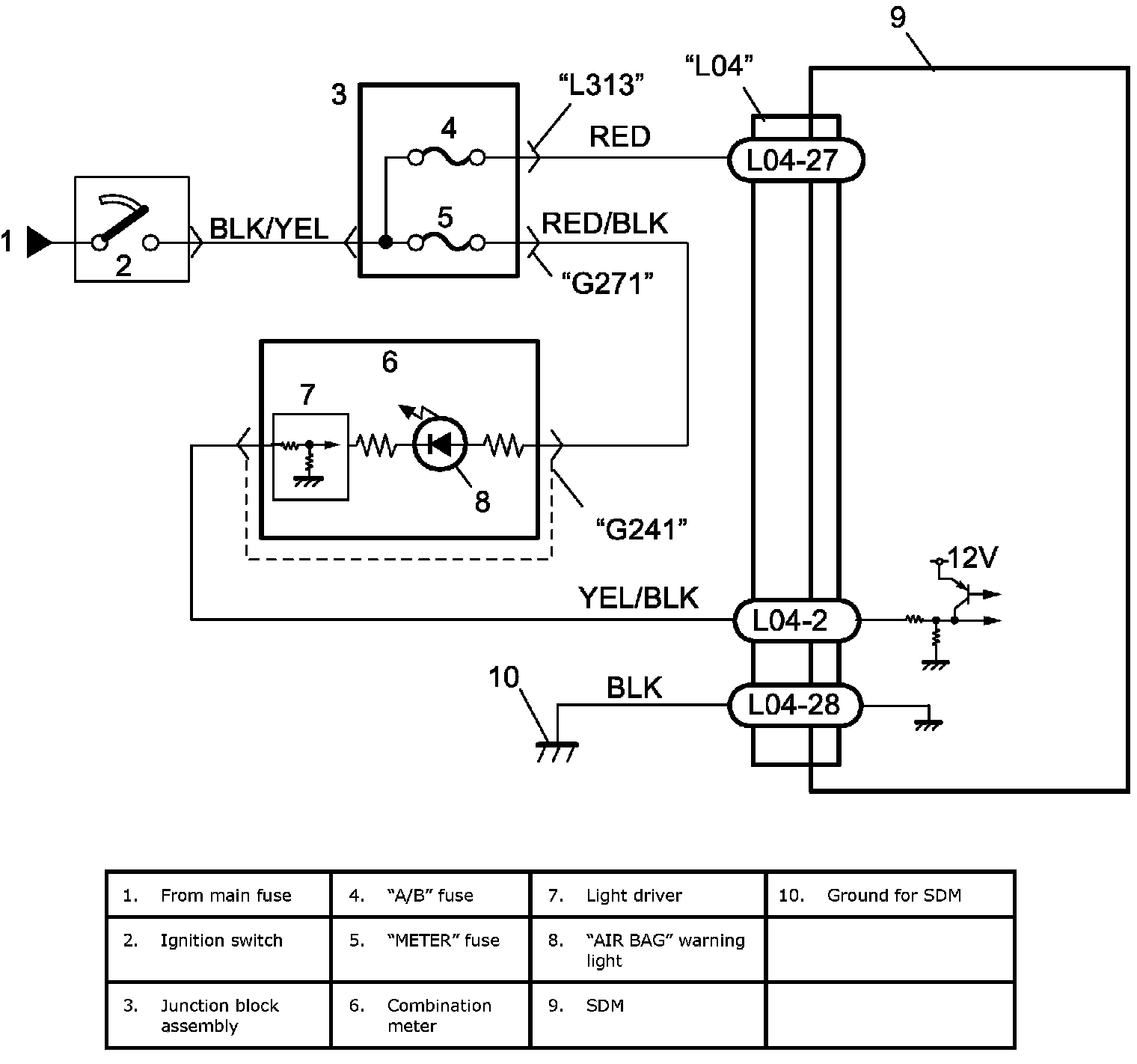

Wiring Diagram

Wiring Diagram:

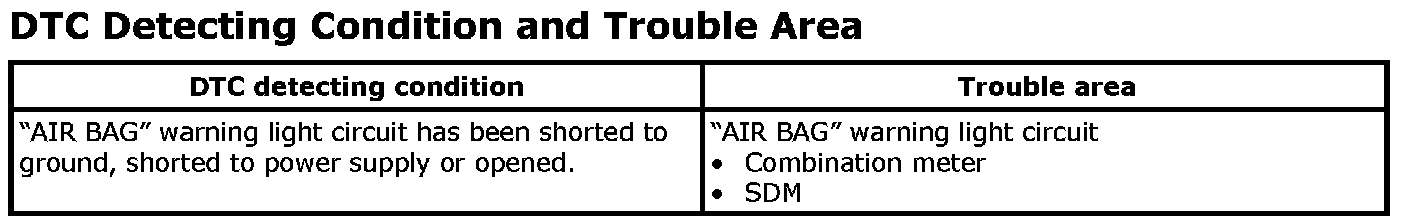

DTC Detecting Condition and Trouble Area

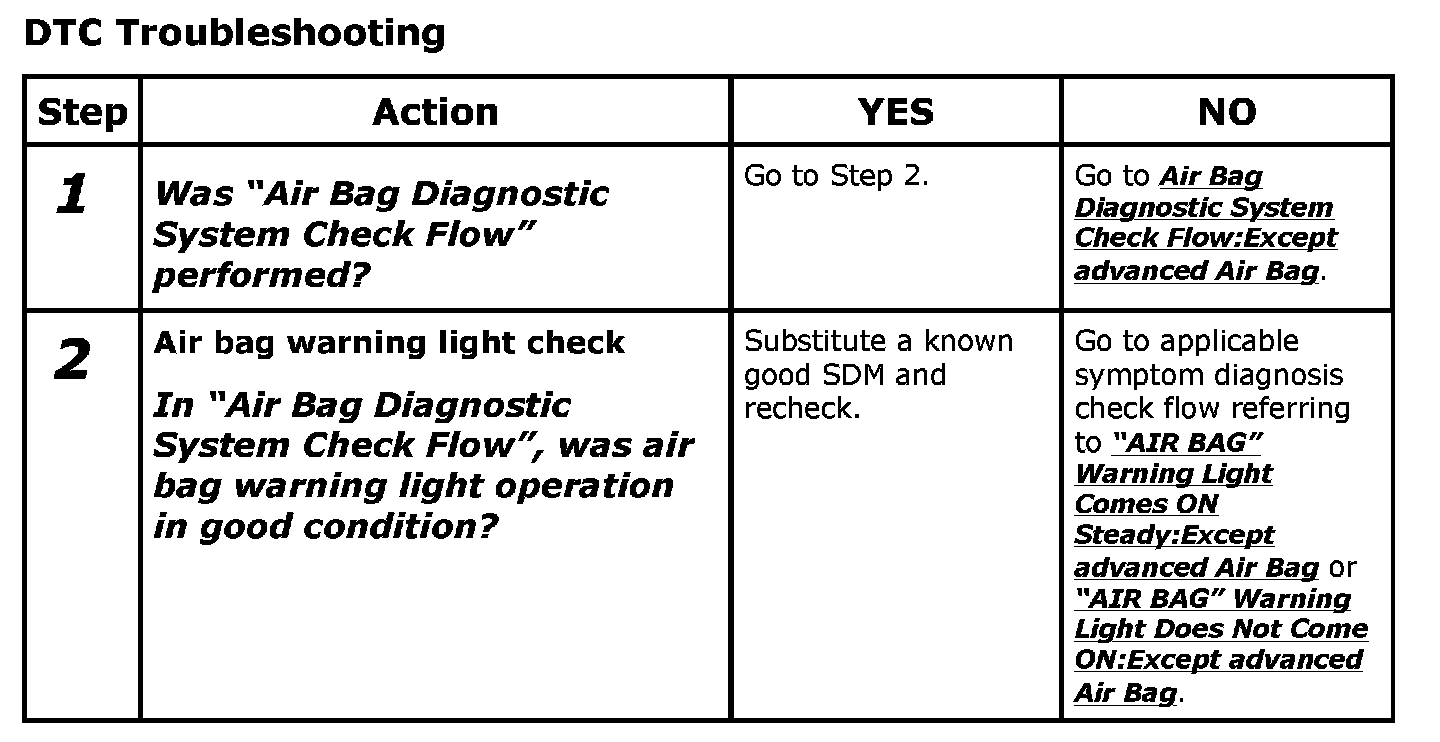

DTC Troubleshooting

Step 1-2:

NOTE:
Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs referring to DTC Clearance:Except advanced Air Bag, DTC Clearance if any.
- Repeat Air Bag Diagnostic System Check:Except advanced Air Bag Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
