Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Removal and Replacement >> Gear Shift and Select Shaft Assembly Components

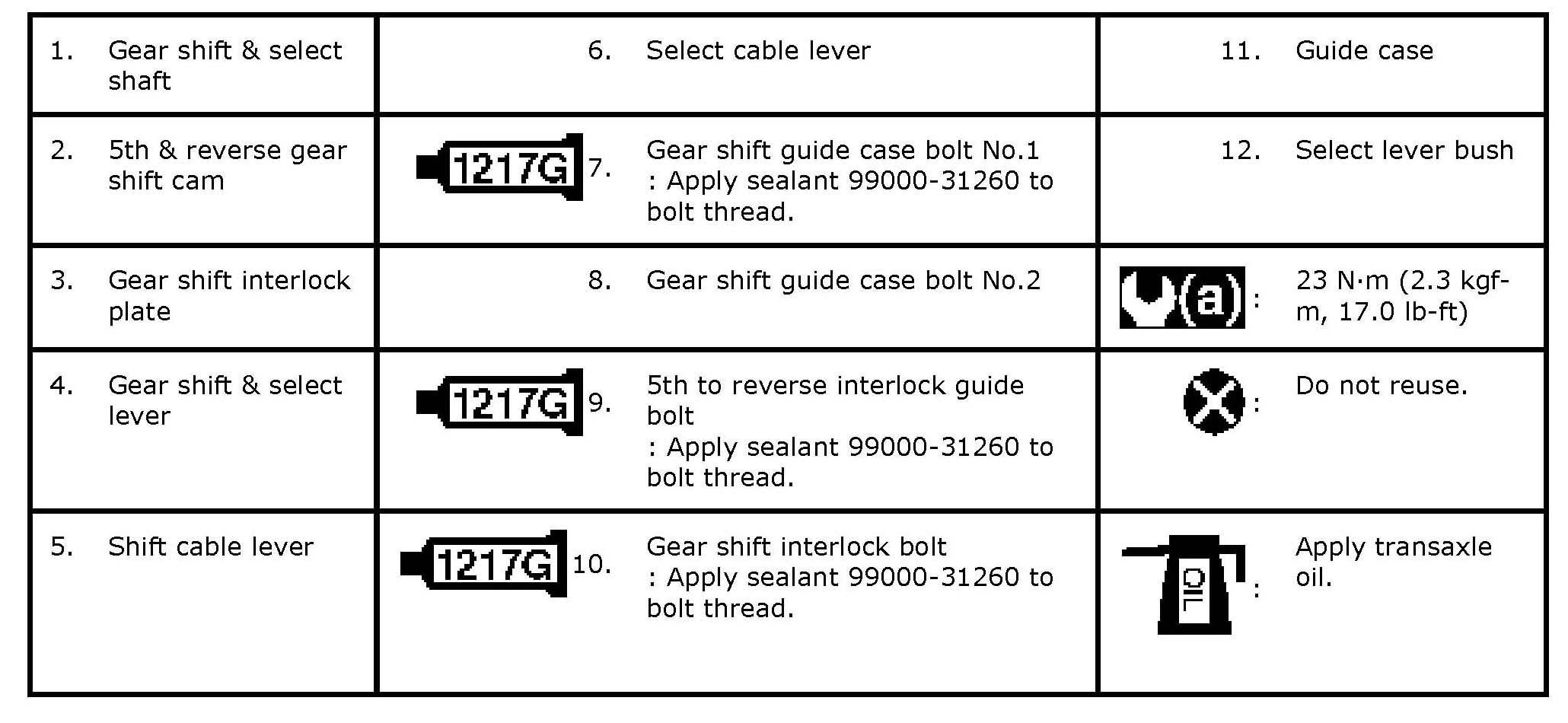

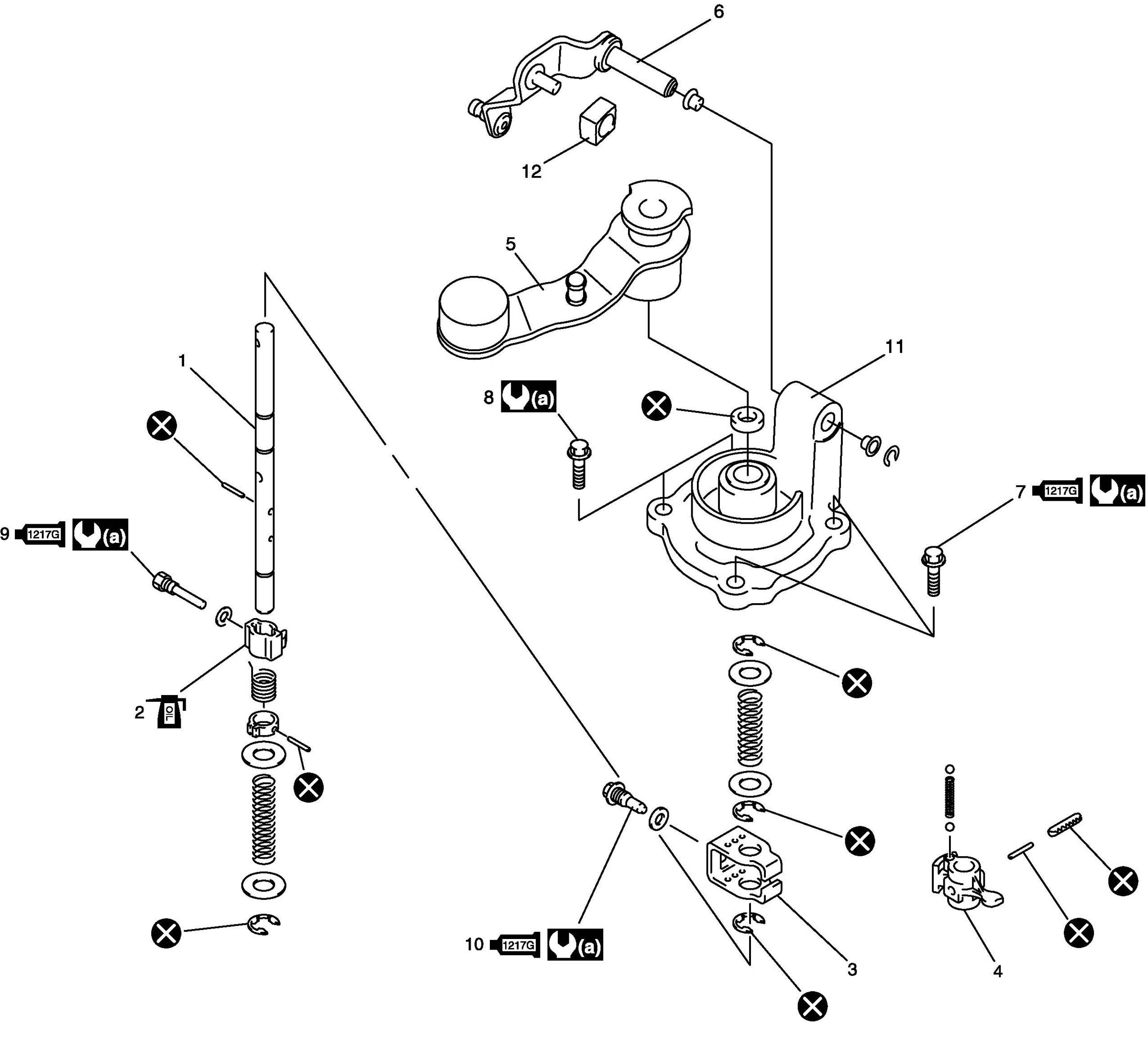

Gear Shift and Select Shaft Assembly Components

Gear Shift and Select Shaft Assembly Components
