Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Visual Inspection

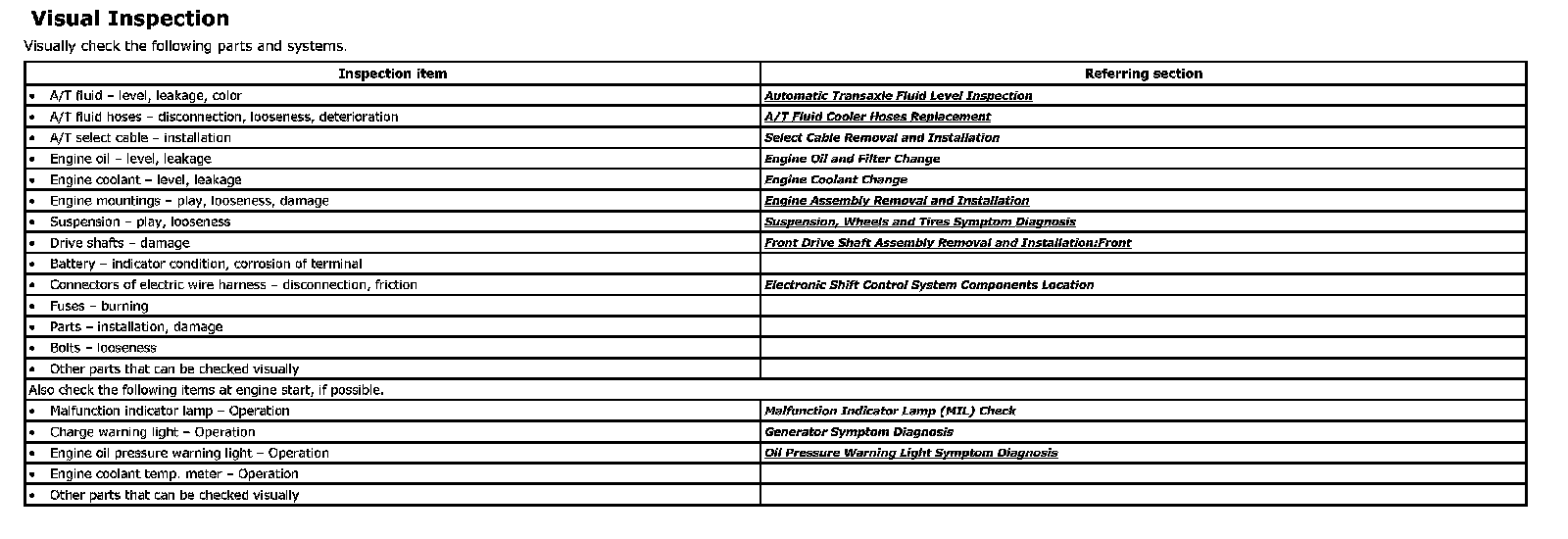

Visual Inspection

Visual Inspection
Visually check the following parts and systems.
