TCM Power and Ground Circuit Check

TCM Power and Ground Circuit Check

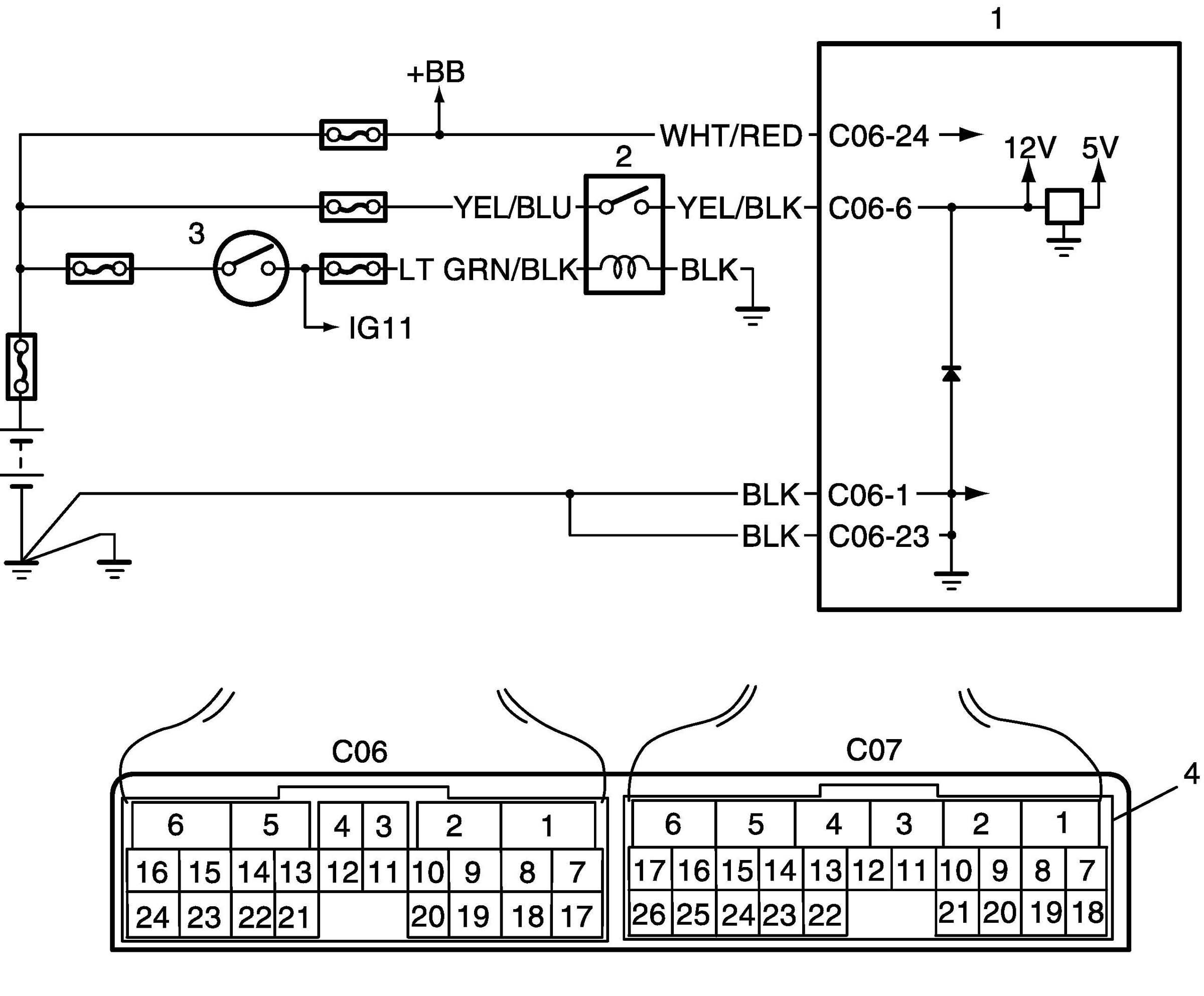

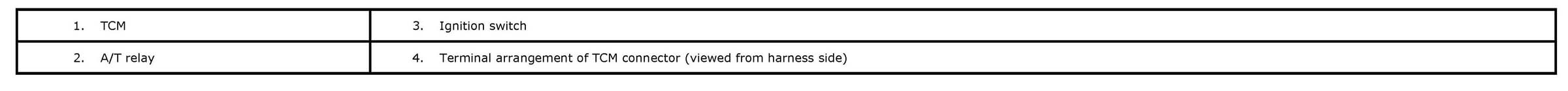

Wiring Diagram








Troubleshooting

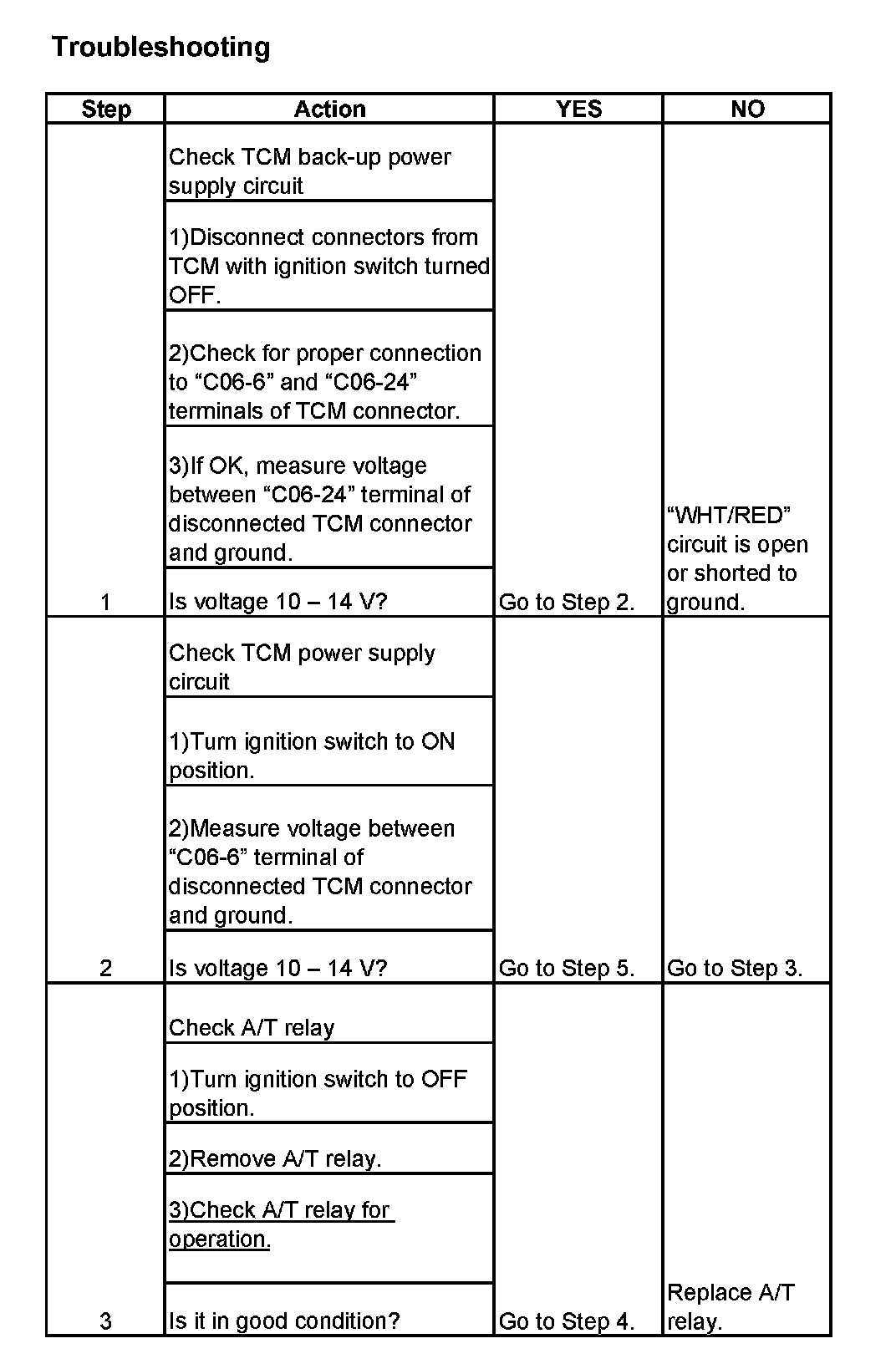

Step 1-3:

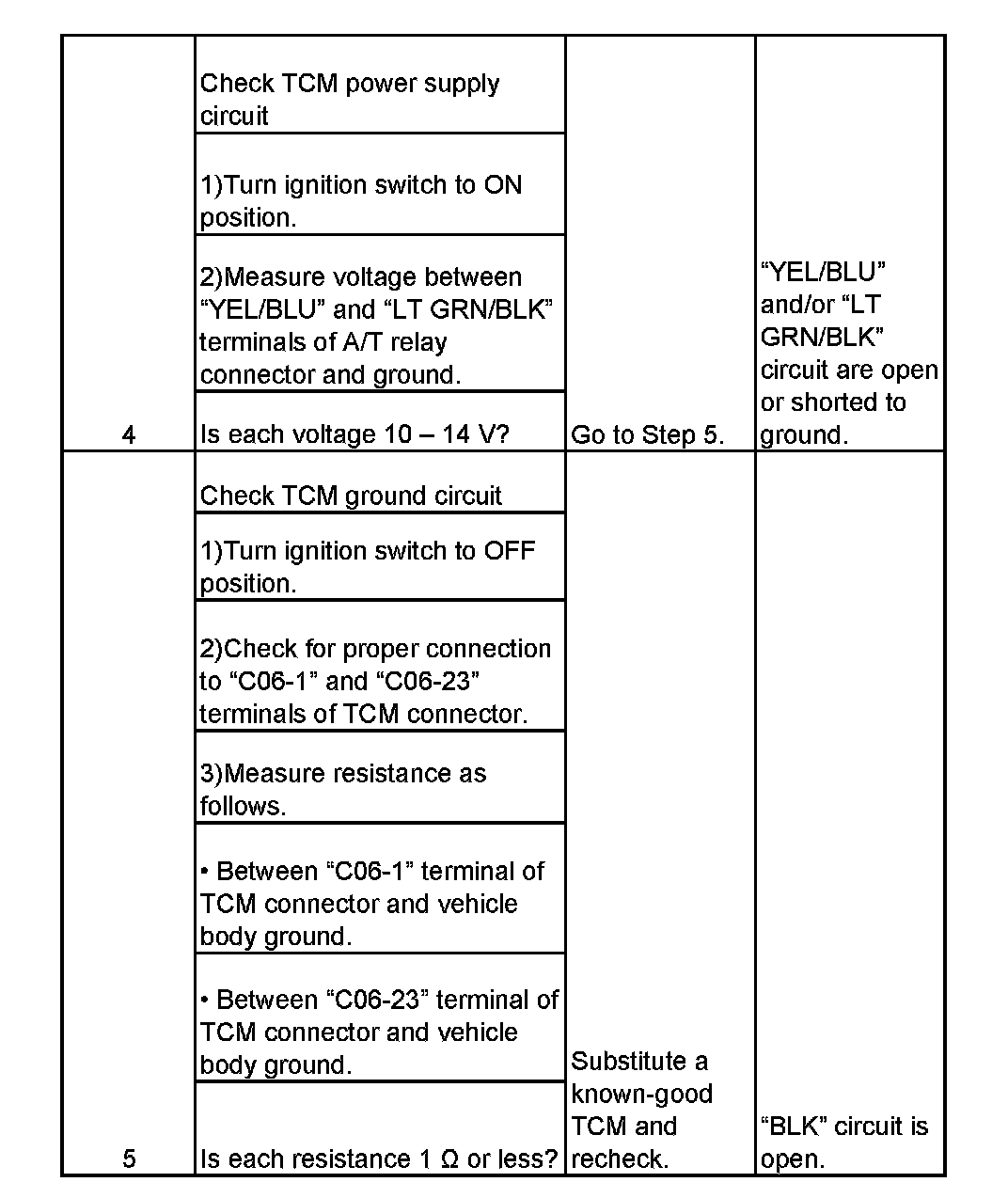

Step 4-5:
