Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Underdrive Clutch and One-Way No. 3 Clutch Components

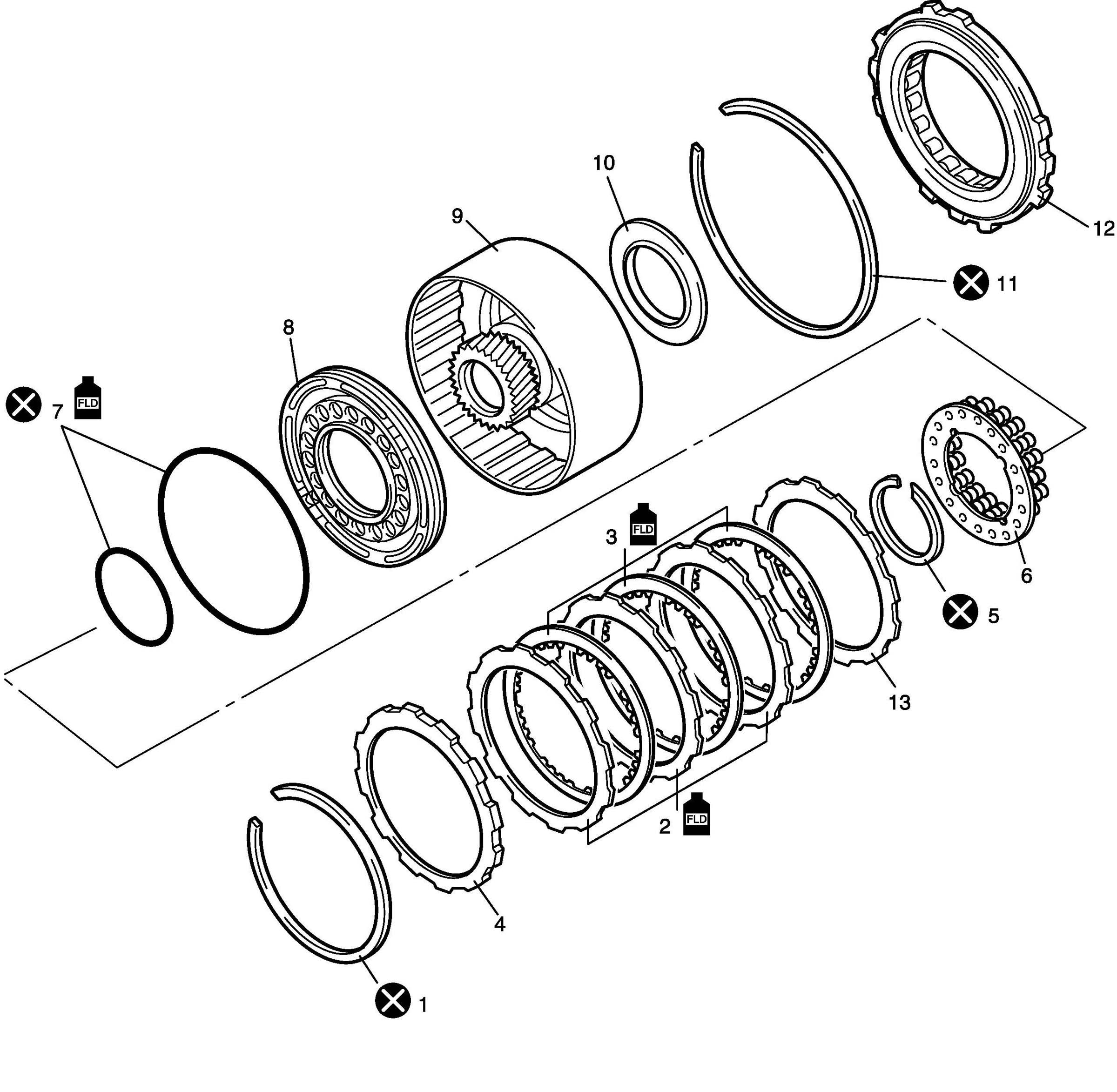

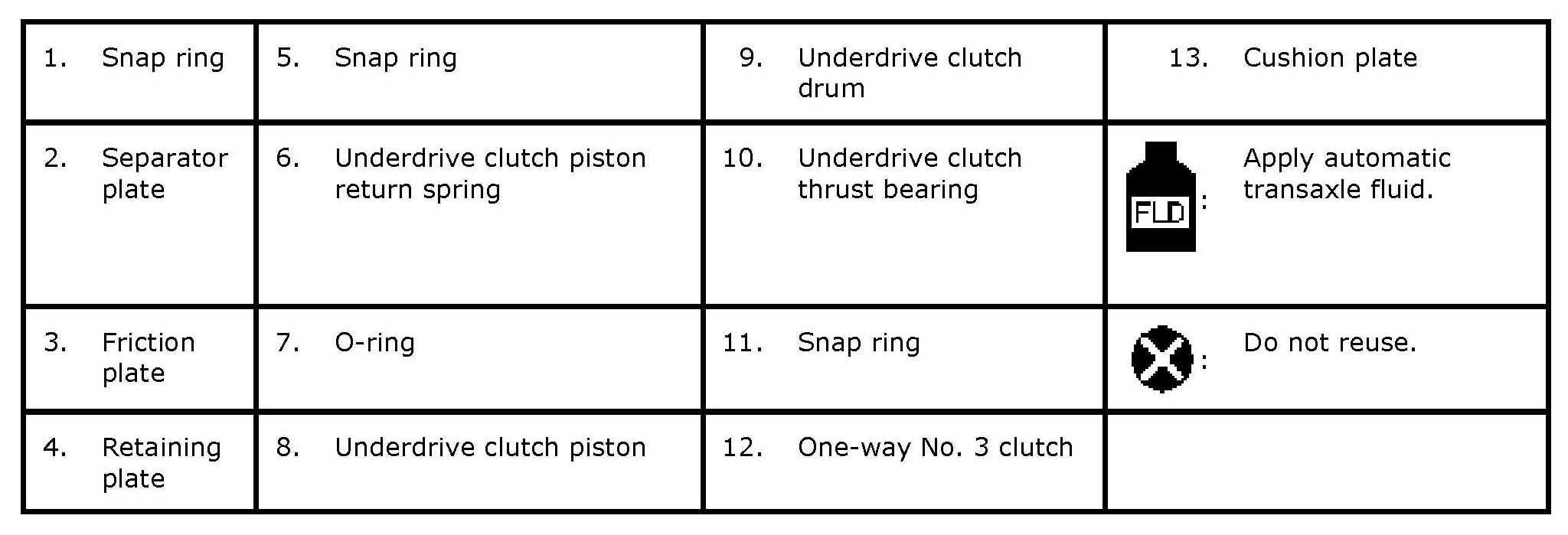

Underdrive Clutch and One-Way No. 3 Clutch Components

Underdrive Clutch and One-Way No. 3 Clutch Components
