2009
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
>>

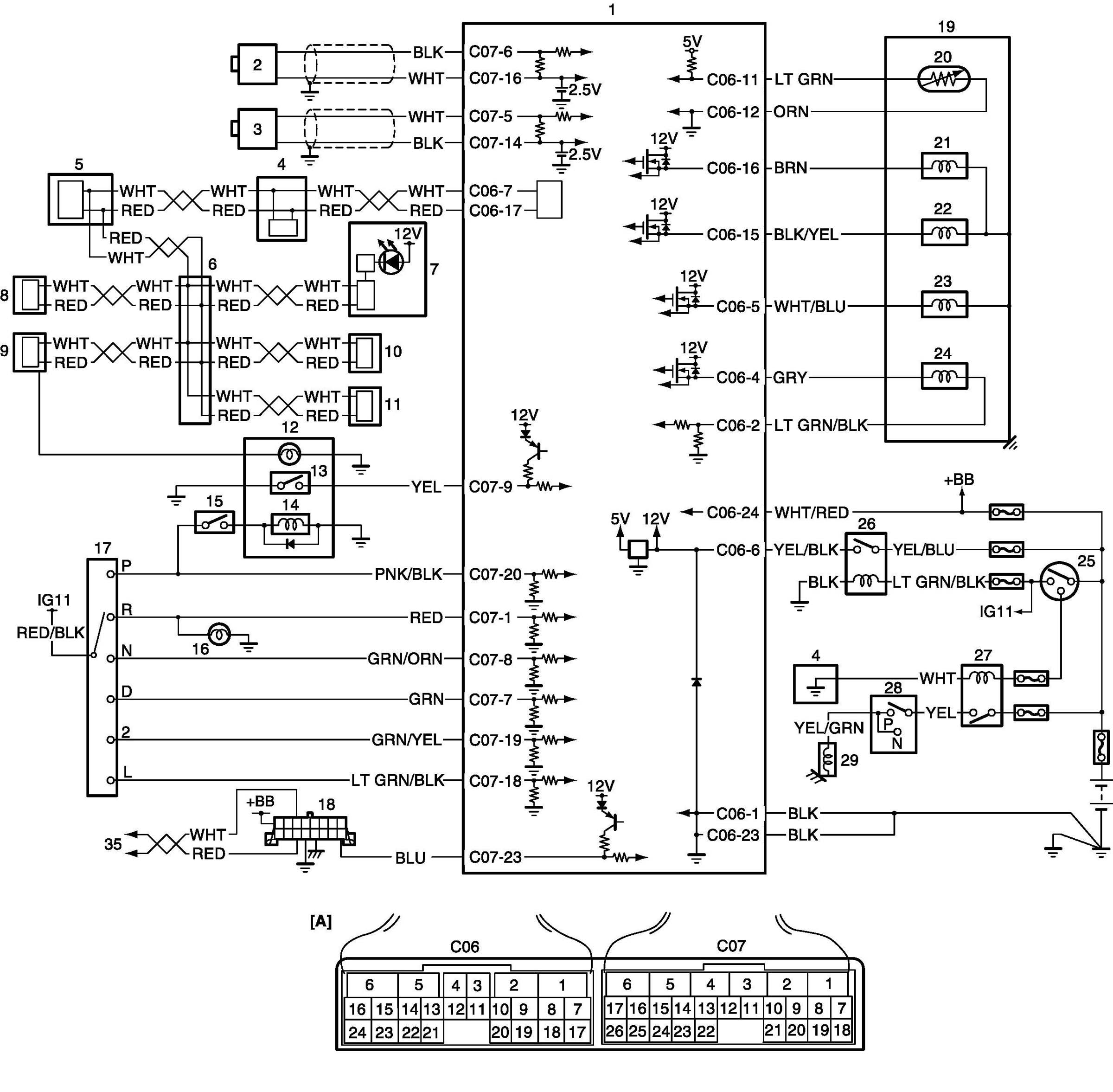

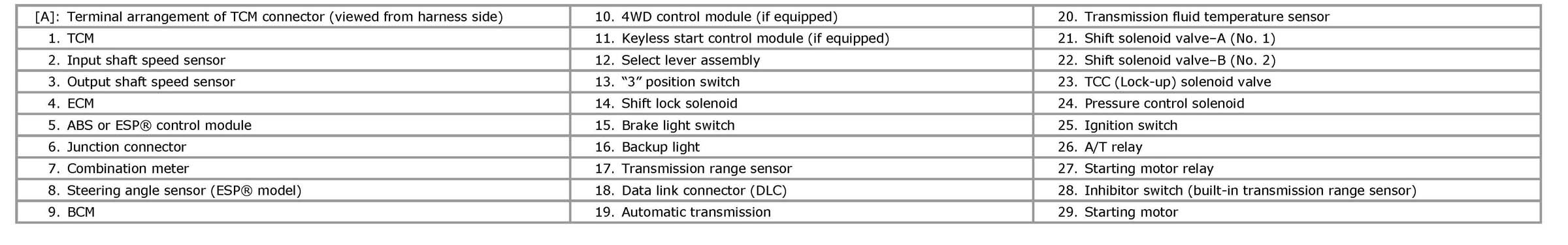

Transmission Control Module (TCM) Wiring Diagram
Transmission Control Module (TCM) Wiring Diagram
Transmission Control Module (TCM) Wiring Diagram

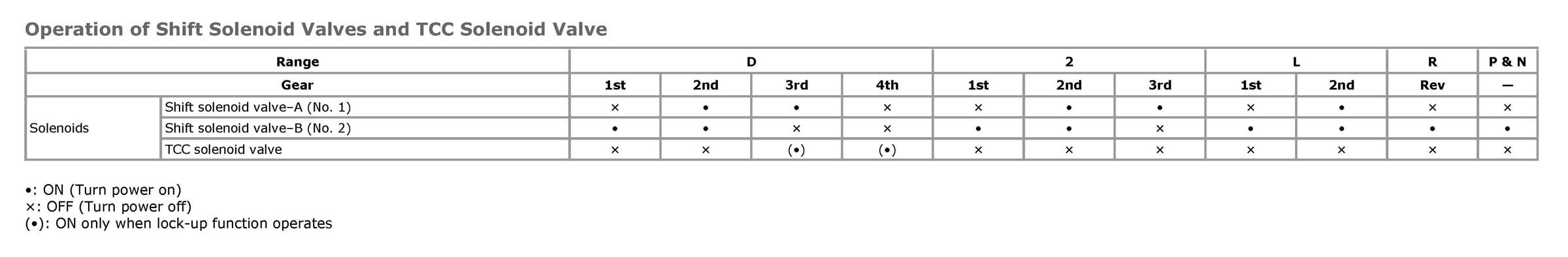

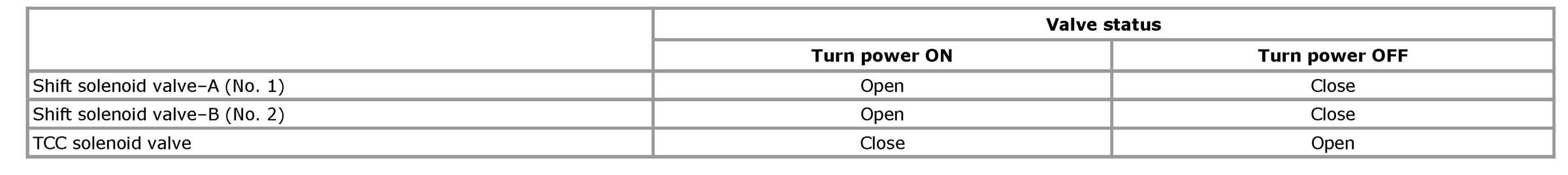

Operation of Shift Solenoid Valves and TCC Solenoid Valve
