P/S Control Module Power Supply and Ground Circuit Check
P/S Control Module Power Supply and Ground Circuit Check
P/S Control Module Power Supply and Ground Circuit Check

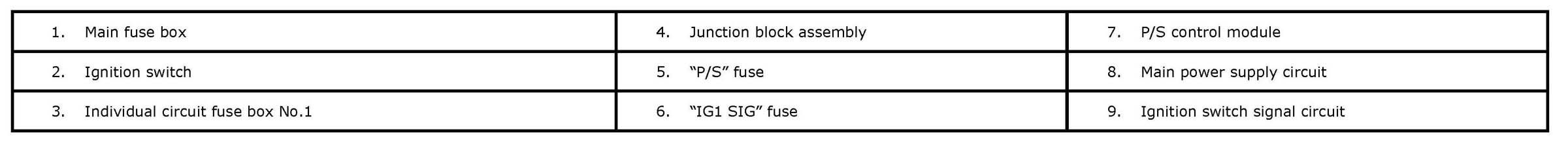

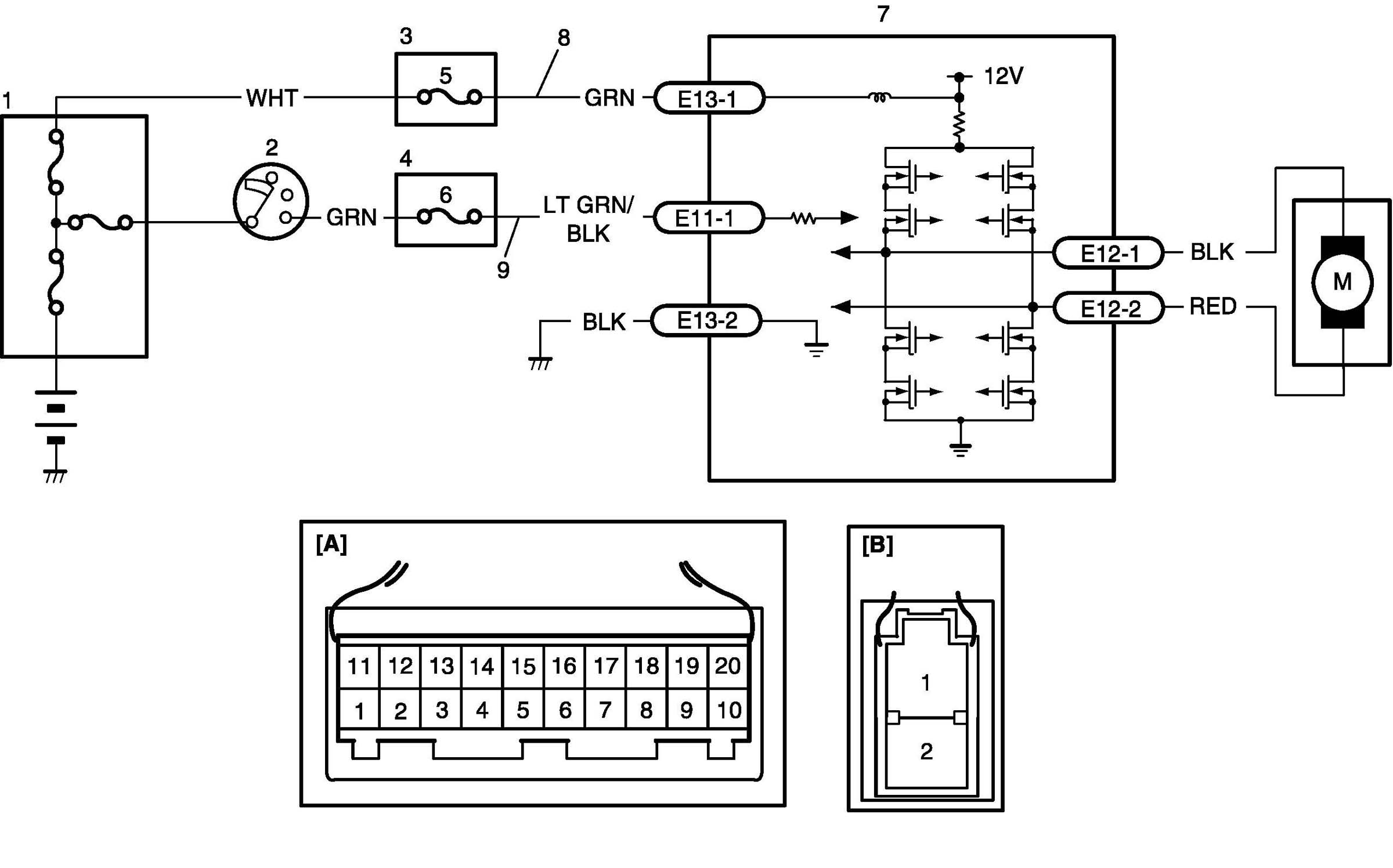

Wiring Diagram

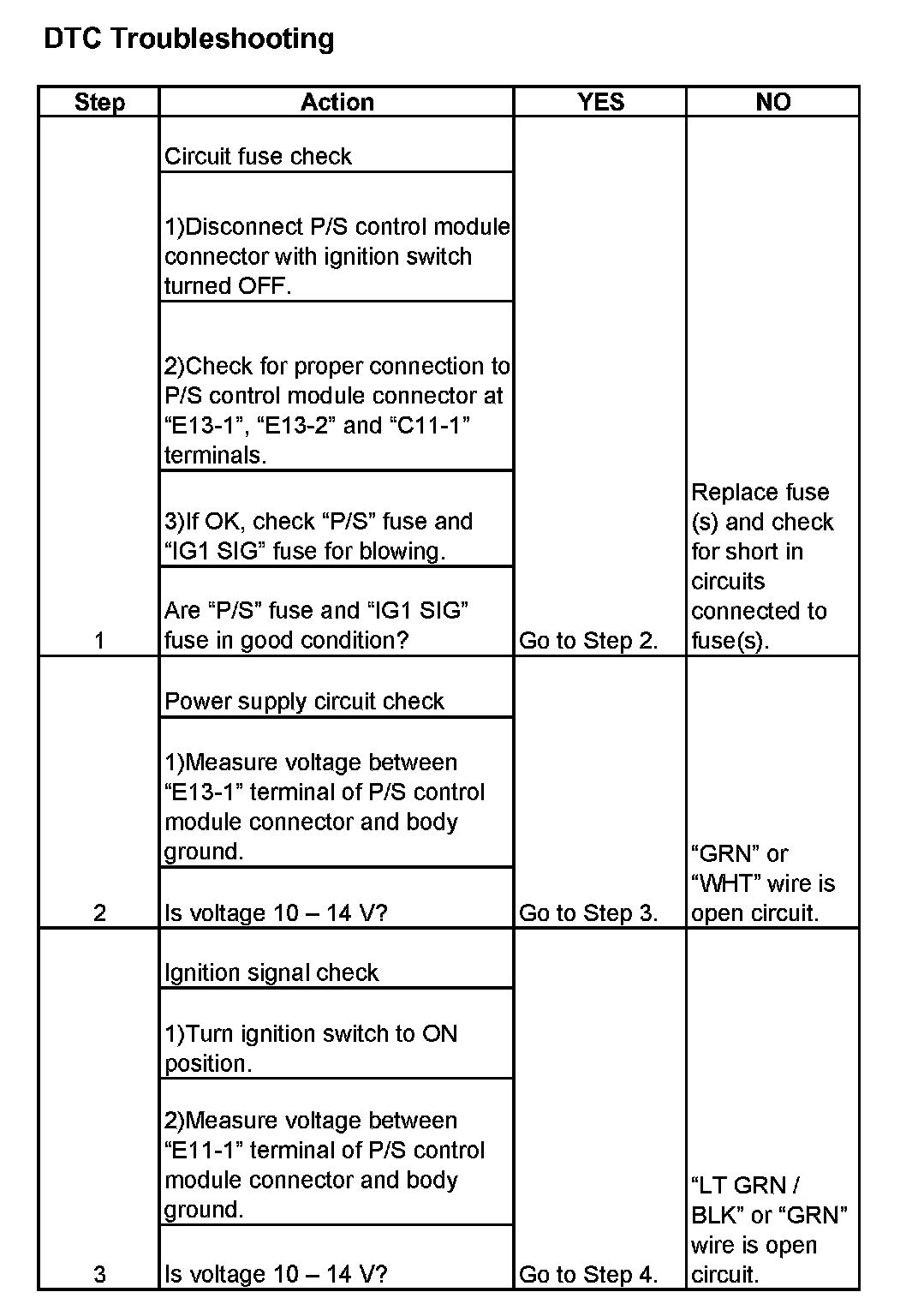

DTC Troubleshooting
Step 1-3:
Step 4-5:
