Suzuki
>>
2009
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Keyless Starting System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Keyless Start Control Module Power and Ground Circuit Check
Keyless Start Control Module Power and Ground Circuit Check
Keyless Start Control Module
Power and Ground Circuit Check

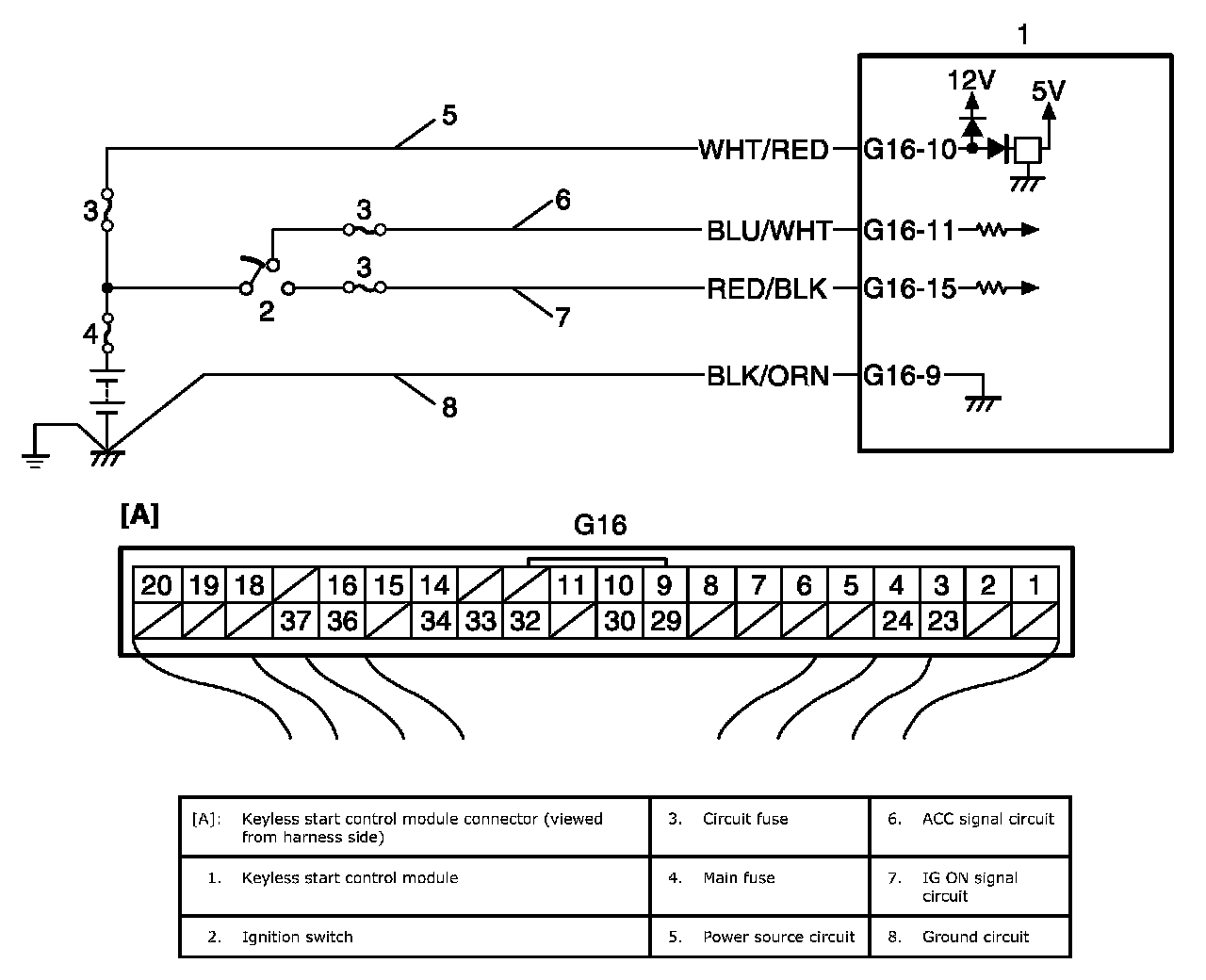

Wiring Diagram
Wiring Diagram:
Troubleshooting

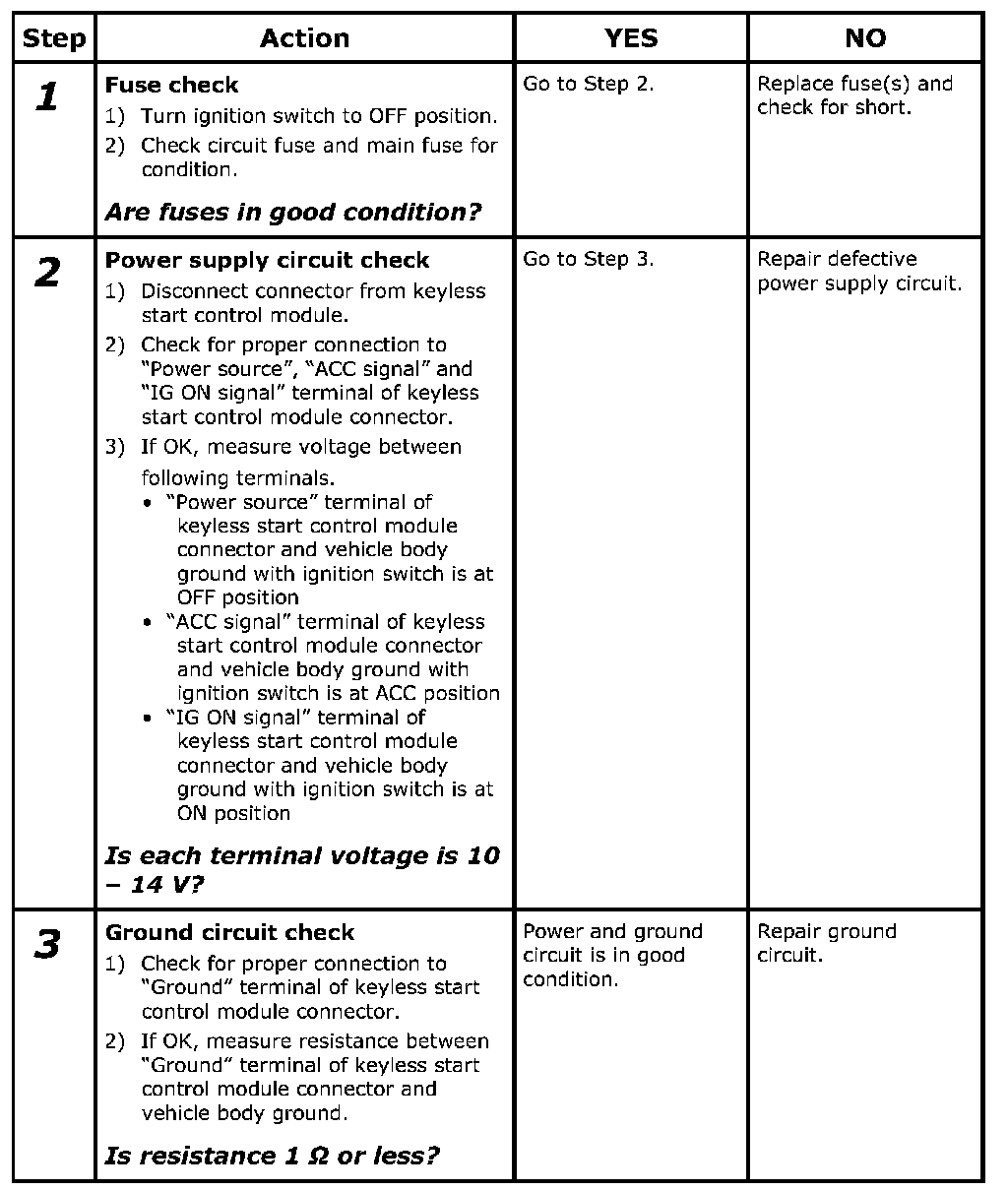

Step 1-3:
