Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Wiring Harness >> Service and Repair >> Procedures >> Around Battery

Around Battery

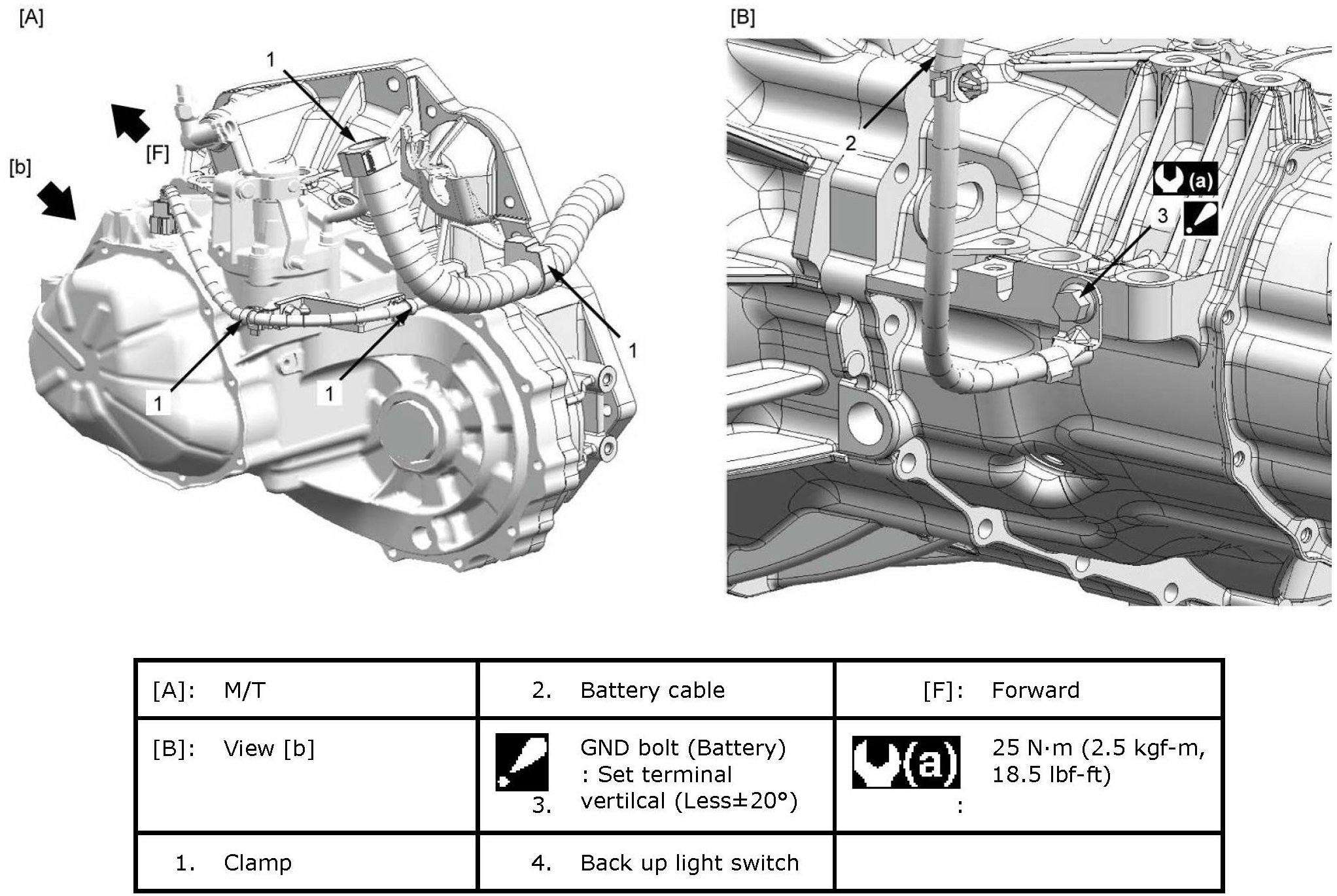

Around Battery (Part 1):

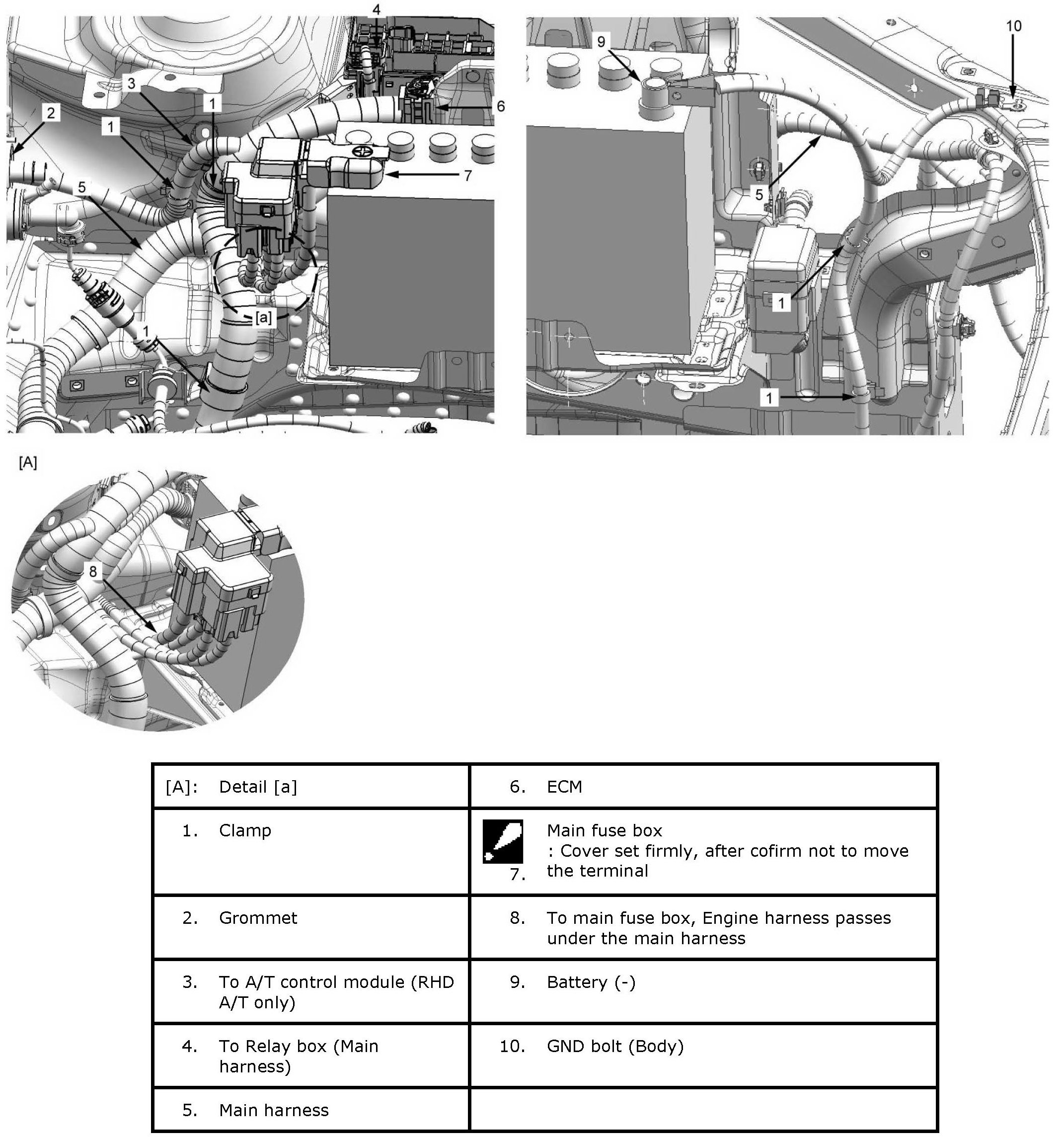

Around Battery (Part 2):
