Advanced Air Bag

SDM Power Supply and Ground Circuit Check

Wiring Diagram

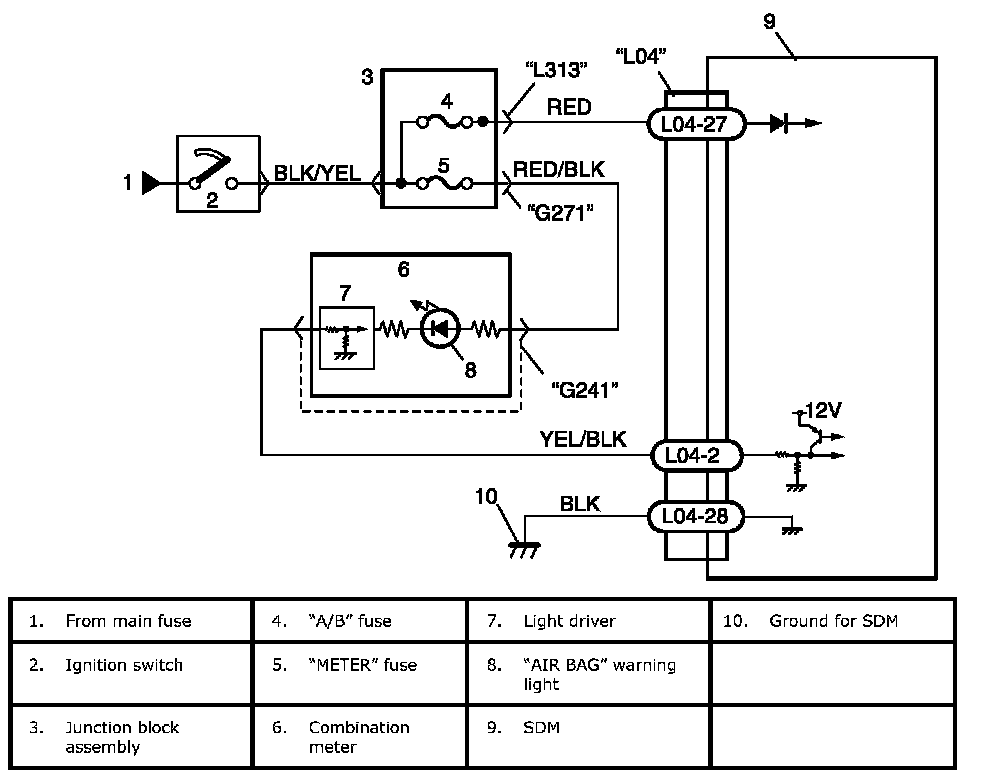

Wiring Diagram:





Troubleshooting

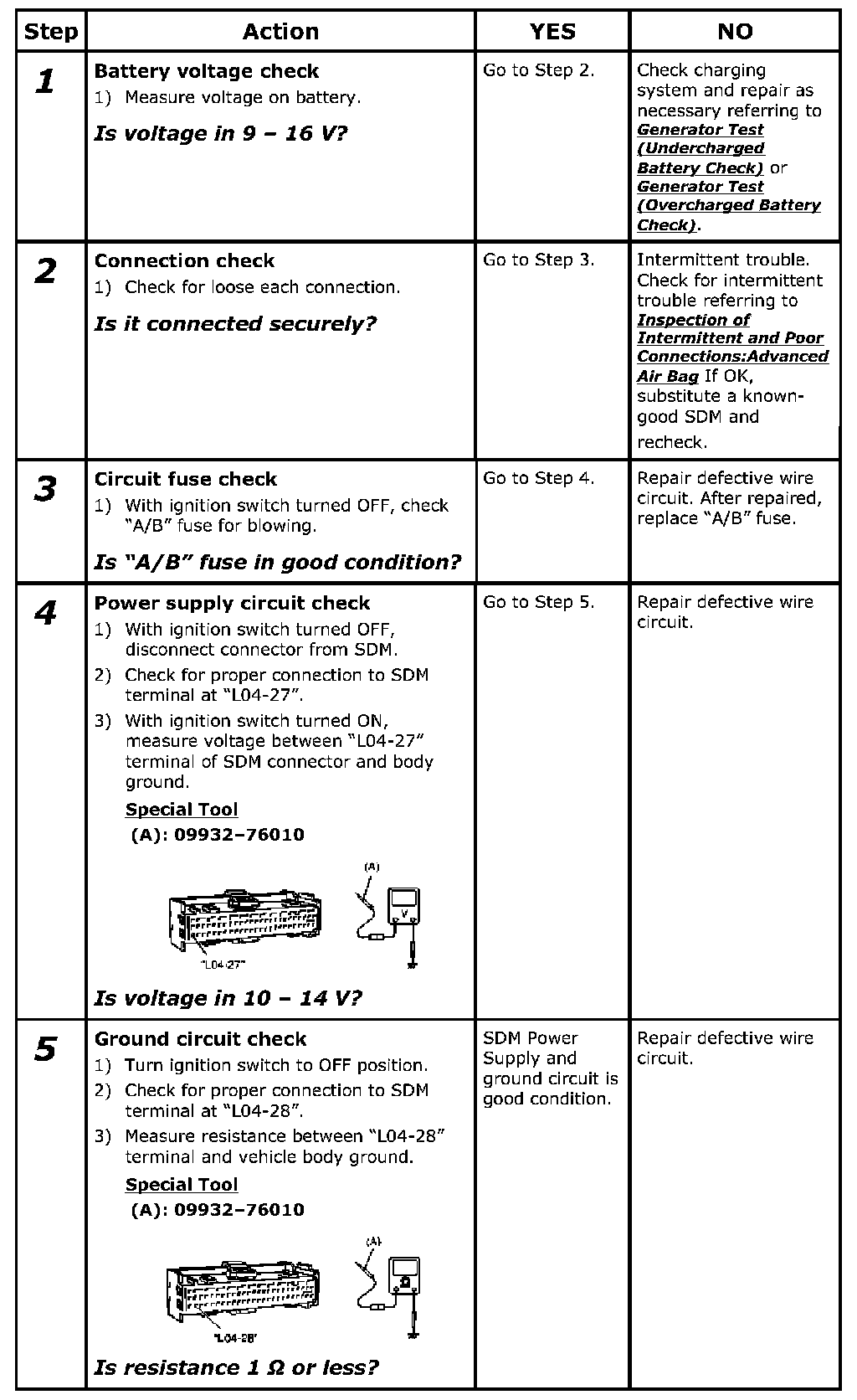

Step 1-5:
