OBD System Description - Comprehensive Component Circuit Monitor

OBD System Description - Comprehensive Component Circuit Monitor

Monitoring Procedure
Input signal of transmission range sensor (P0707), transmission fluid temperature sensor (P0712, P0713), pressure control solenoid valve (P0962, P0963), shift solenoid valve (P0973, P0974, P0976, P0977), "3" position switch (P1723) and TCC lock-up solenoid valve (P2763, P2764) are checked for open, short of circuit by monitoring input voltage.

DTC Description / Detecting Condition / Confirmation Procedure

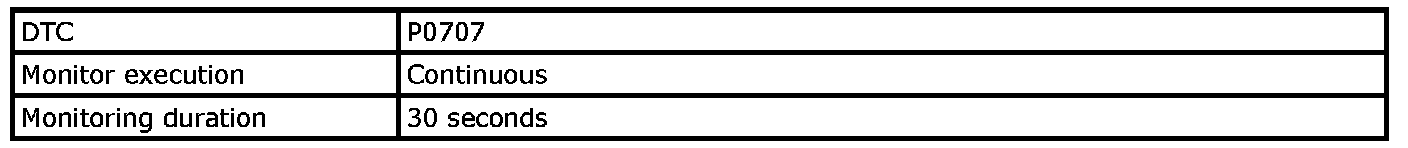

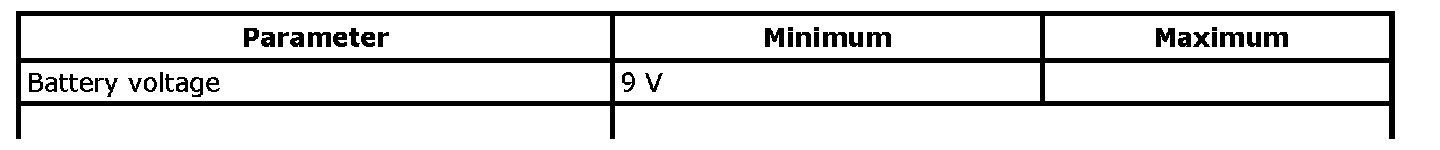

P0707
Refer to DTC P0707. Transmission Range Sensor Circuit Low. P0707

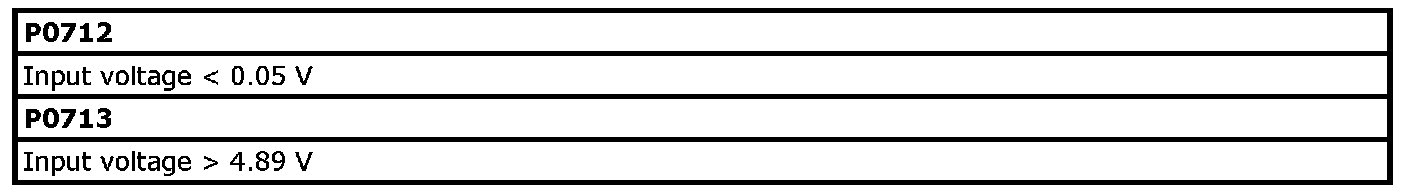

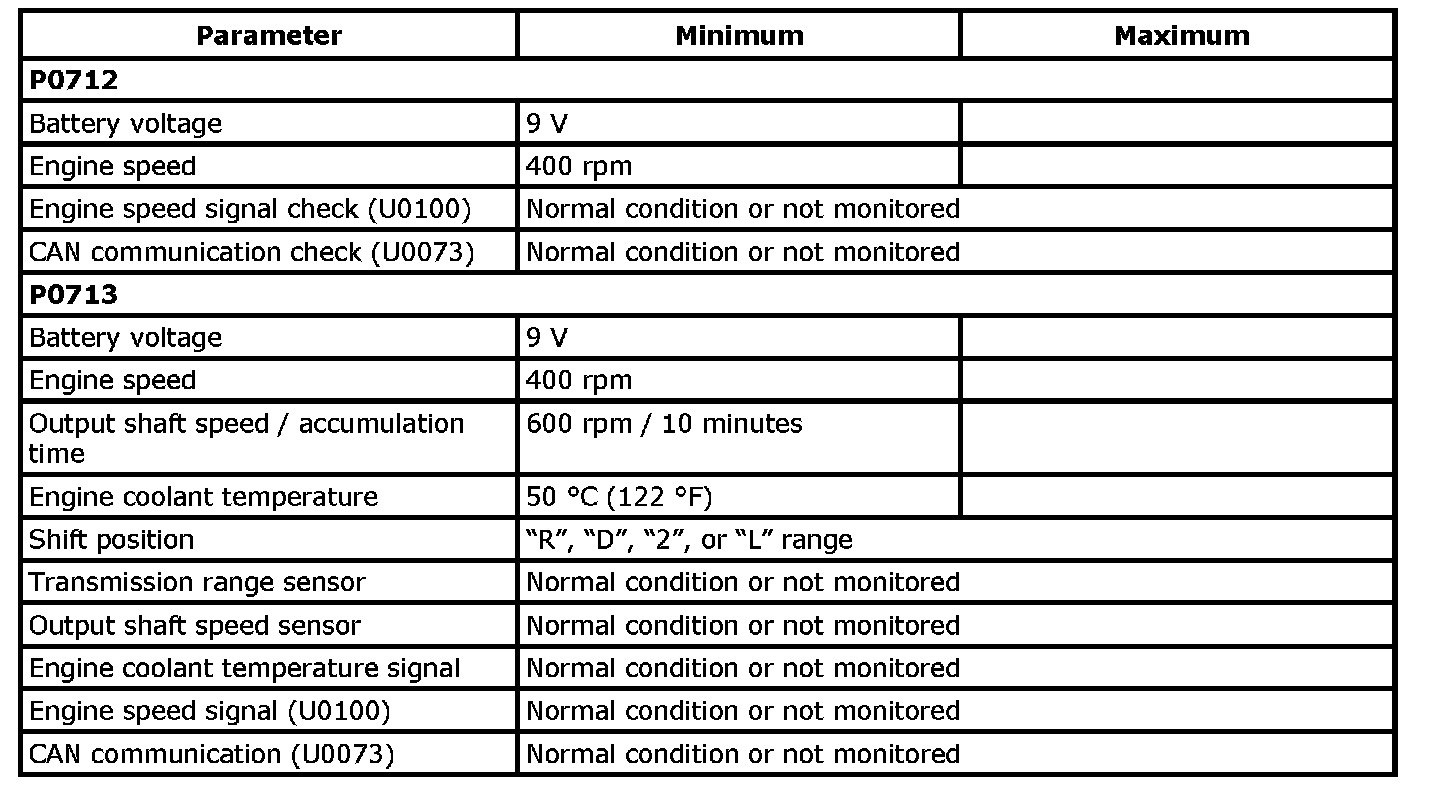

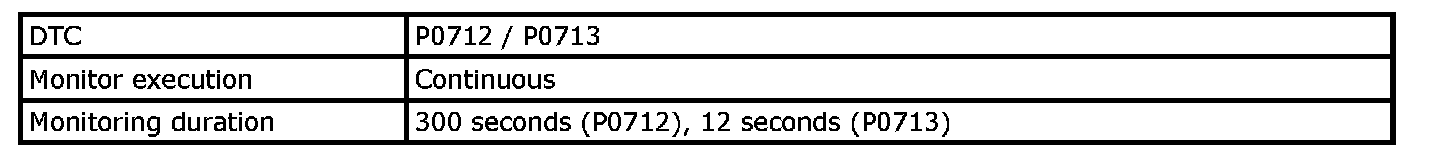

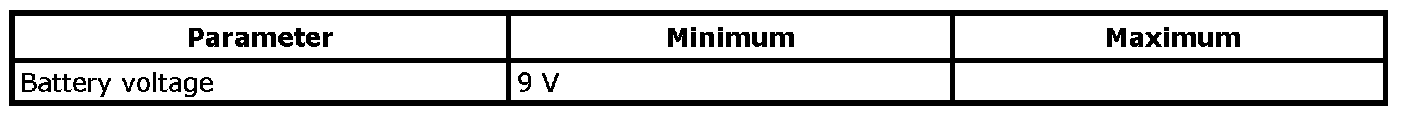

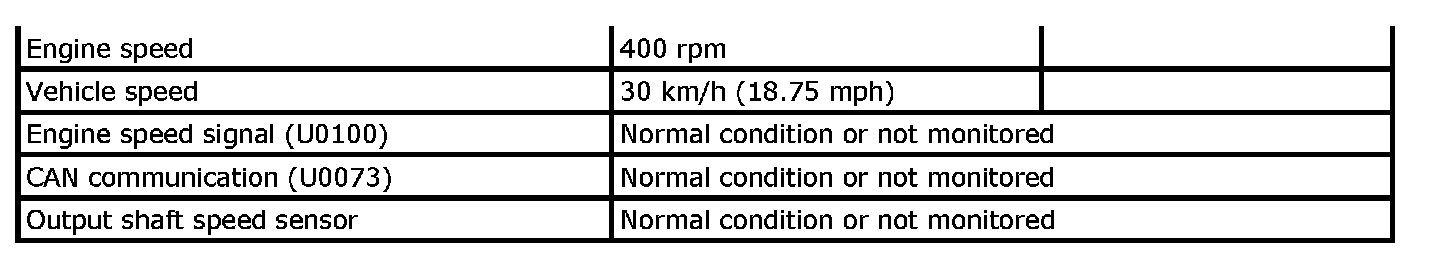

P0712
Refer to DTC P0712: Transmission Fluid Temperature Sensor "A" Circuit Low. P0712

P0713
Refer to DTC P0713: Transmission Fluid Temperature Sensor "A" Circuit High. P0713

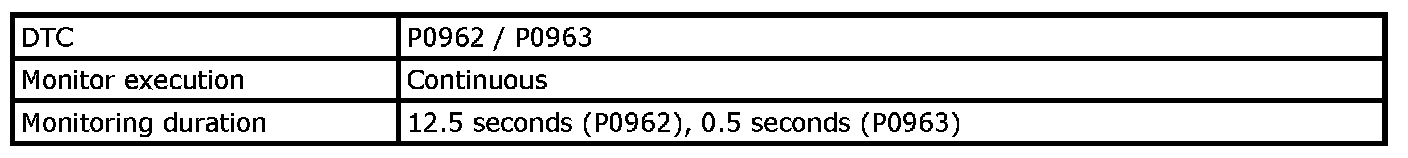

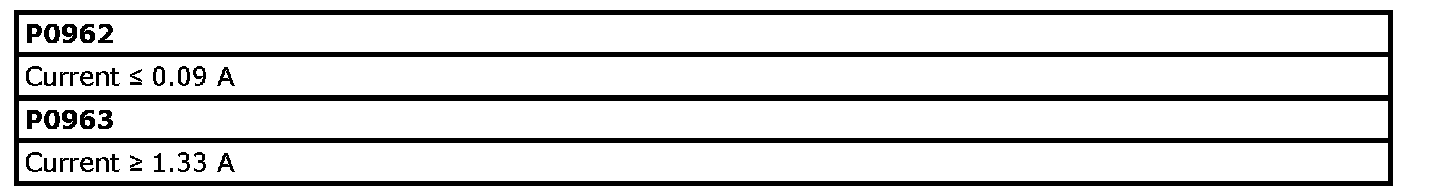

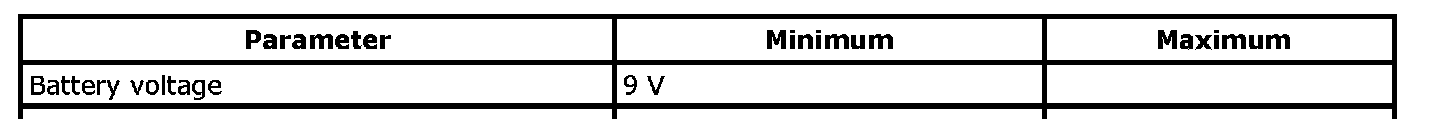

P0962
Refer to DTC P0962: Pressure Control Solenoid "A" Control Circuit Low. P0962

P0963
Refer to DTC P0963: Pressure Control Solenoid "A" Control Circuit High. P0963

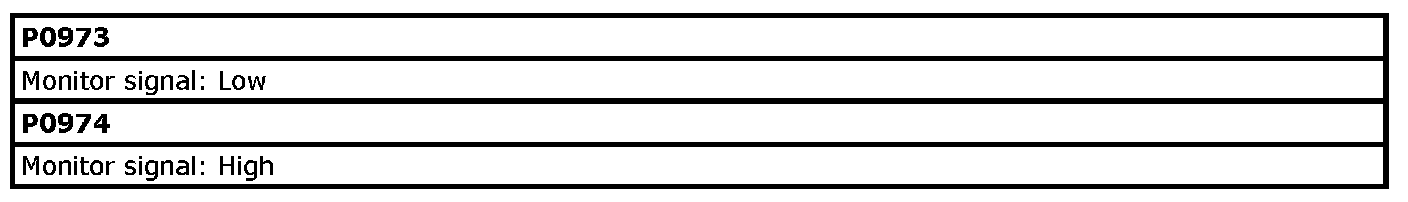

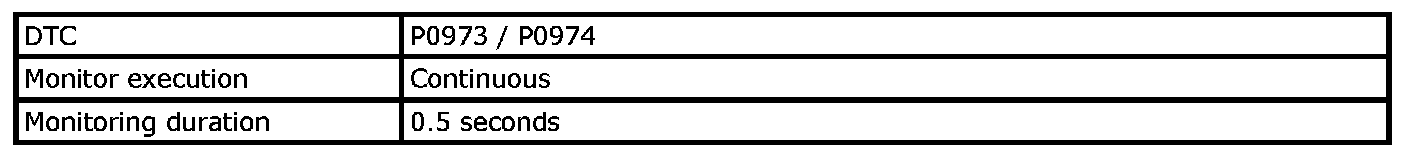

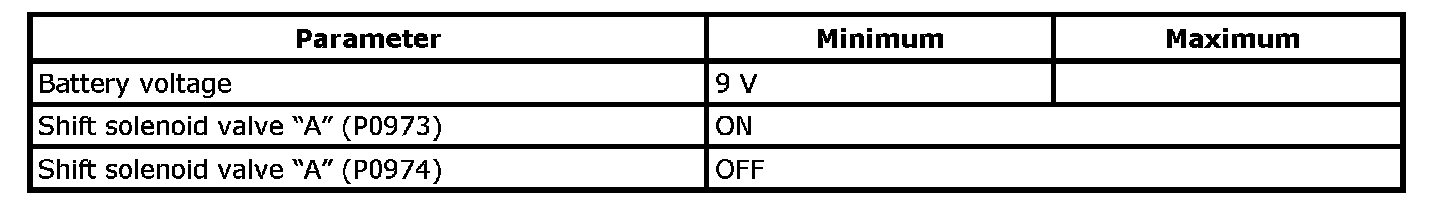

P0973
Refer to DTC P0973 P0976: Shift Solenoid "A" Control Circuit Low Shift Solenoid "B" Control Circuit Low. P0973

P0974
Refer to DTC P0974 P0977. Shift Solenoid "A" Control Circuit High Shift Solenoid "B" Control Circuit High. P0974

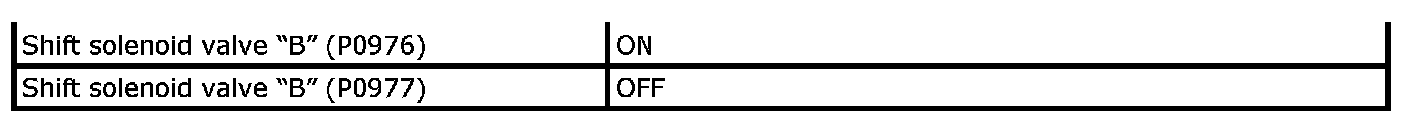

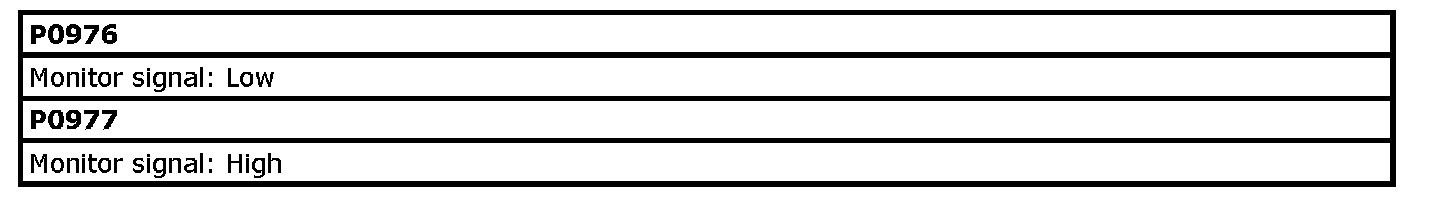

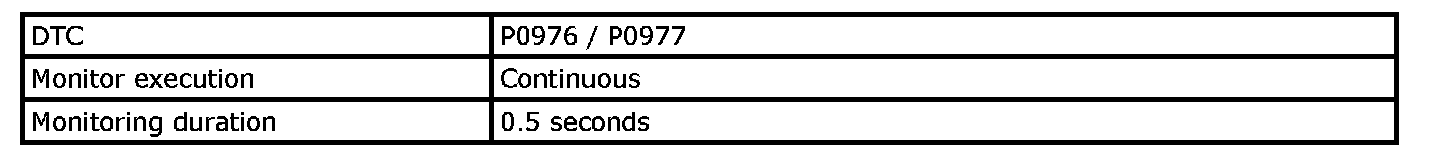

P0976
Refer to DTC P0973 P0976: Shift Solenoid "A" Control Circuit Low Shift Solenoid "B" Control Circuit Low. P0976

P0977
Refer to DTC P0974 P0977. Shift Solenoid "A" Control Circuit High Shift Solenoid "B" Control Circuit High. P0977

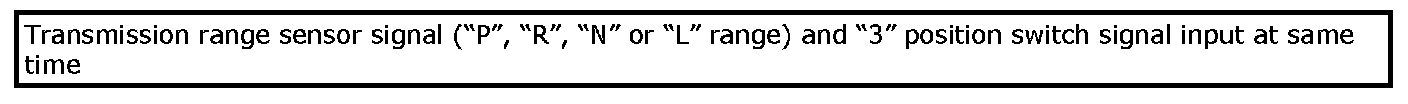

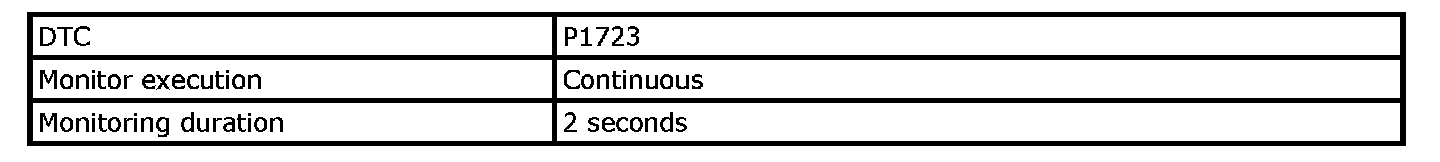

P1723
Refer to DTC P1723: Range select switch malfunction. P1723

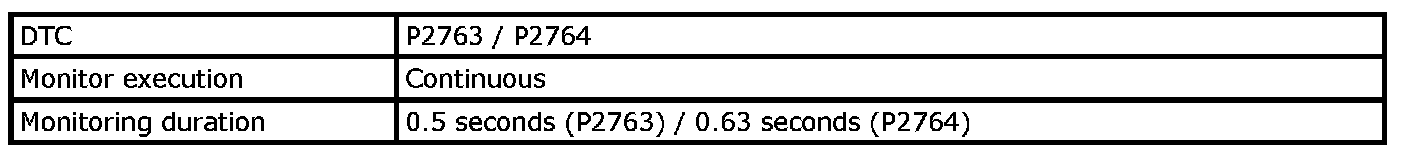

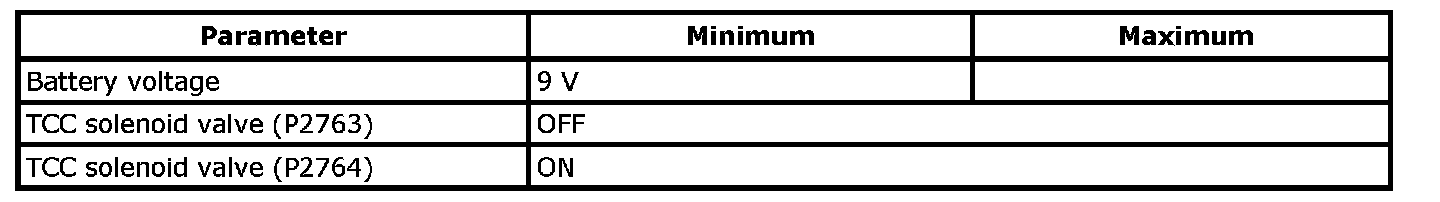

P2763
Refer to DTC P2763: Torque Converter Clutch Pressure Control Solenoid Control Circuit High. P2763

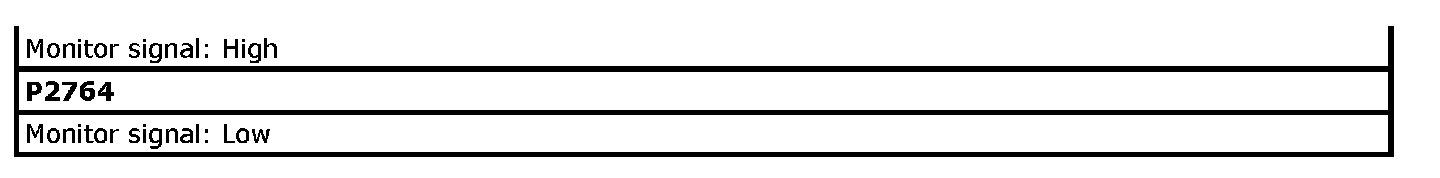

P2764
Refer to DTC P2764: Torque Converter Clutch Pressure Control Solenoid Control Circuit Low. P2764

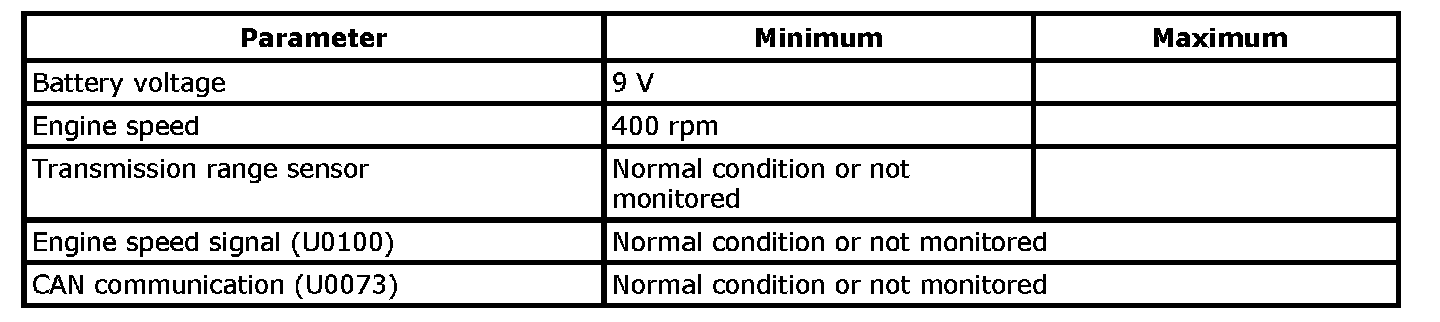

Transmission Range Sensor Circuit Monitor

Monitoring procedure
Input signal of transmission range sensor is checked for open, short of circuit by monitoring input voltage.

Operation
