Mode 6 Data
Mode 6 Data
MODE $06 Diagnostic Description

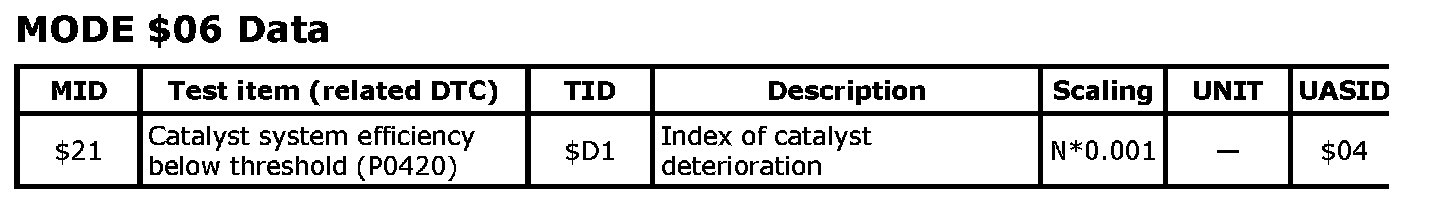

Catalyst Monitor:

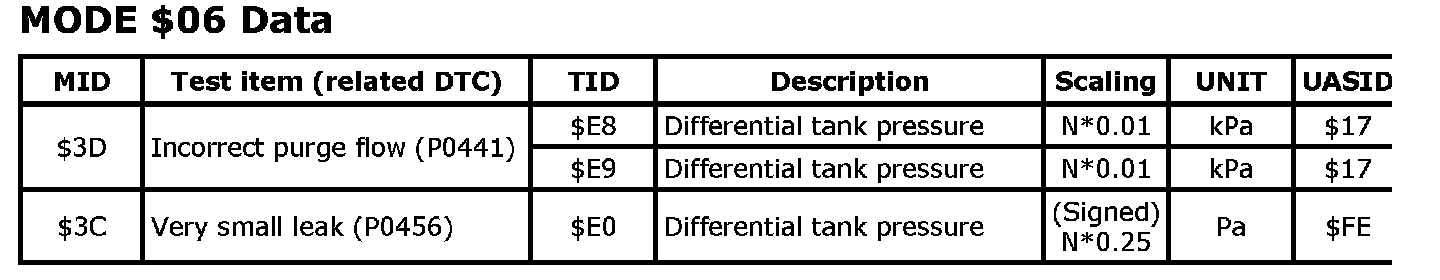

EVAP Monitor:

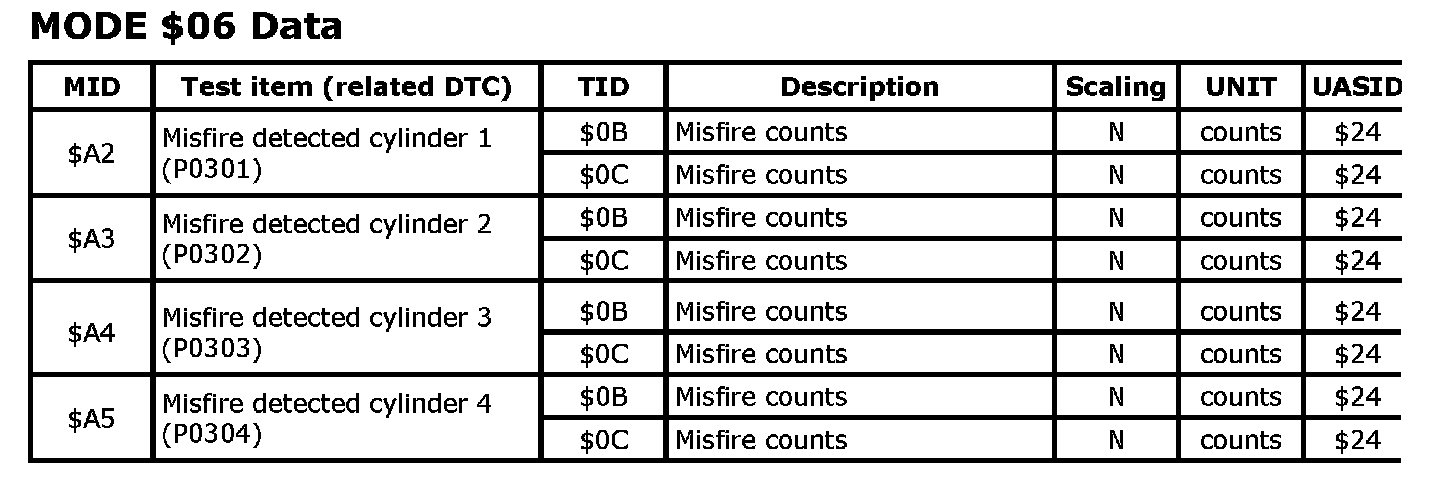

Misfire Monitor:

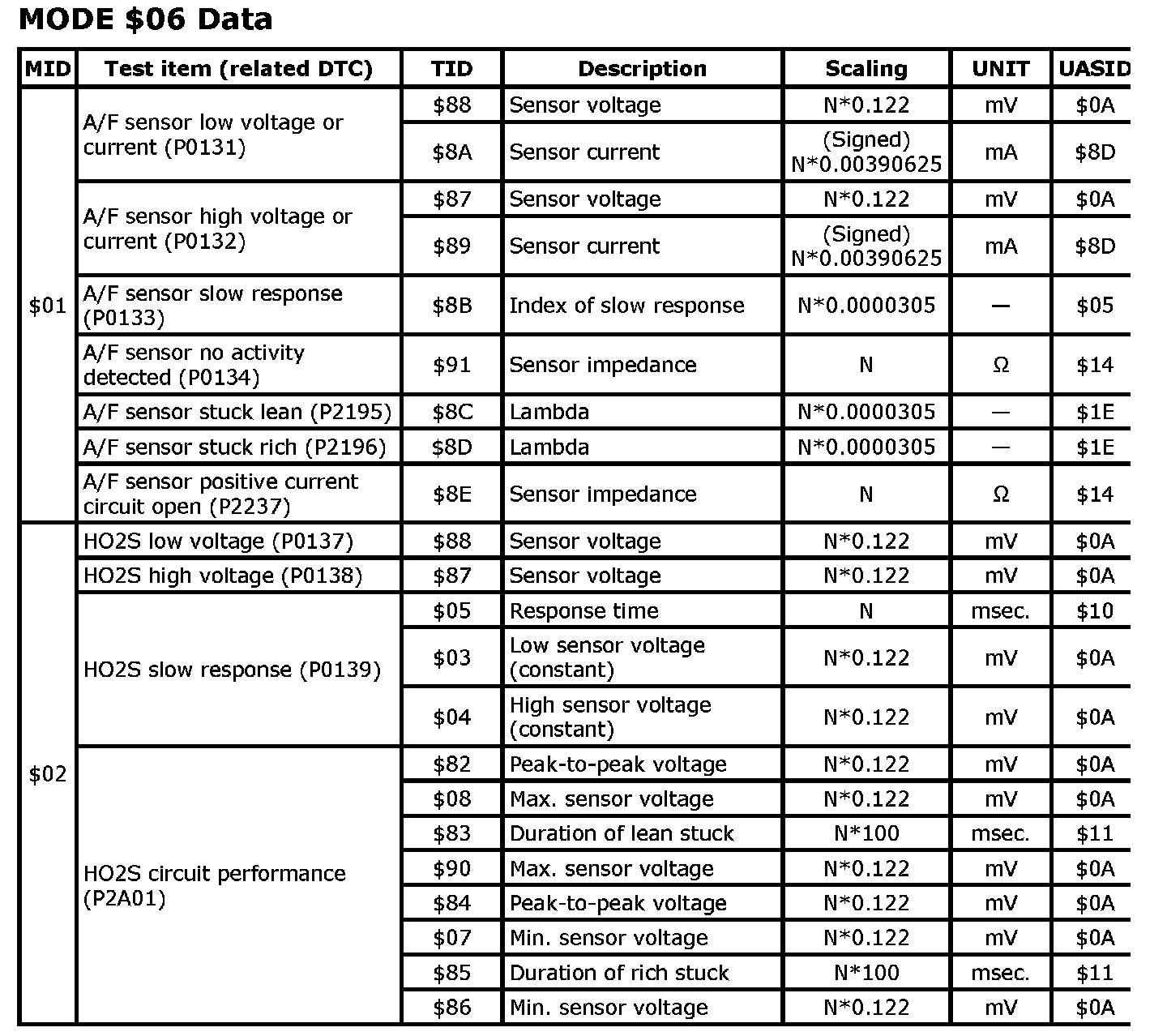

A/F Sensor Monitor:

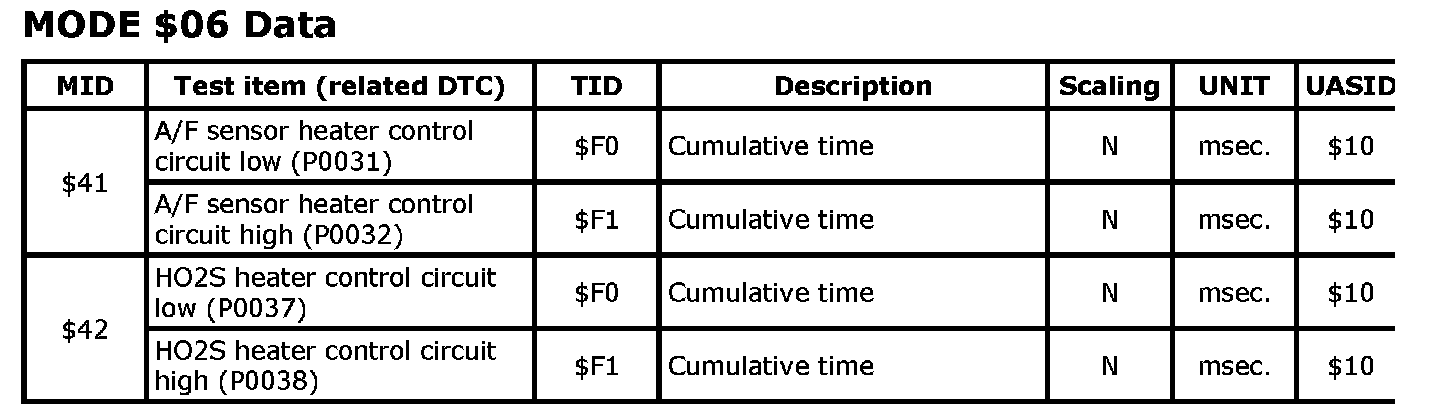

A/F Sensor Heater Monitor:
