Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Engine and Emission Control System Check

Engine and Emission Control System Check

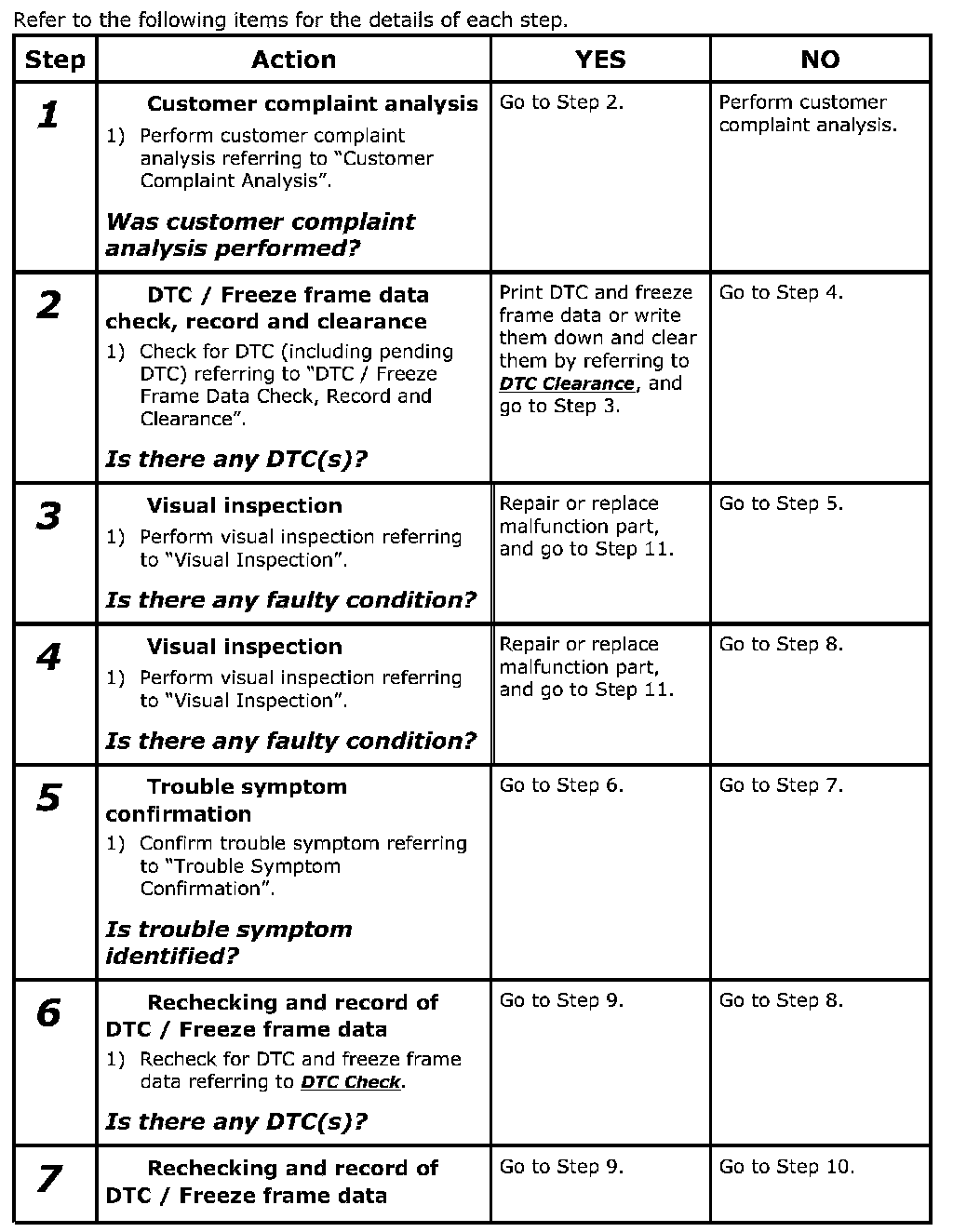

Step 1-7:

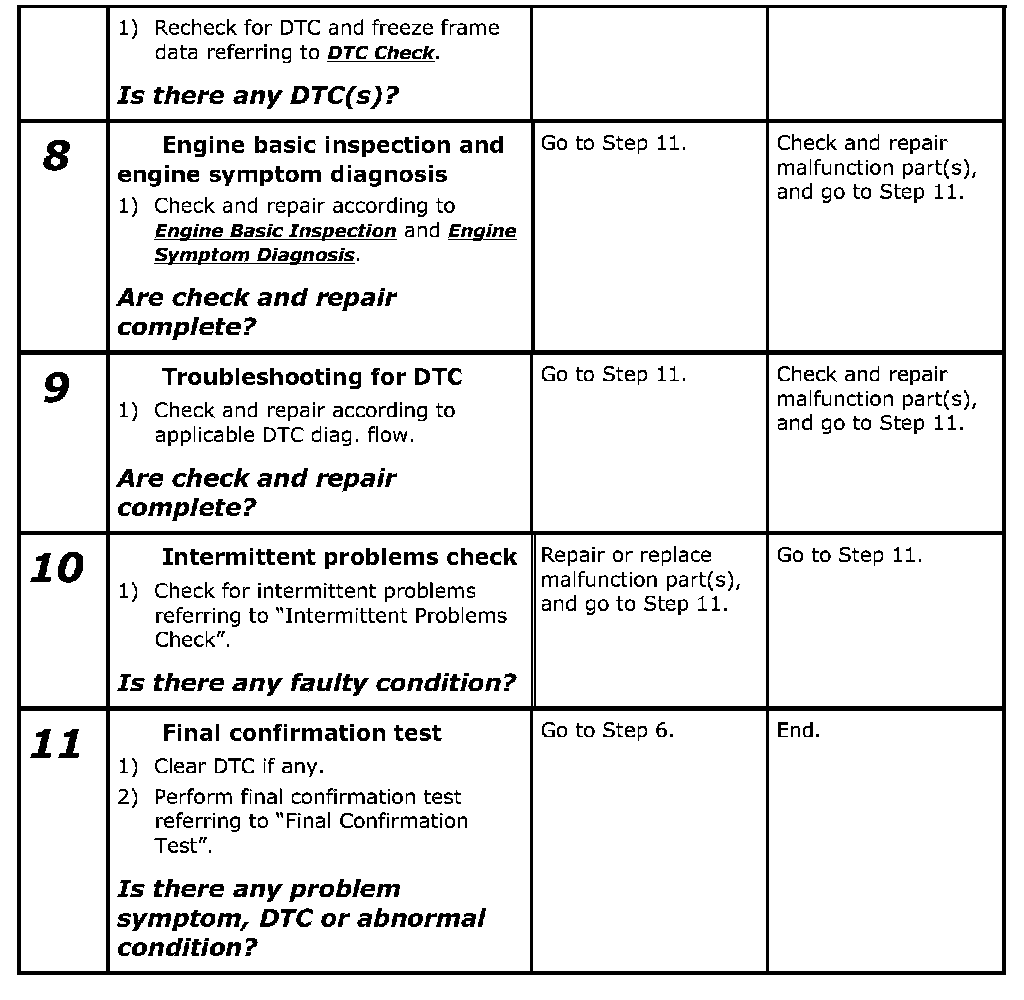

Step 7(Continued)-11:
