Condenser Fan: Testing and Inspection
A/C Condenser Cooling Fan Control System Inspection

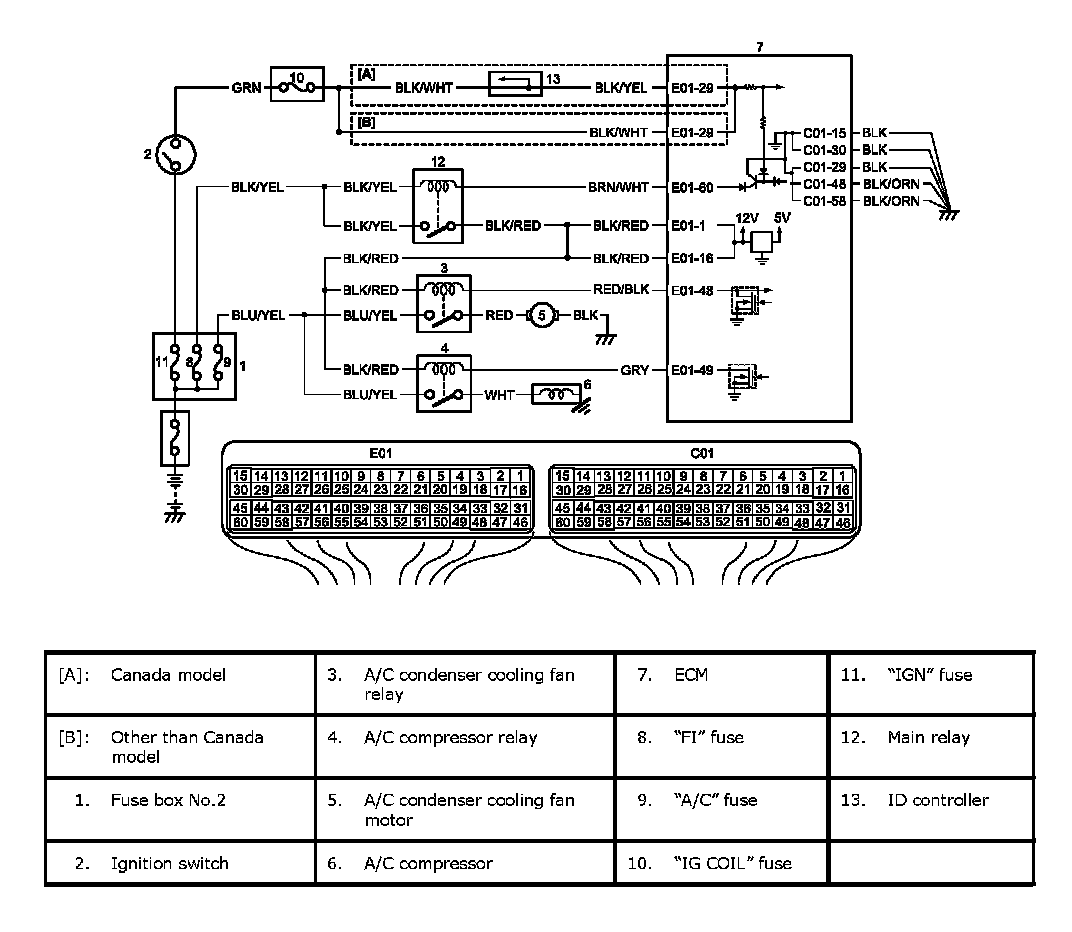

Wiring Diagram
Wiring Diagram:
Troubleshooting

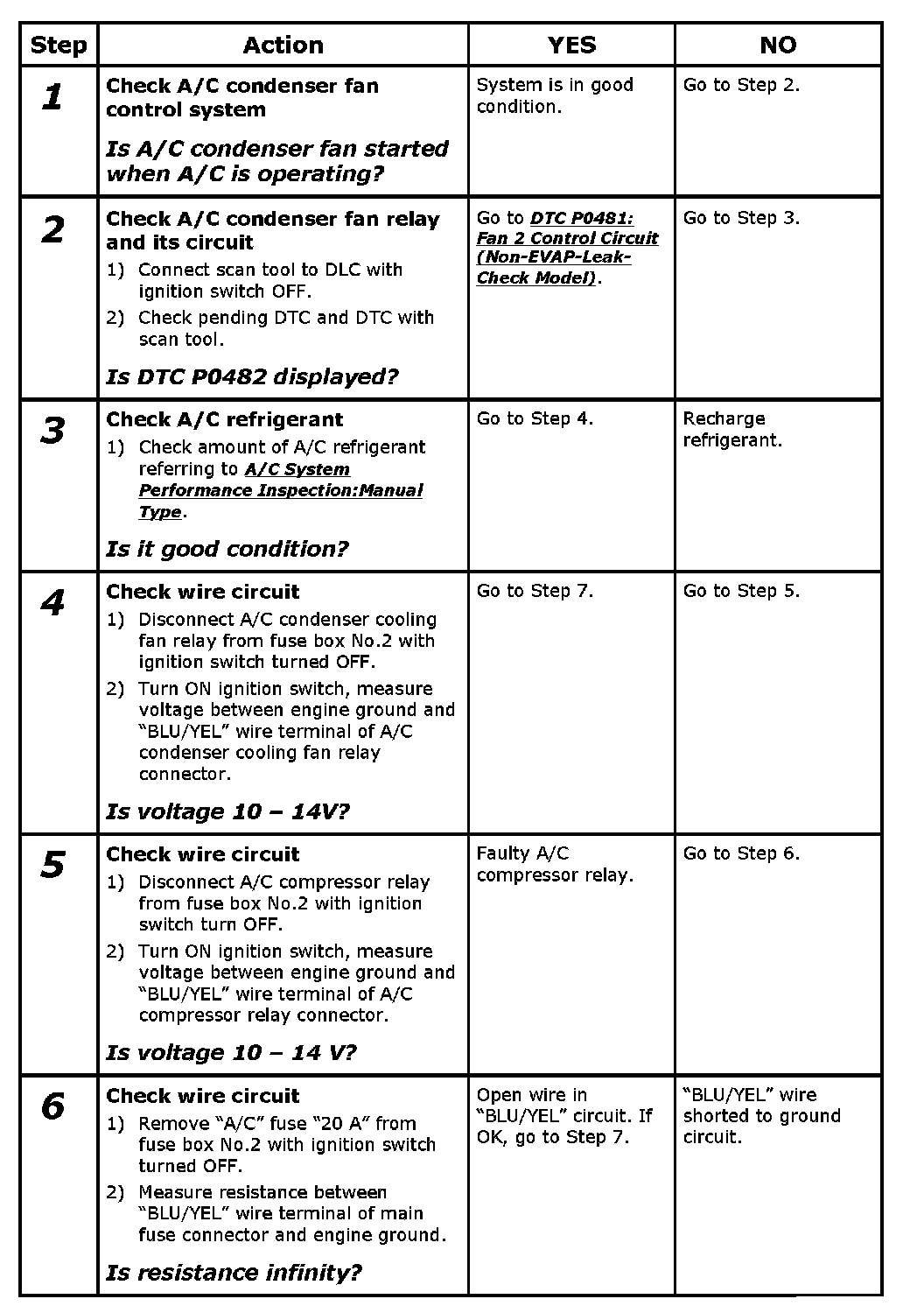

Step 1-6:

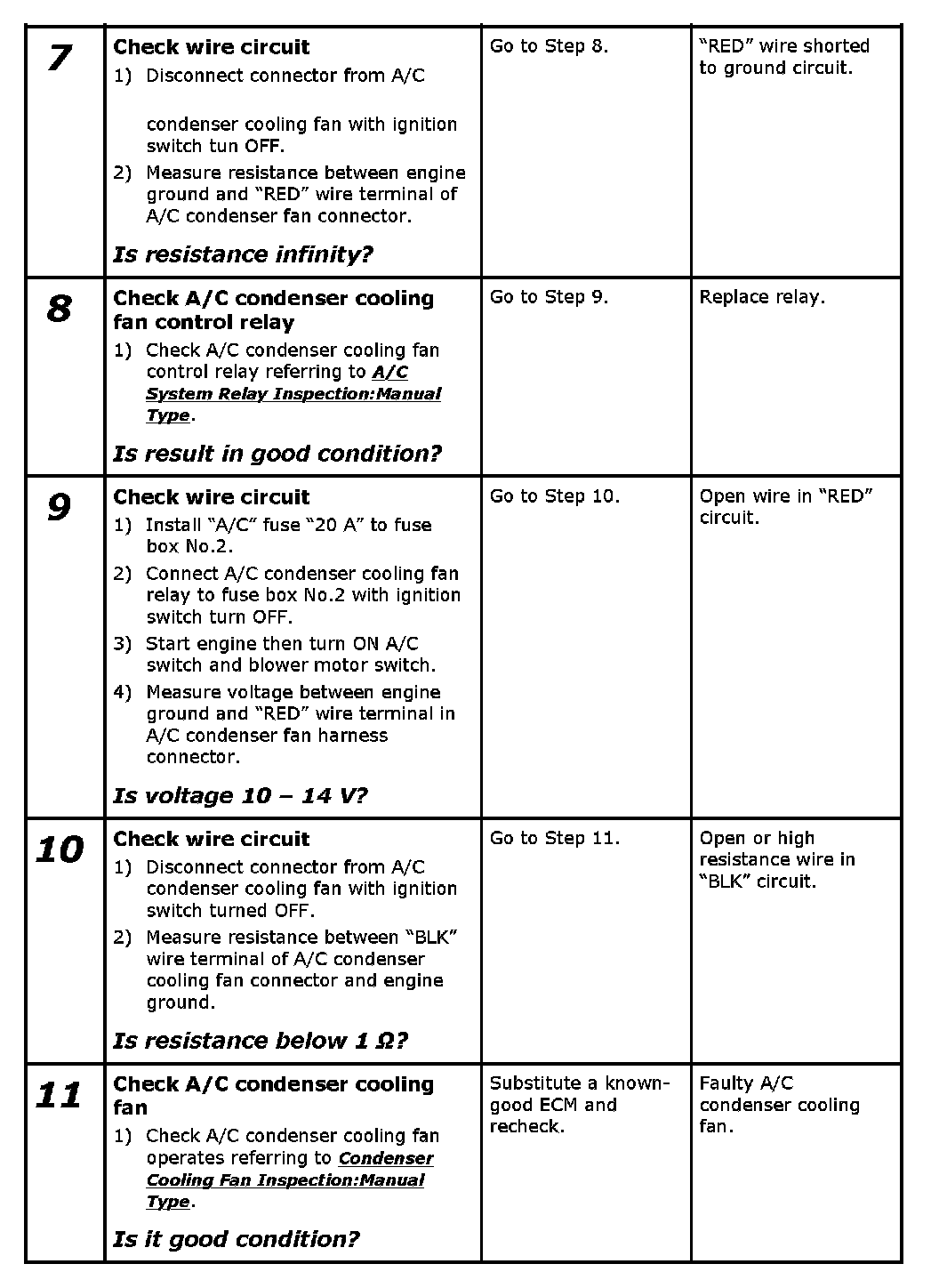

Step 7-11:
