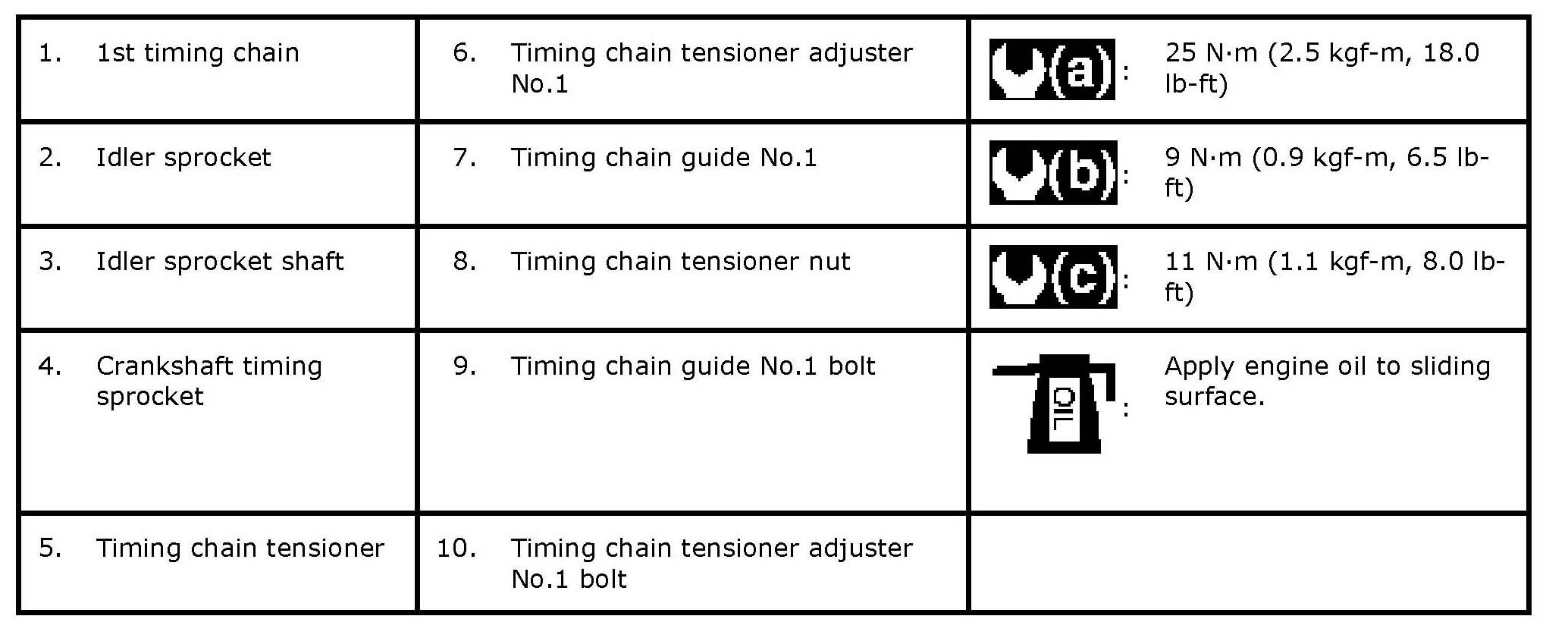

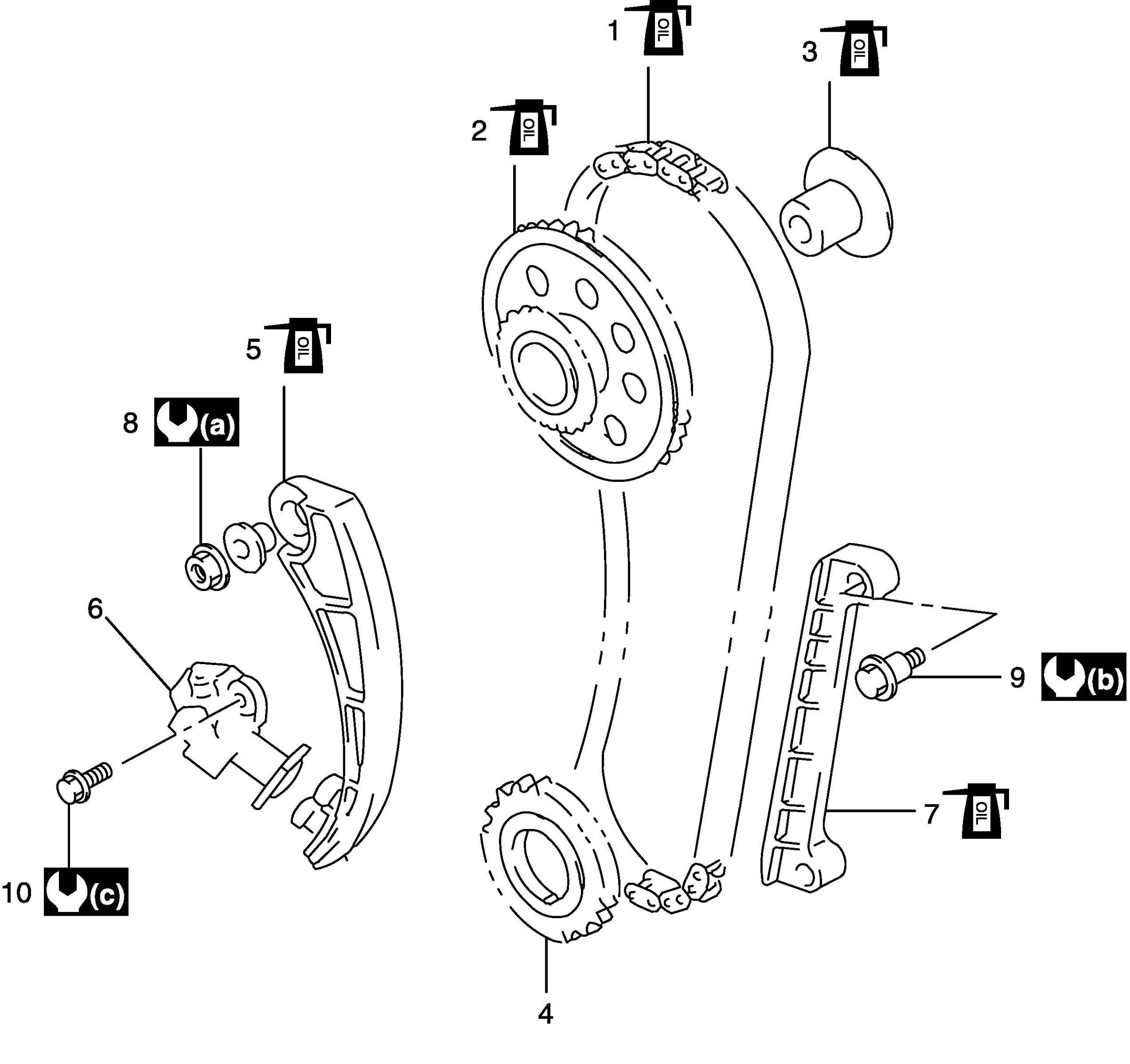

1ST Timing Chain and Chain Tensioner Components
1ST Timing Chain and Chain Tensioner Components
1st
Timing Chain
and Chain Tensioner Components
