Disc Brake System
>>

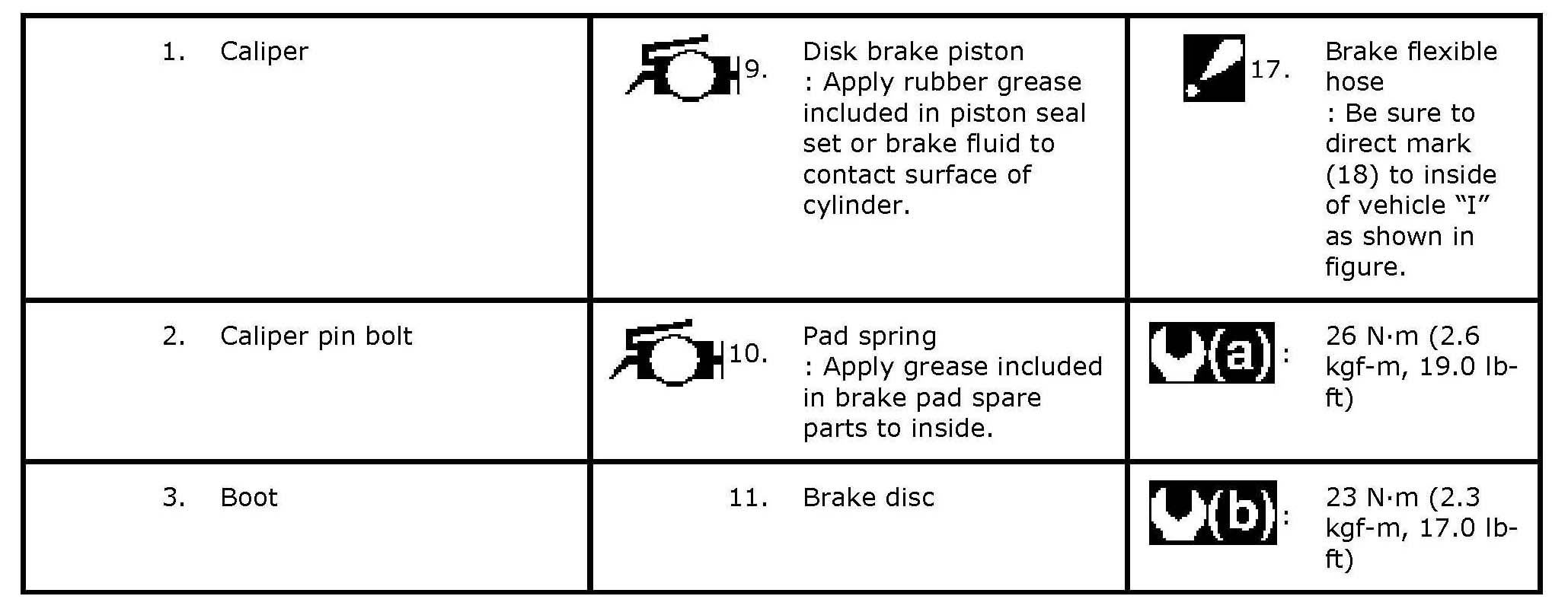

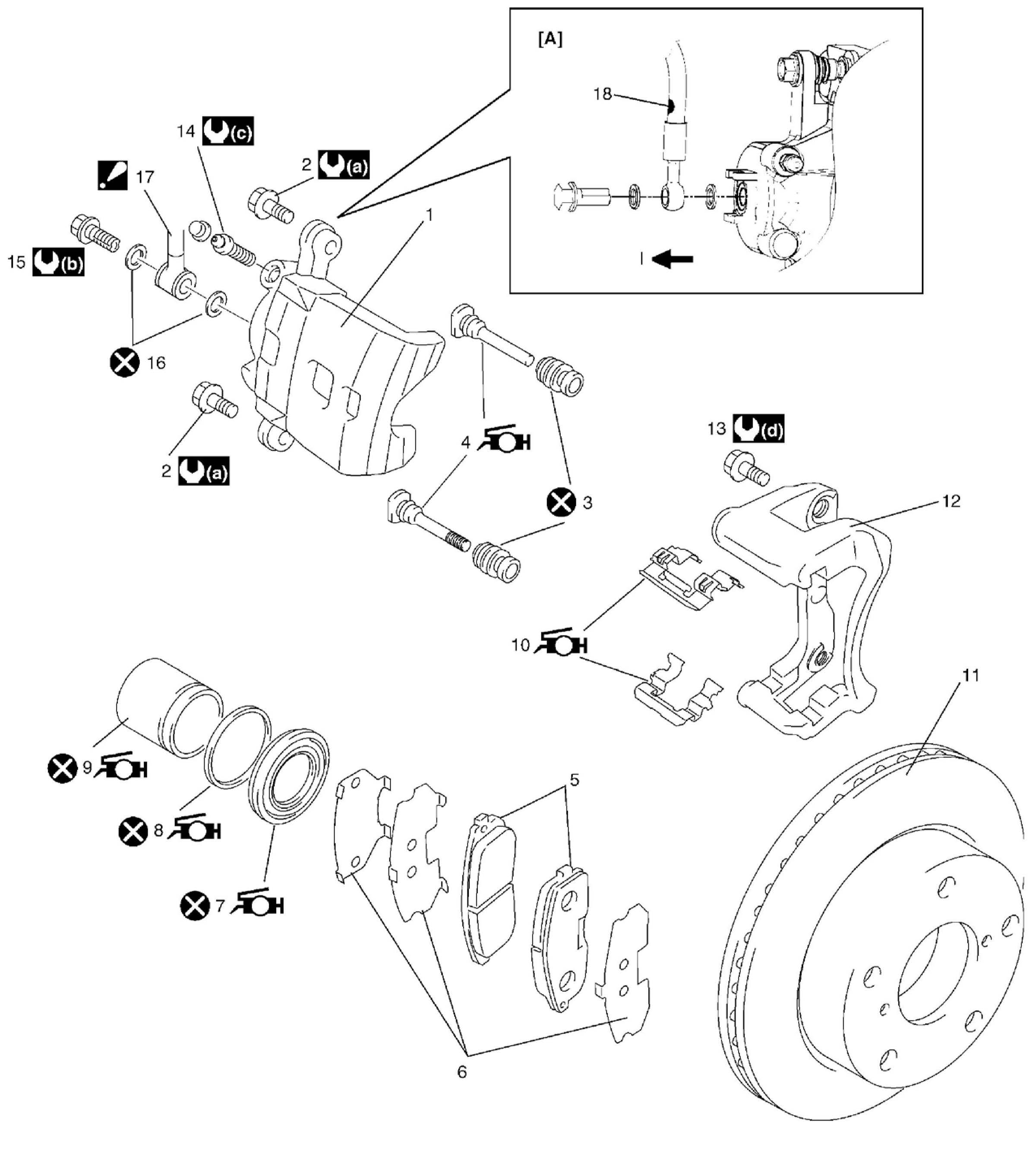

Front Disc Brake Components
Front Disc Brake Components
Front Disc Brake Components
