Auto A/C System Circuit Schematic

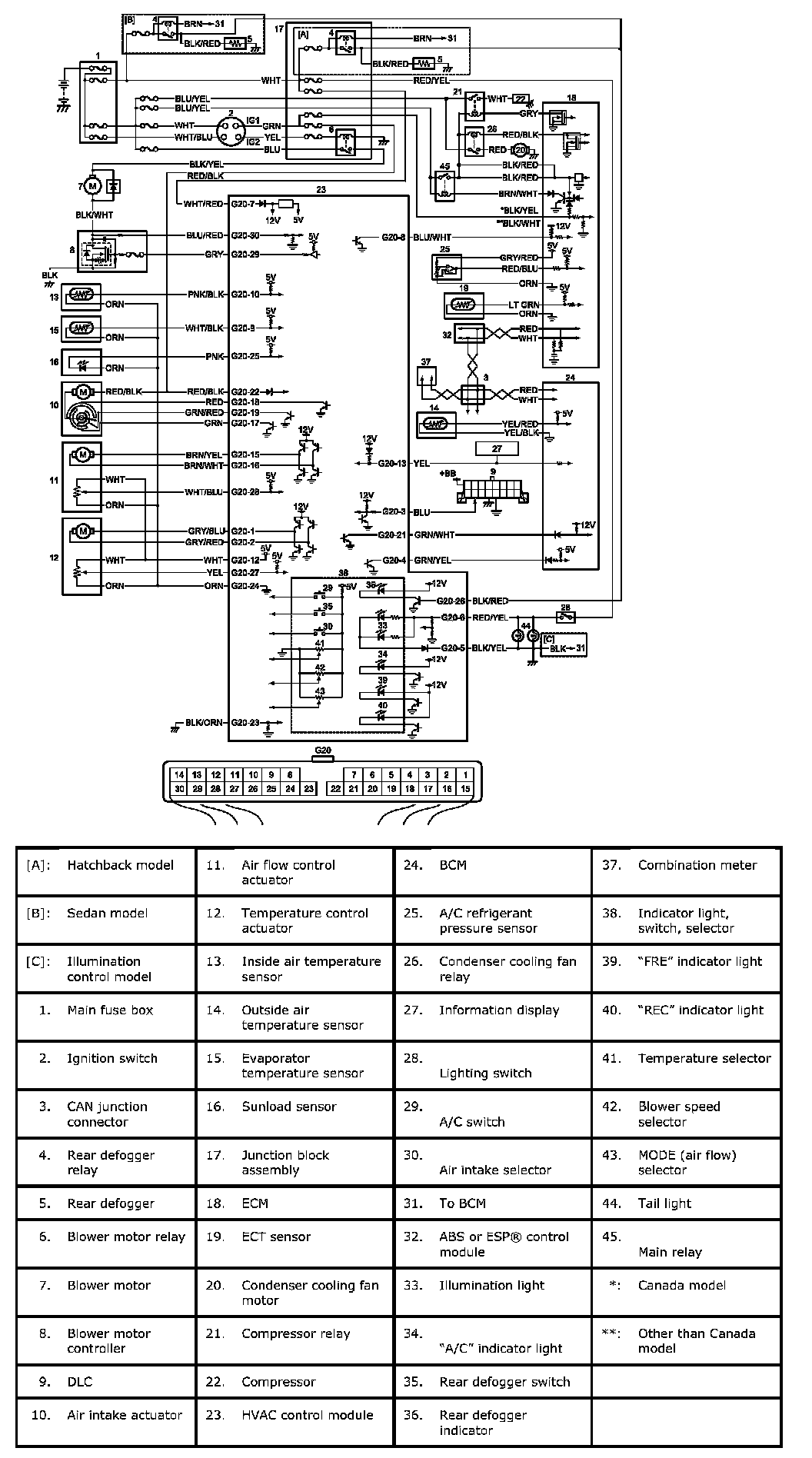

A/C System Wiring Diagram:

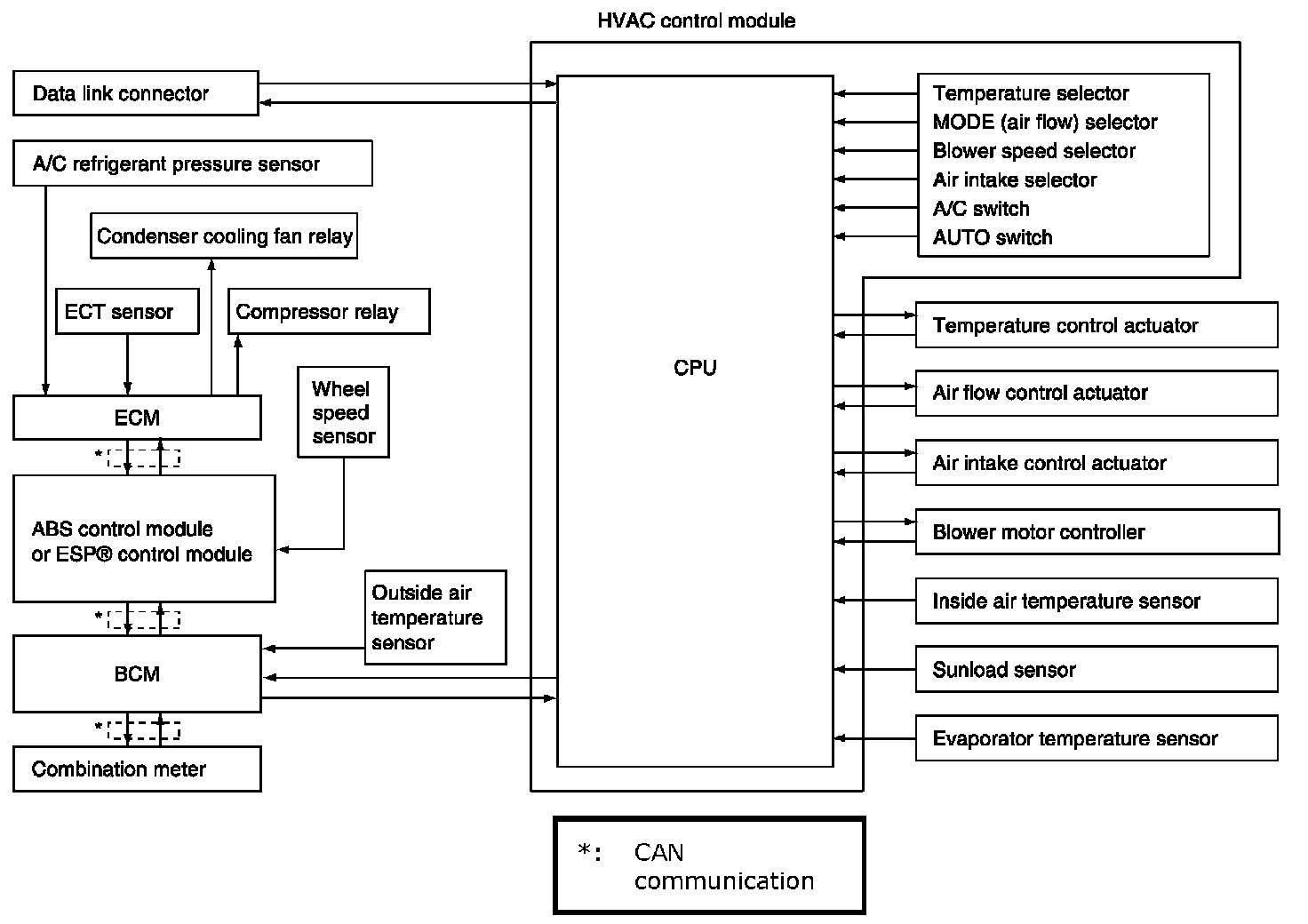

Auto A/C Electronic Control Input / Output Diagram:
