BCM Power Circuit and Ground Circuit Check
BCM Power Circuit and Ground Circuit Check
BCM
Power Circuit and Ground Circuit Check

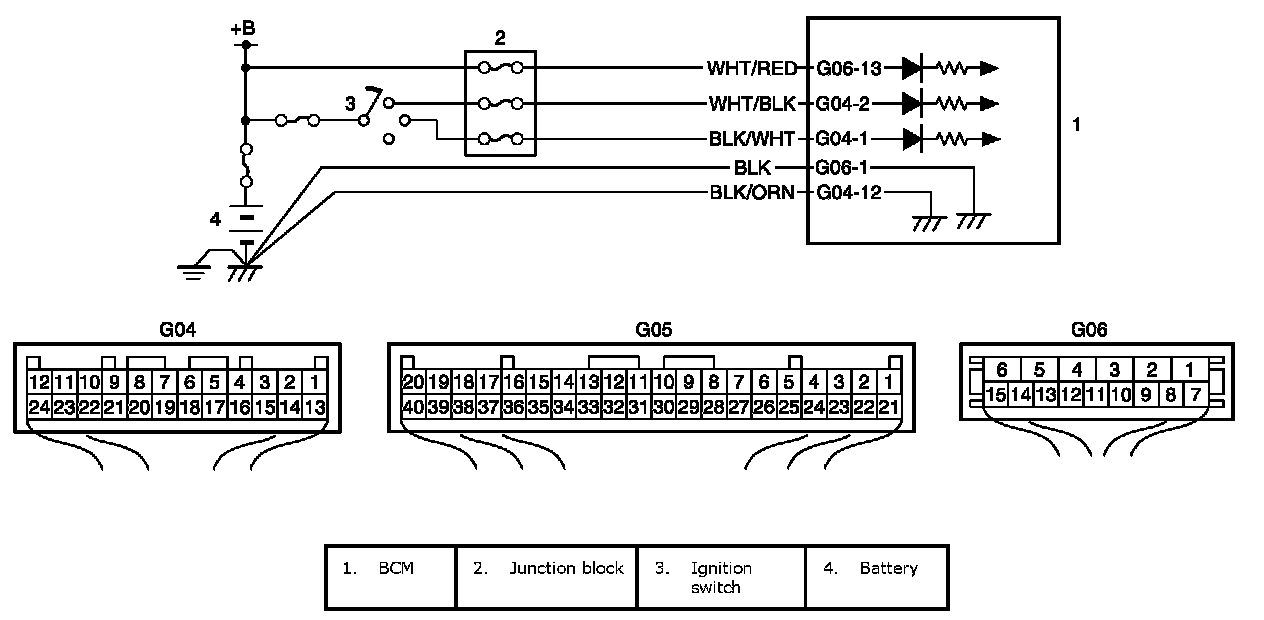

Wiring Diagram
Wiring Diagram:

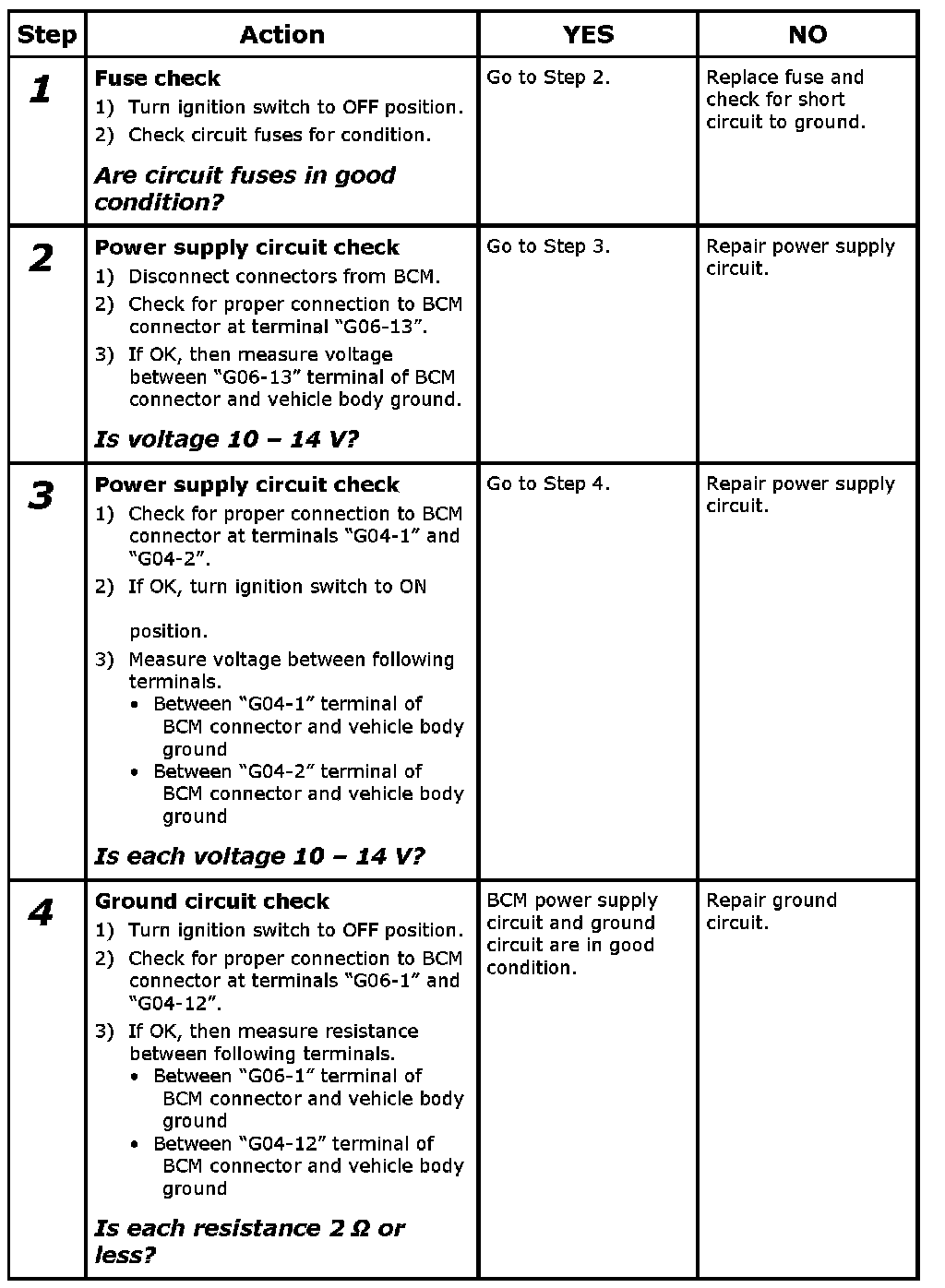

Troubleshooting
Step 1-4:
