P1645

DTC P1645: ID Code Communication Error

Wiring Diagram

Immobilizer Control System Wiring Circuit Diagram:

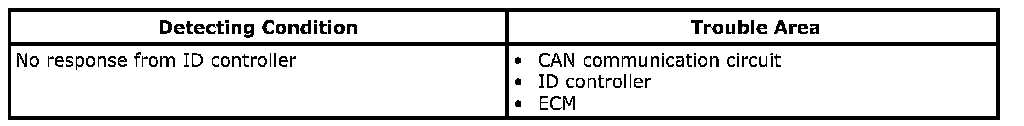

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

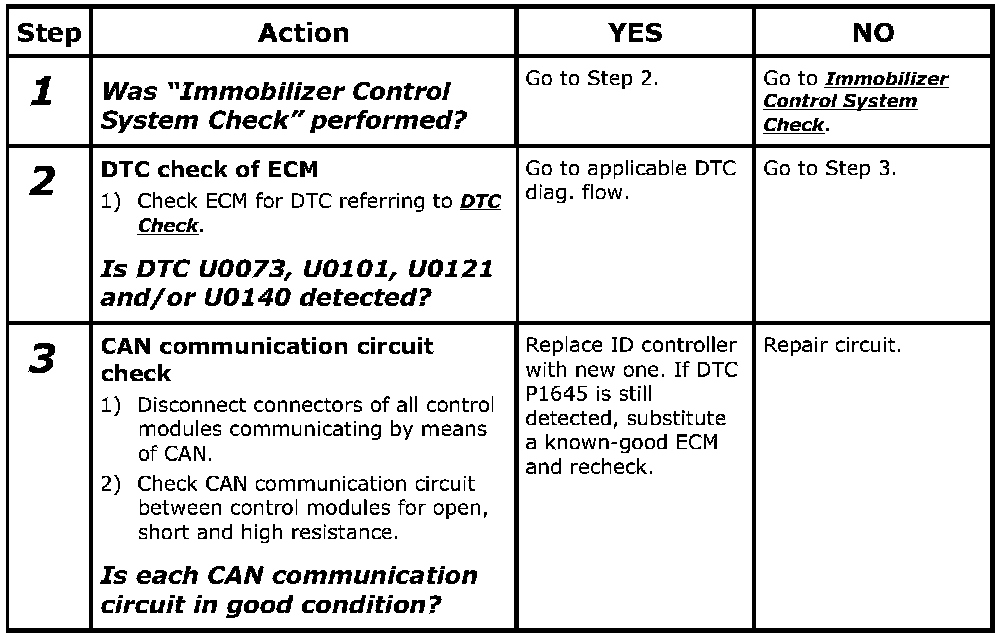

Troubleshooting

Step 1-3:
