P1636

DTC P1636: Immobilizer Information Registration Failure

Wiring Diagram

Immobilizer Control System Wiring Circuit Diagram:

DTC Detecting Condition and Trouble Area

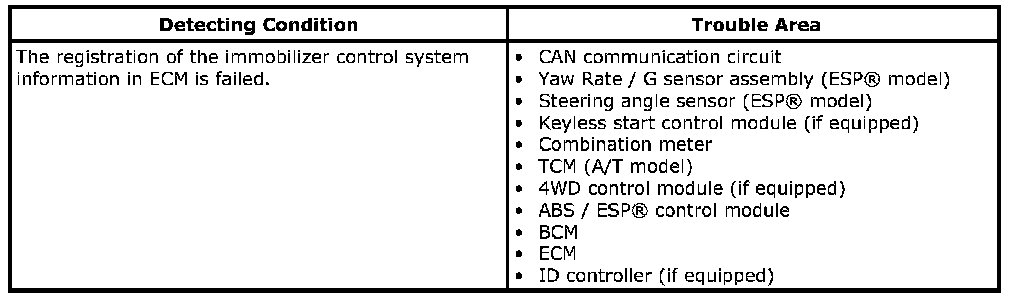

DTC Detecting Condition And Trouble Area:

Troubleshooting

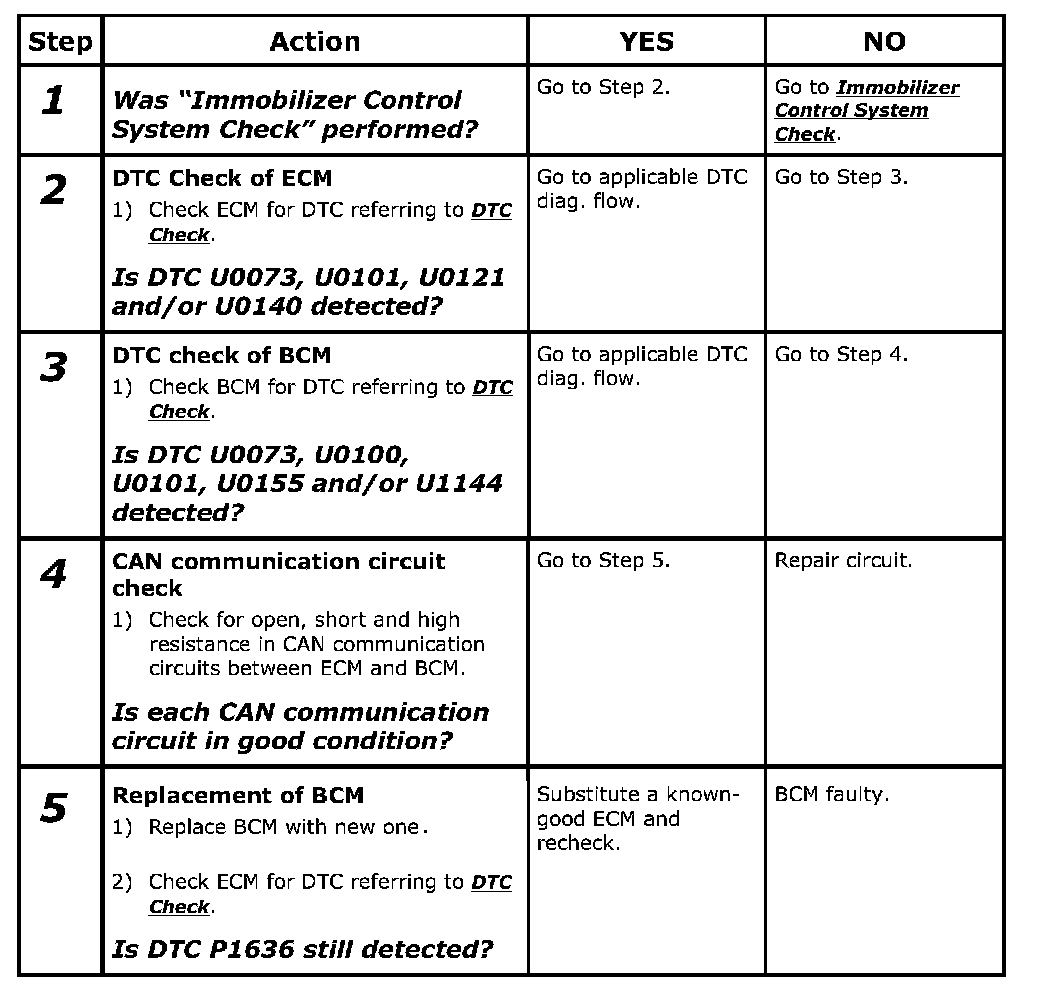

Step 1-5:
