DTC 52

DTC No. 51 / No. 52 / No. 53: Driver Side / Passenger Side / Rear End Door / Trunk Lid Request Switch Failure

Wiring Diagram

Wiring Diagram:

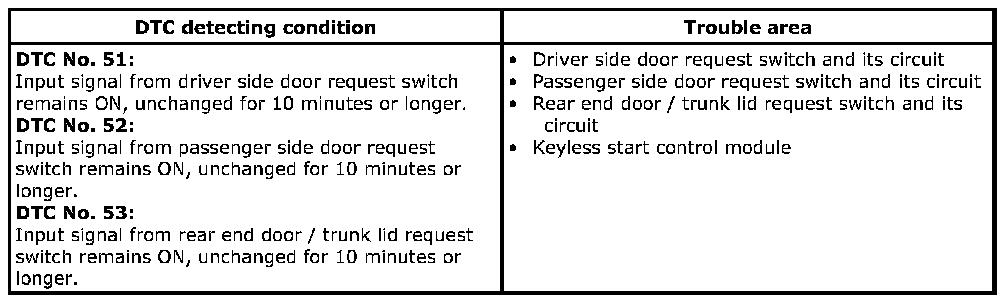

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

DTC Confirmation Procedure
1. Clear DTC referring to DTC Clearance.
2. Push request switch of each door.
3. Check DTC referring to DTC Check. DTC Check

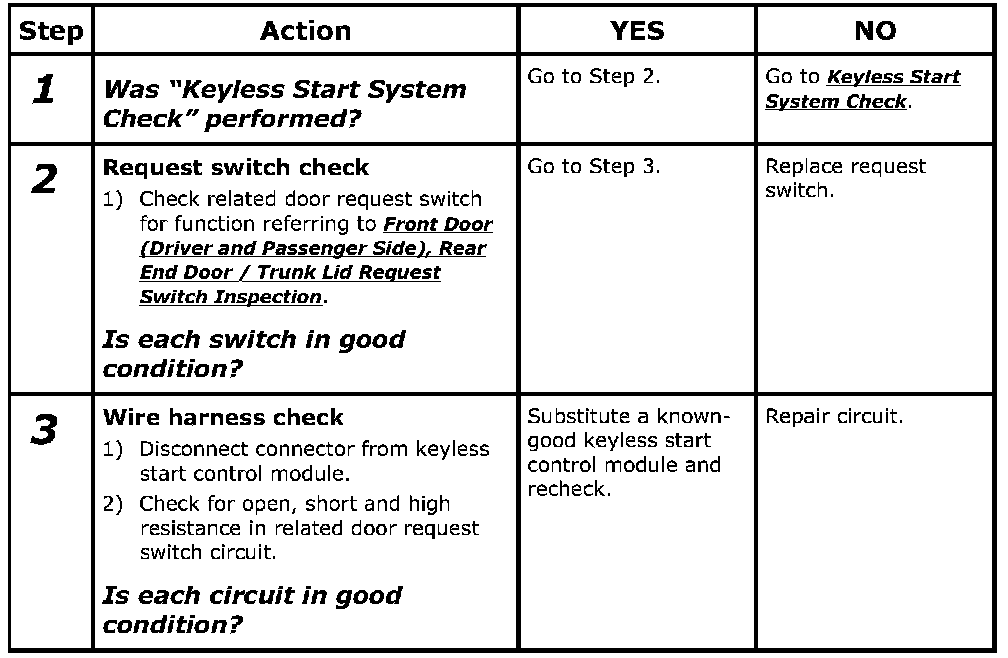

DTC Troubleshooting

Step 1-3:
