A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Electronic Power Steering (EPS)
Electronic Power Steering (EPS)
DTC Table
CAUTION:
Be sure to perform the EPS System Check: Electric Type before starting troubleshooting corresponding to each DTC.

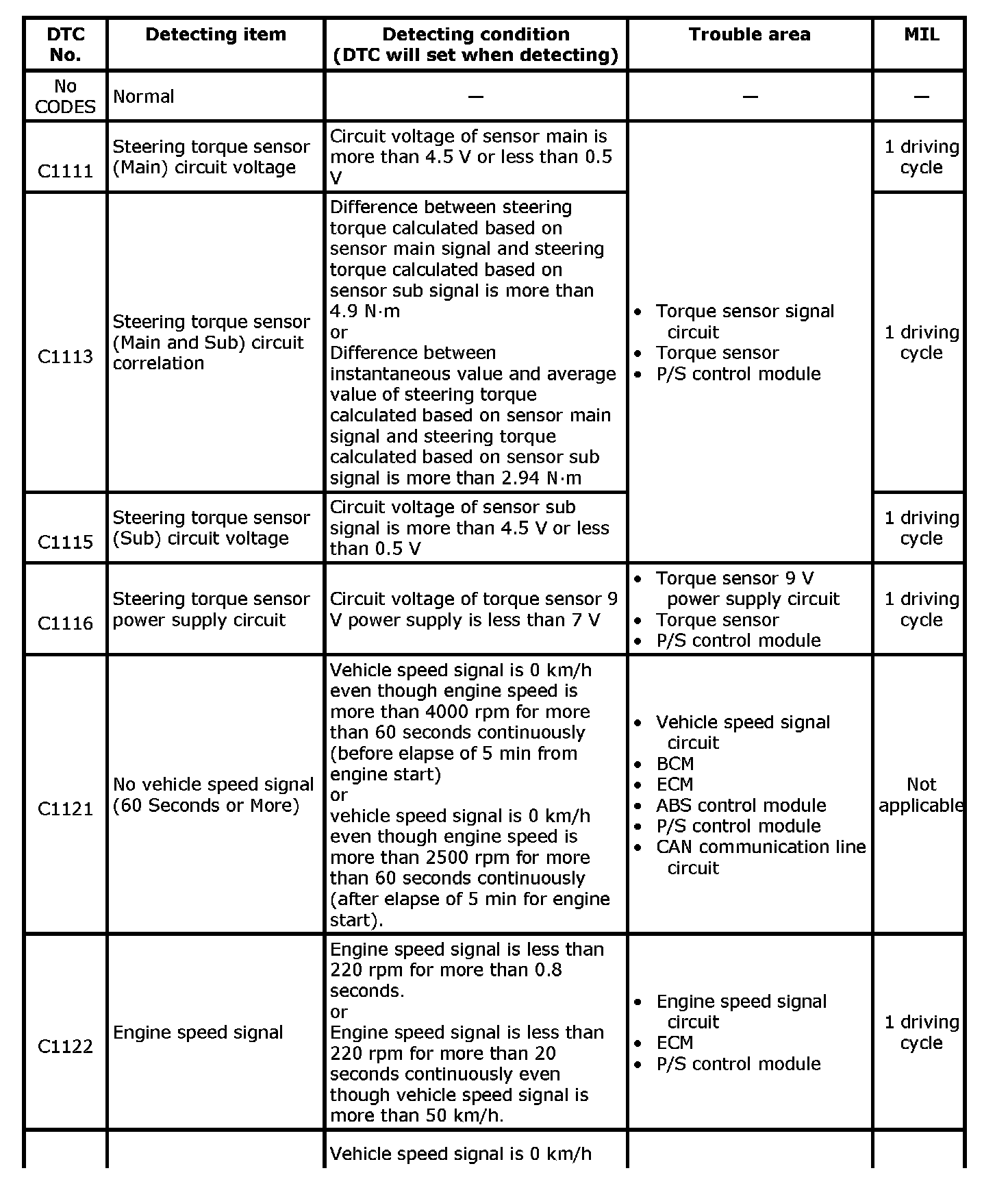

C1111-C1122:

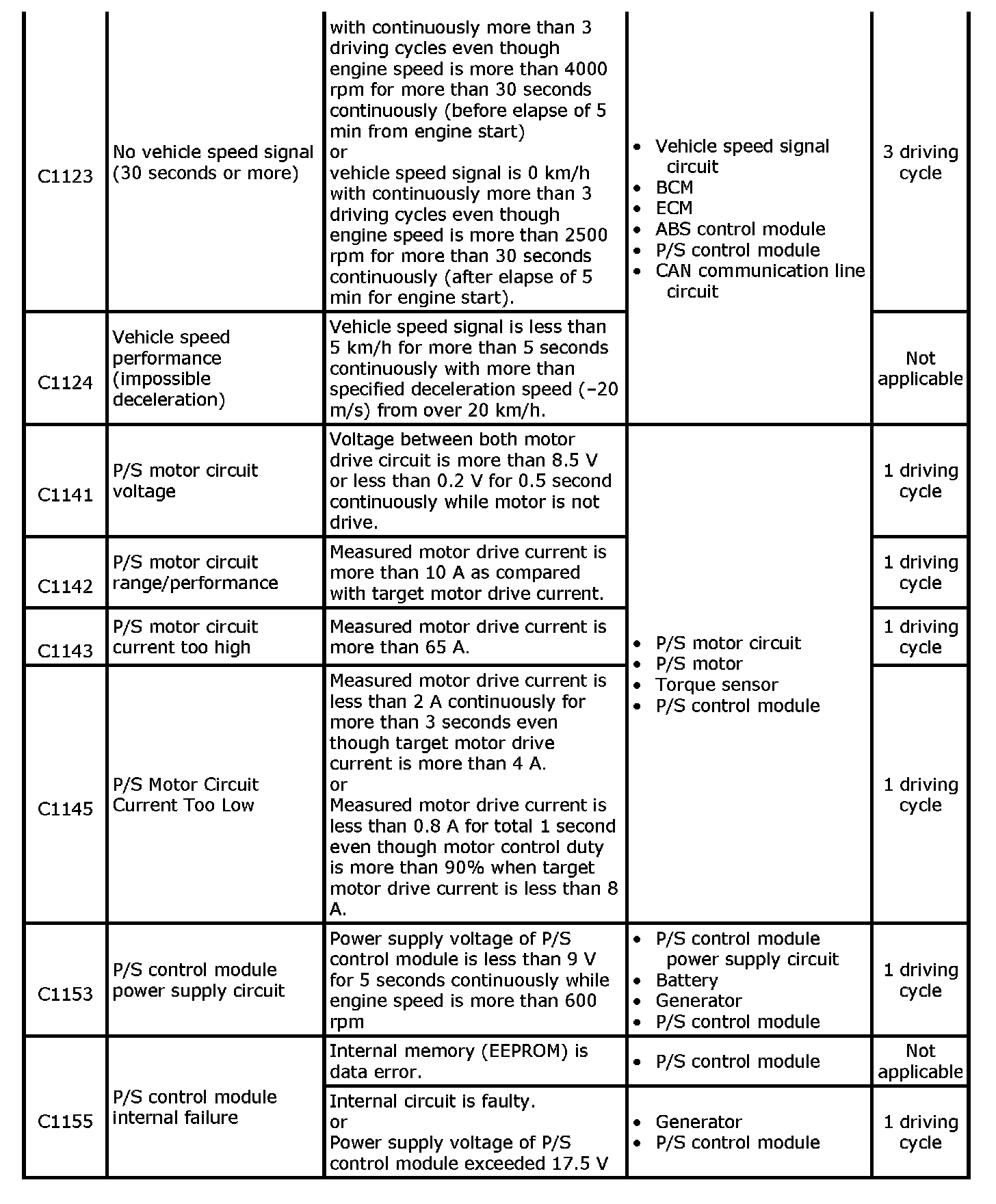

C1123-C1155:
