SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Control Systems
>>
Body Electrical Control System
Body Electrical Control System

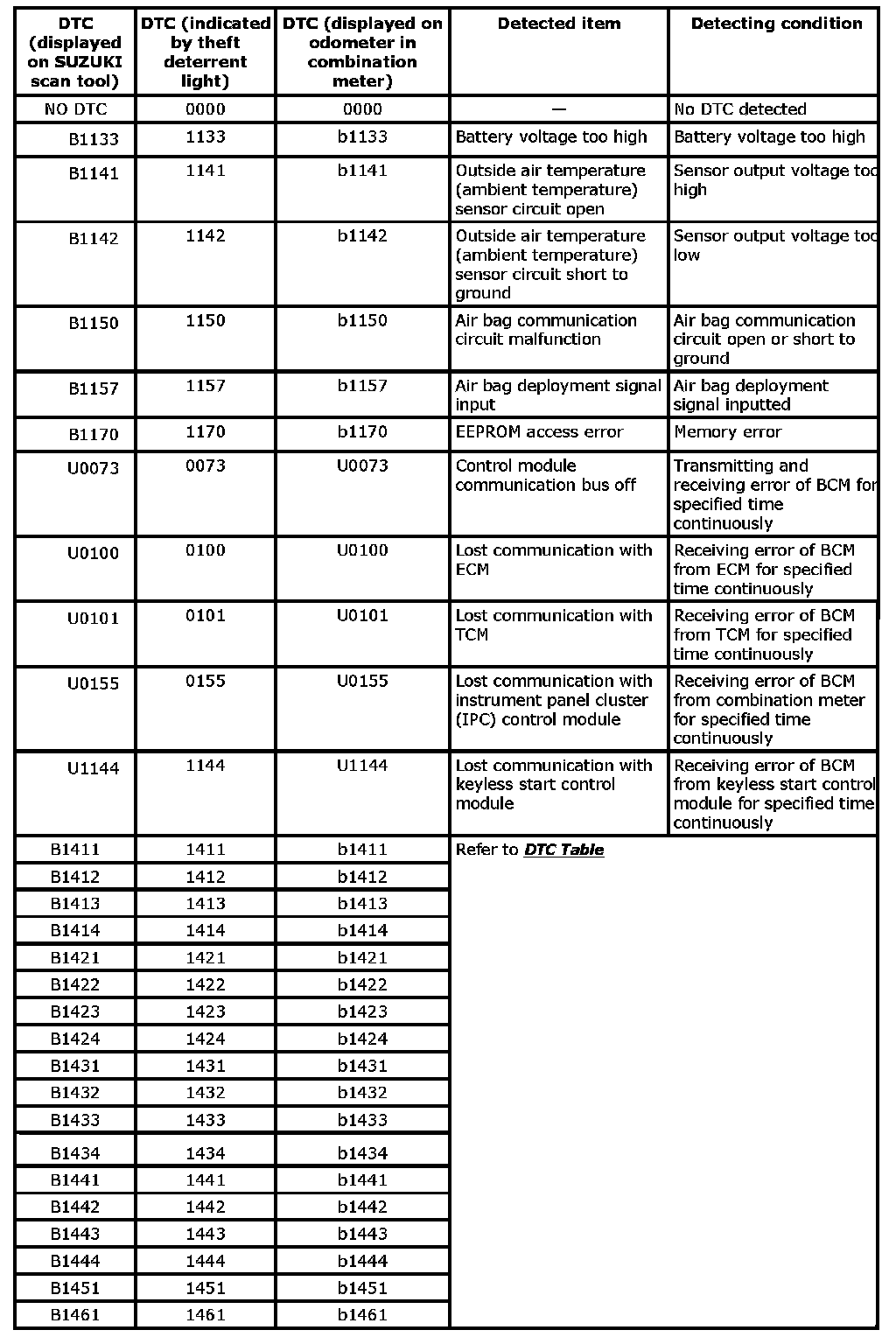

B1133-B1170 / U0073-U1144 / B1411-B1461:
