Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> ABS

ABS

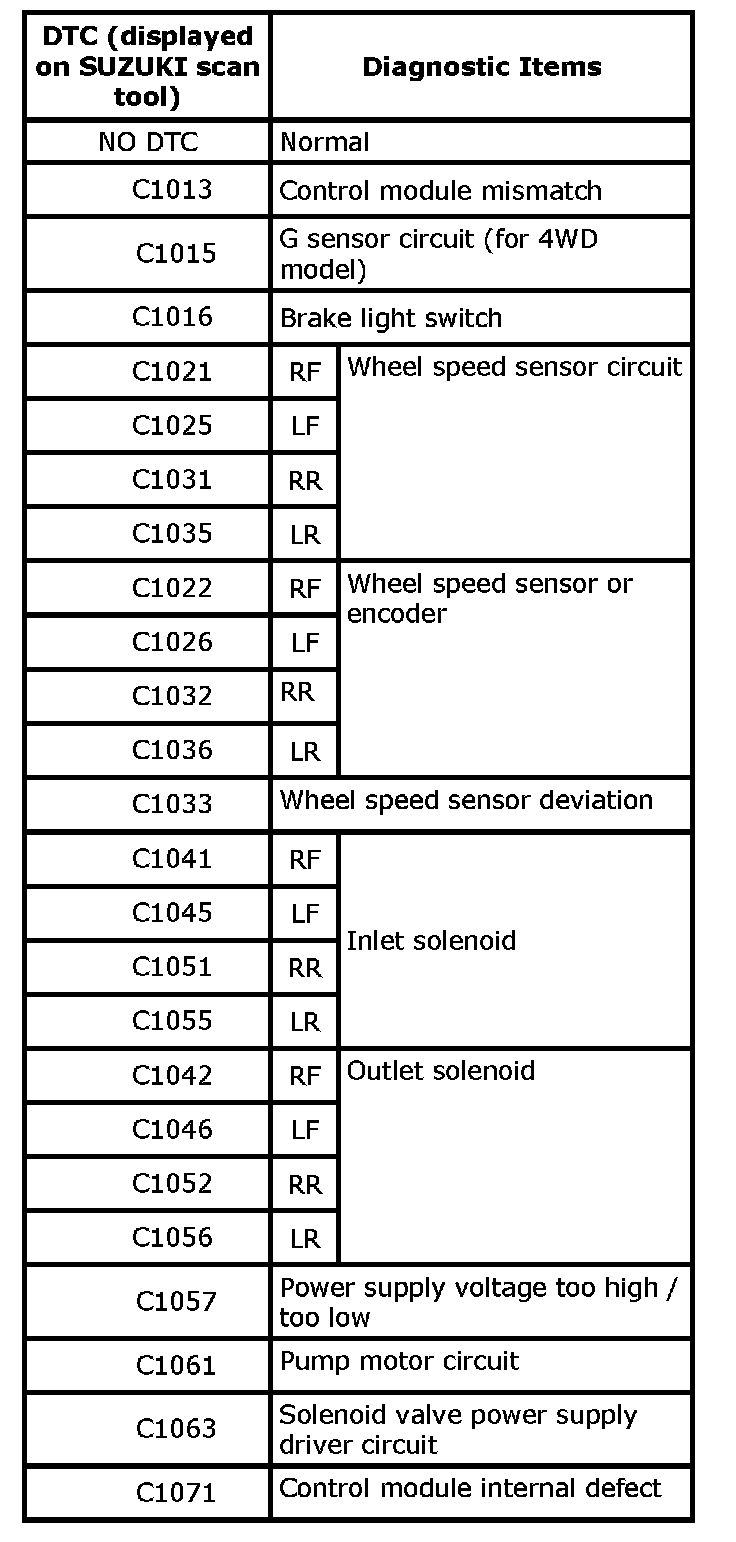

DTC Table

CAUTION: Be sure to perform ABS Check before starting diagnosis.
