C1155

DTC C1155: P/S Control Module Internal Failure

Wiring Diagram
Refer to DTC C1153: P/S Control Module Power Supply Circuit. Electric Type. C1153

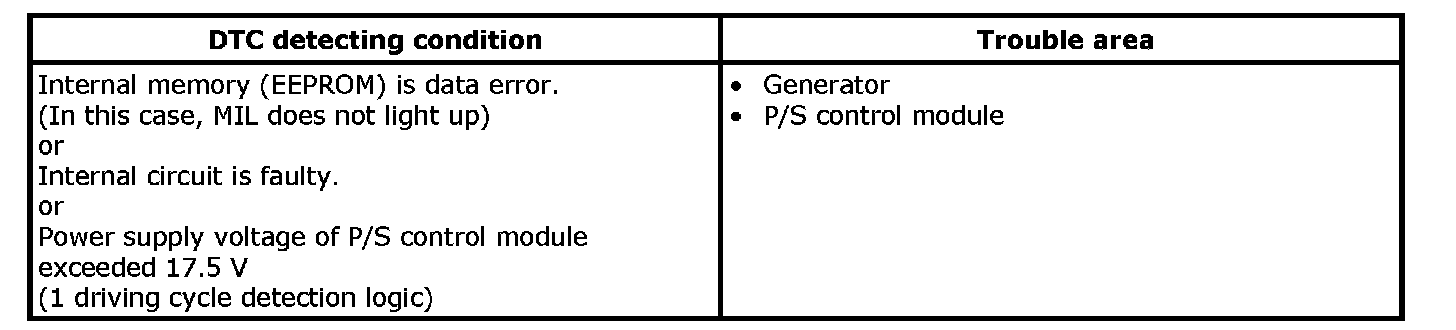

DTC Detecting Condition and Trouble Area

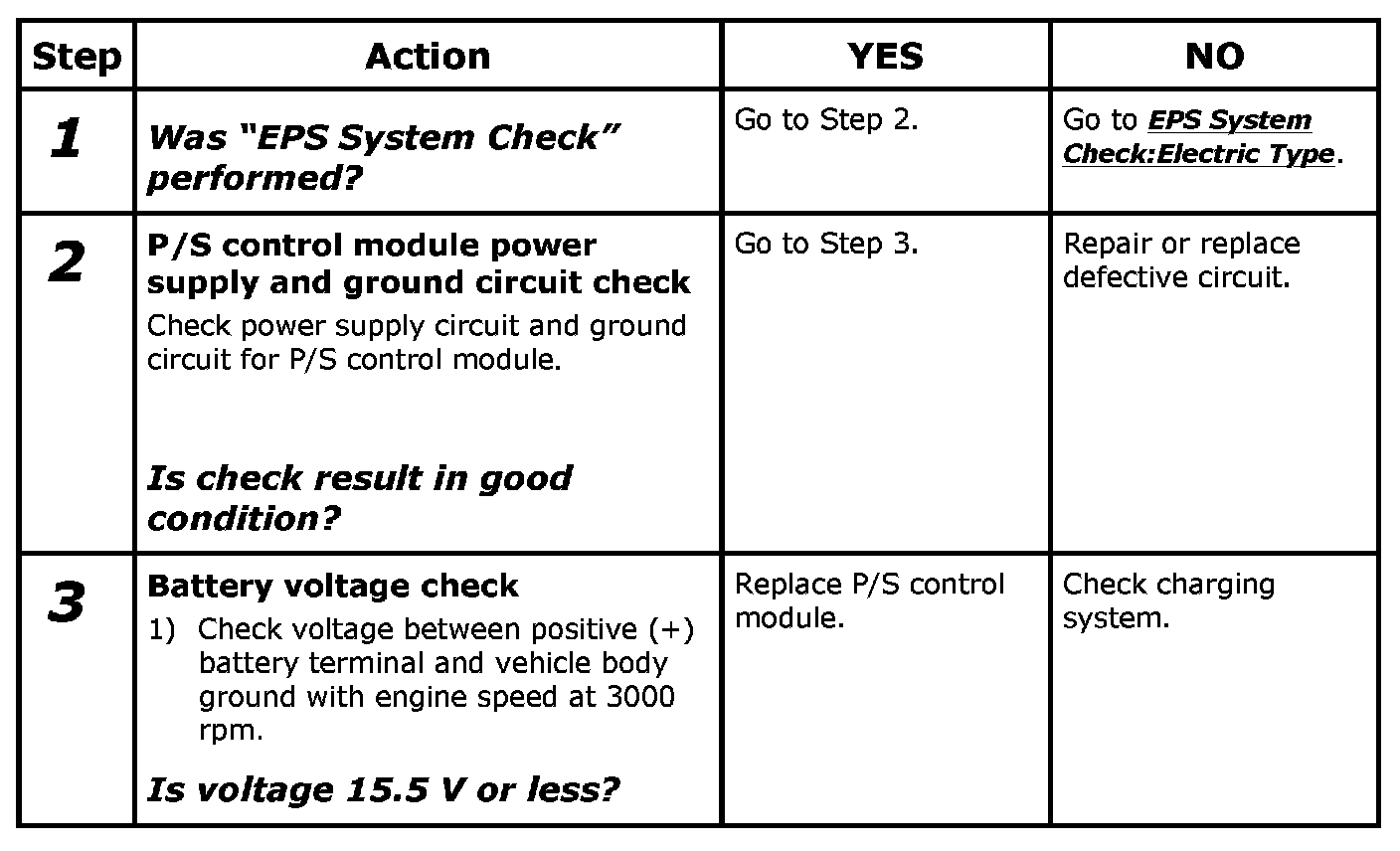

DTC Troubleshooting

Step 1-Step 3:
