C1122

DTC C1122: Engine Speed Signal

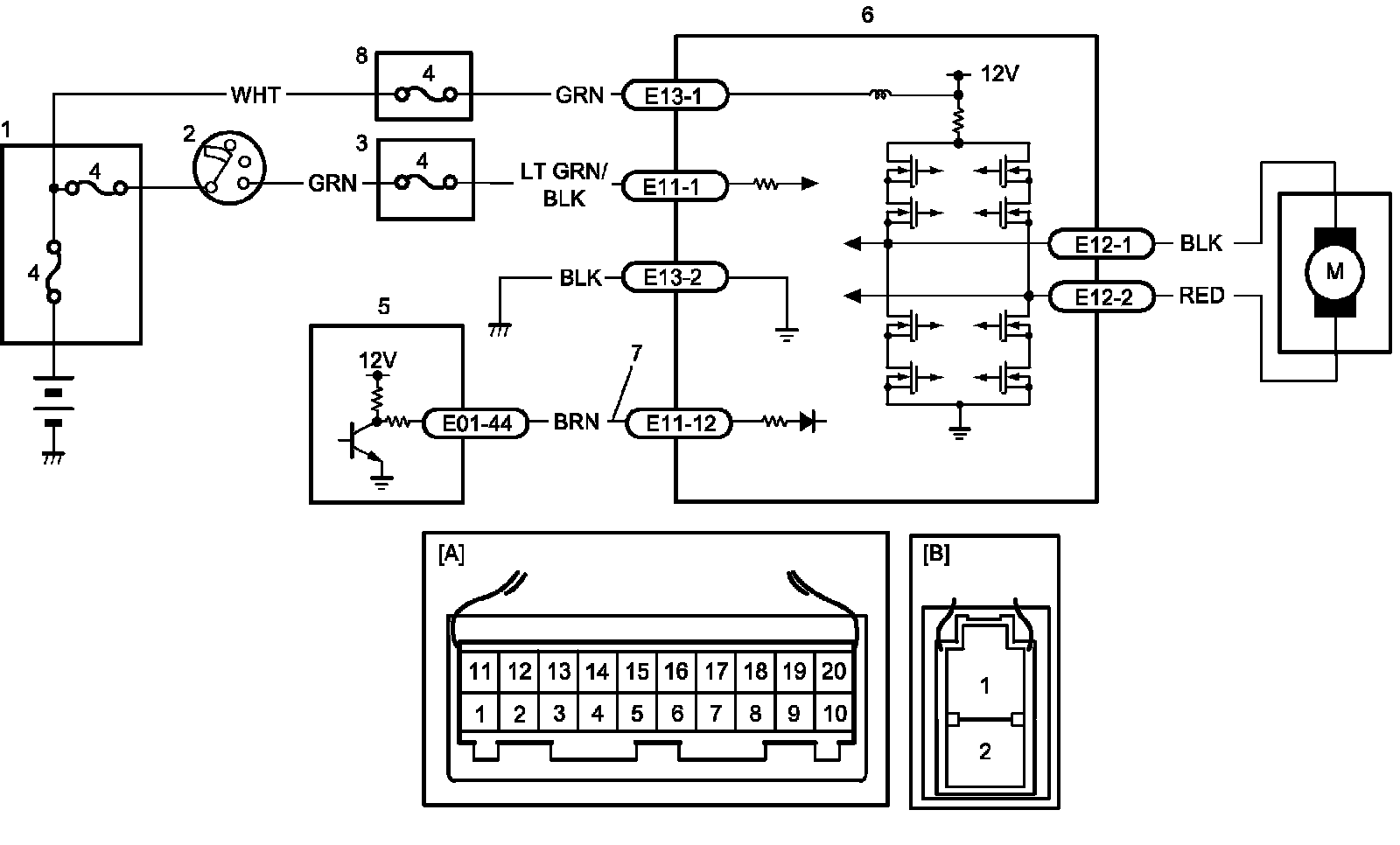

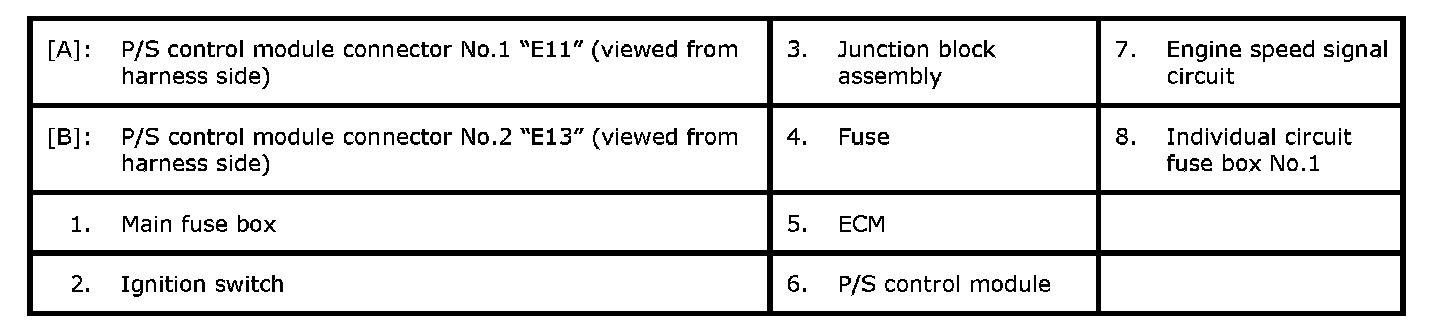

Wiring Diagram

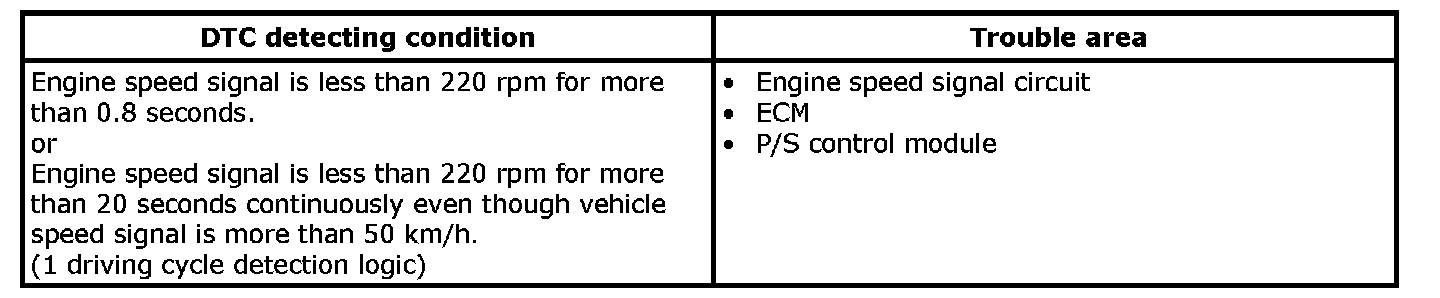

DTC Detecting Condition and Trouble Area

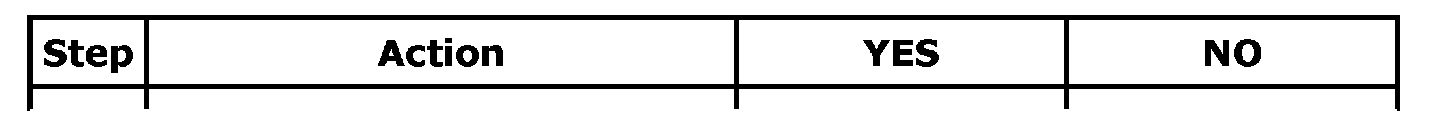

DTC Troubleshooting

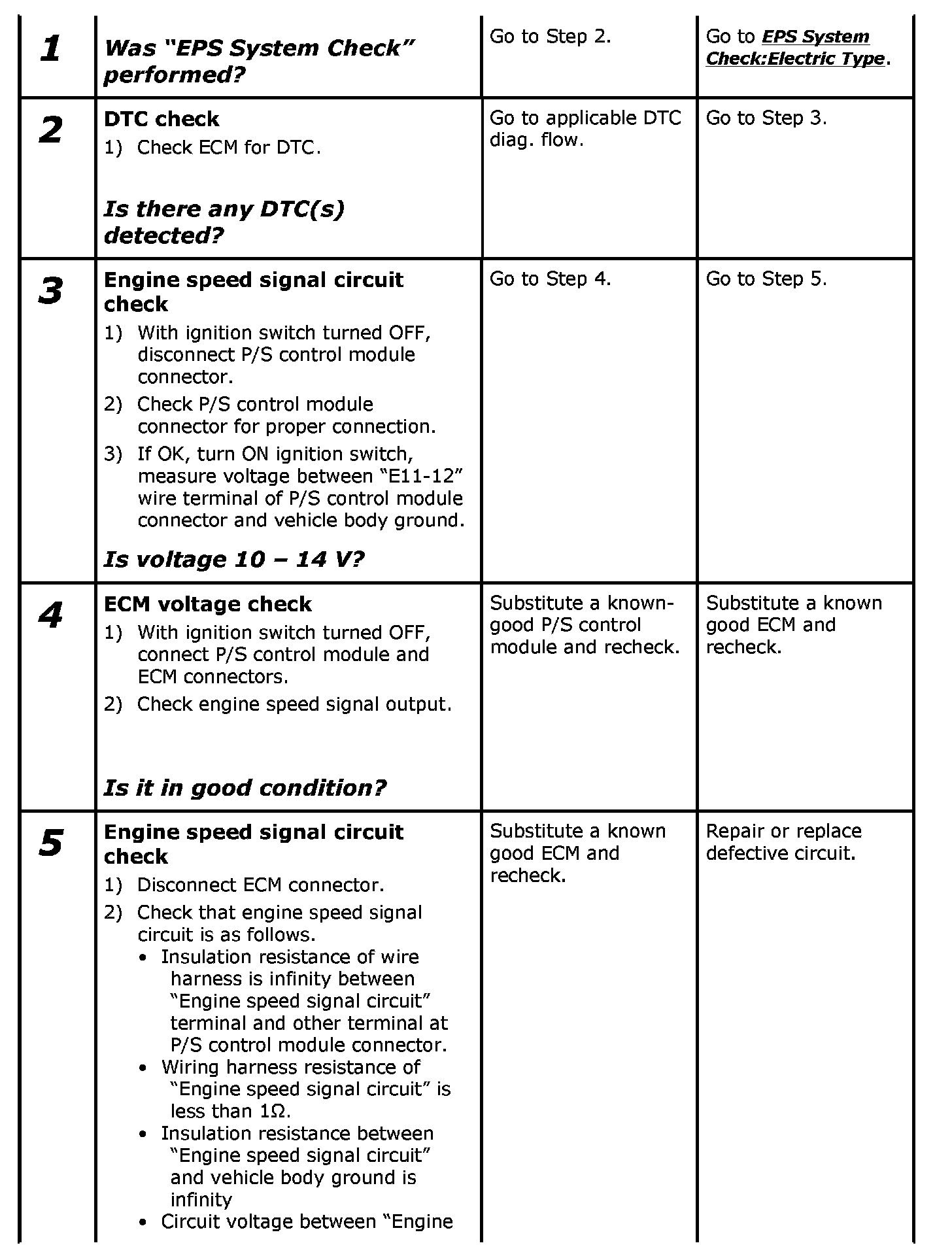

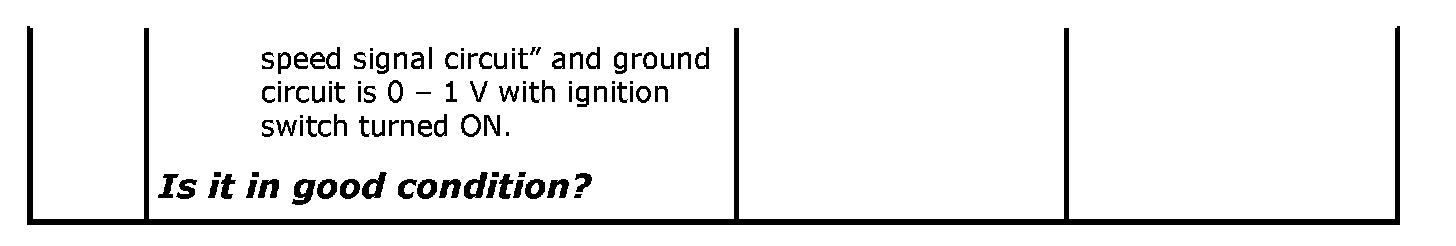

Step 1-Step 5:
