DTC C1116: Steering Torque Sensor Power Supply Circuit

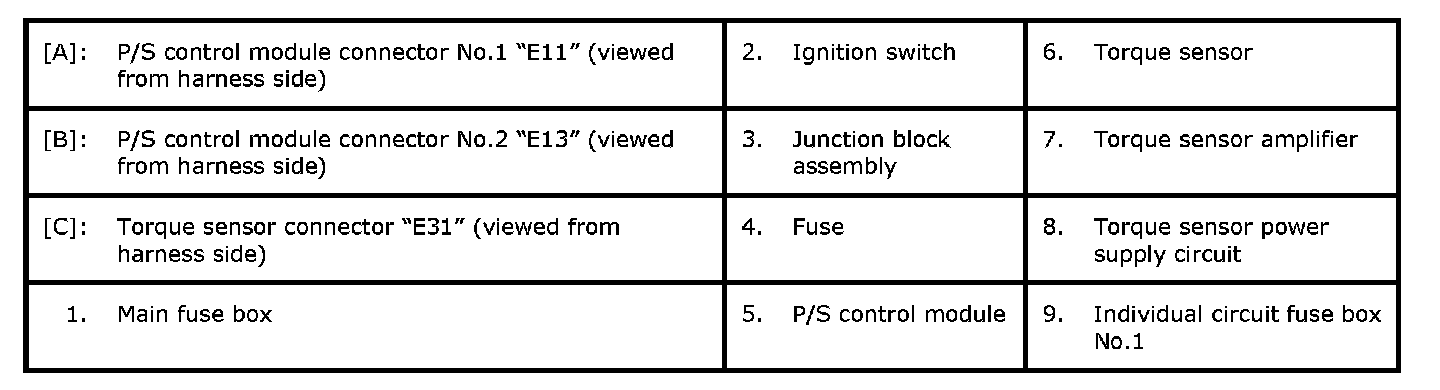

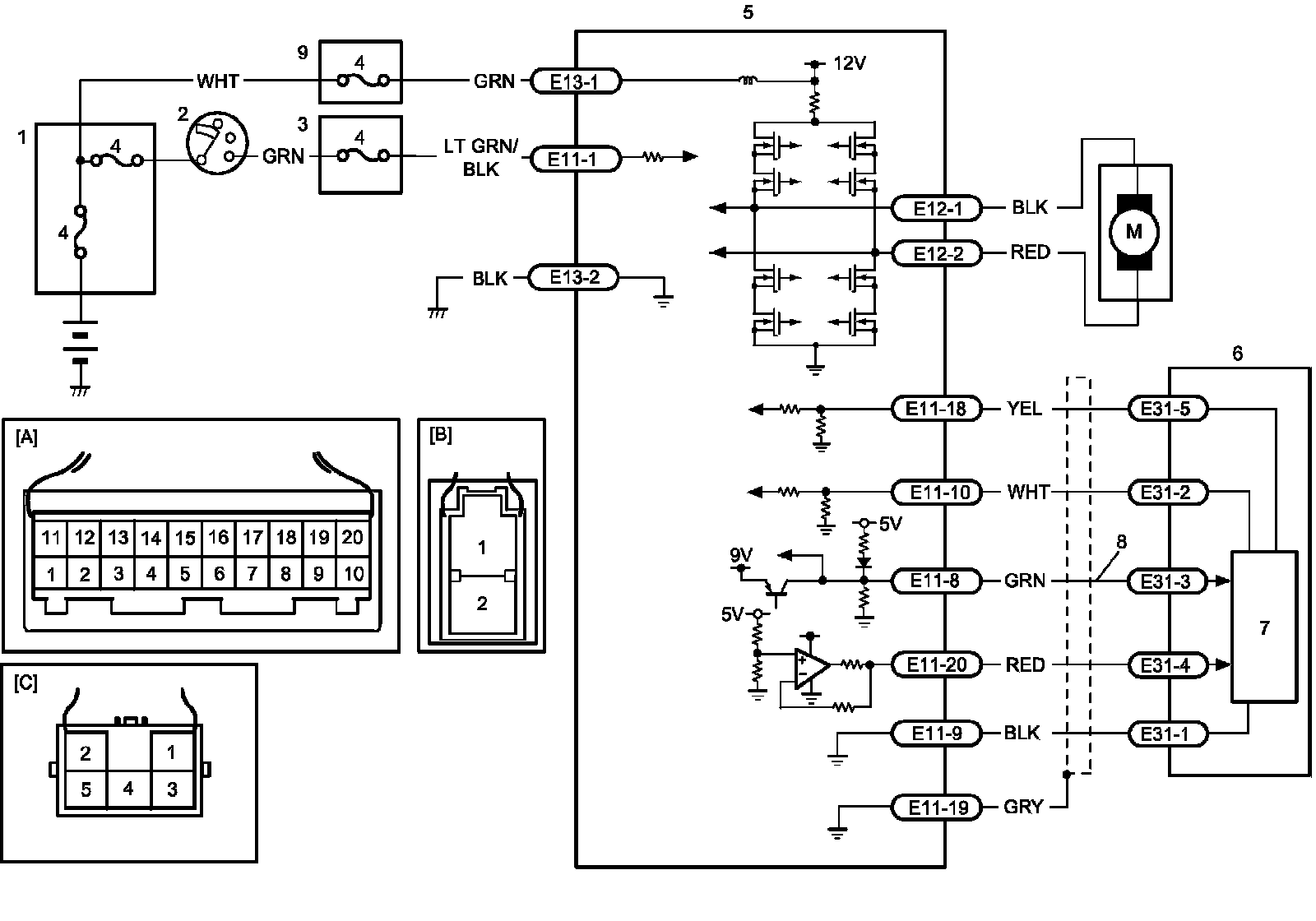

Wiring Diagram

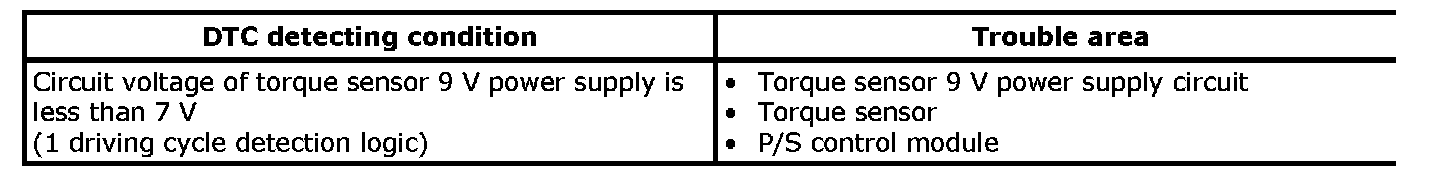

DTC Detecting Condition and Trouble Area

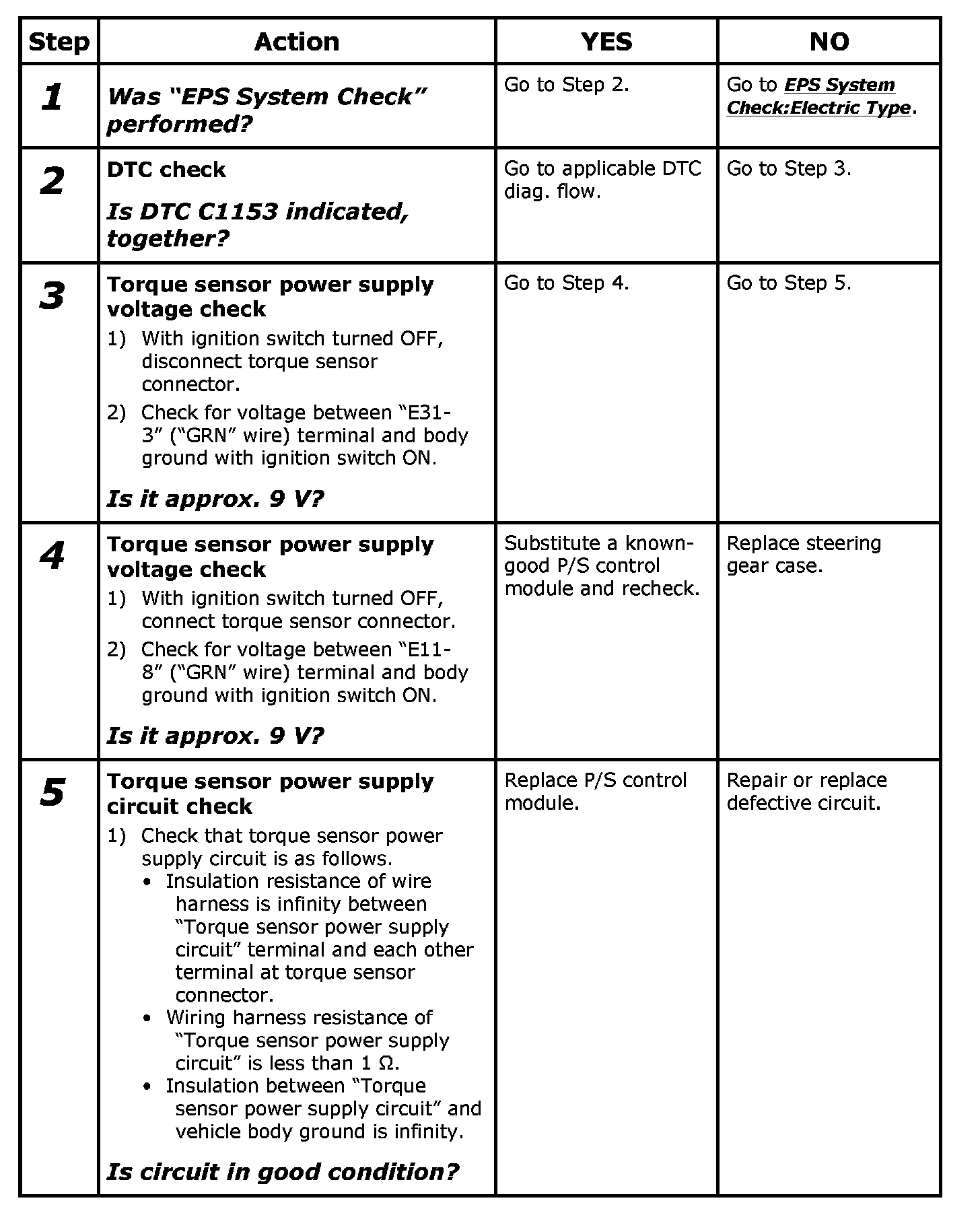

DTC Troubleshooting
Step 1-Step 5:
