DTC C1091: CAN Invalid Data from ECM

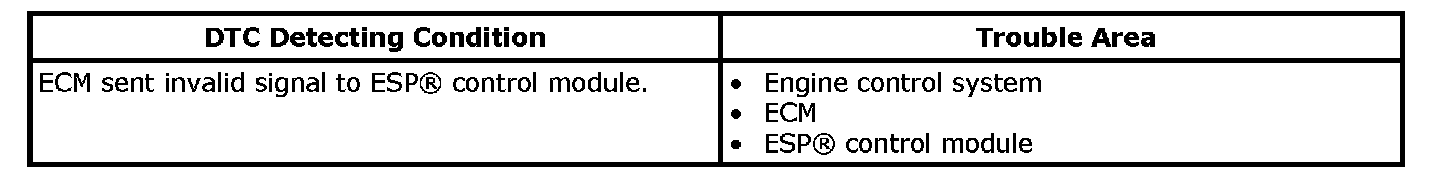

DTC Detecting Condition and Trouble Area

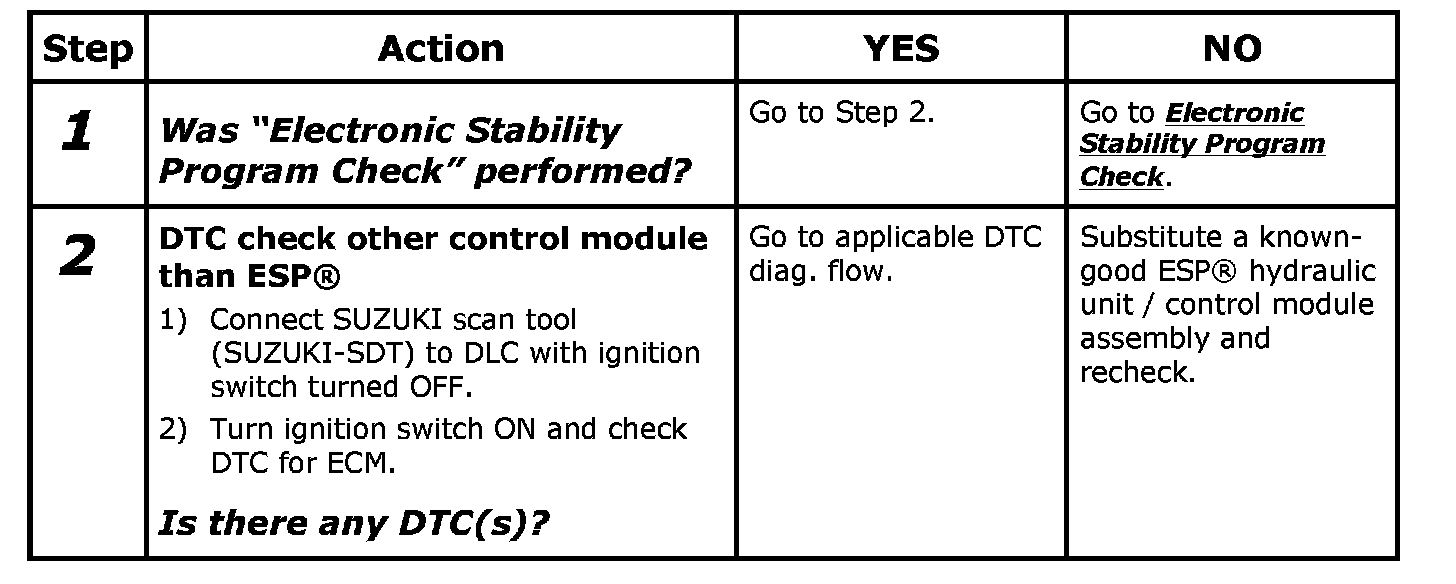

DTC Troubleshooting
Step 1-Step 2:
