FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Suzuki
>>
2009
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1075
C1075
DTC C1075: Steering Angle Sensor Calibration

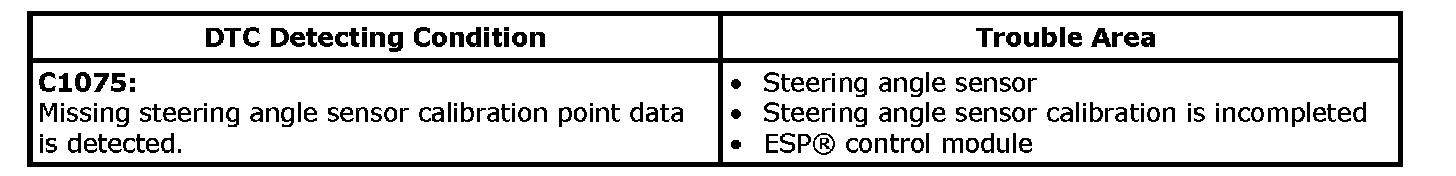

DTC Detecting Condition and Trouble Area

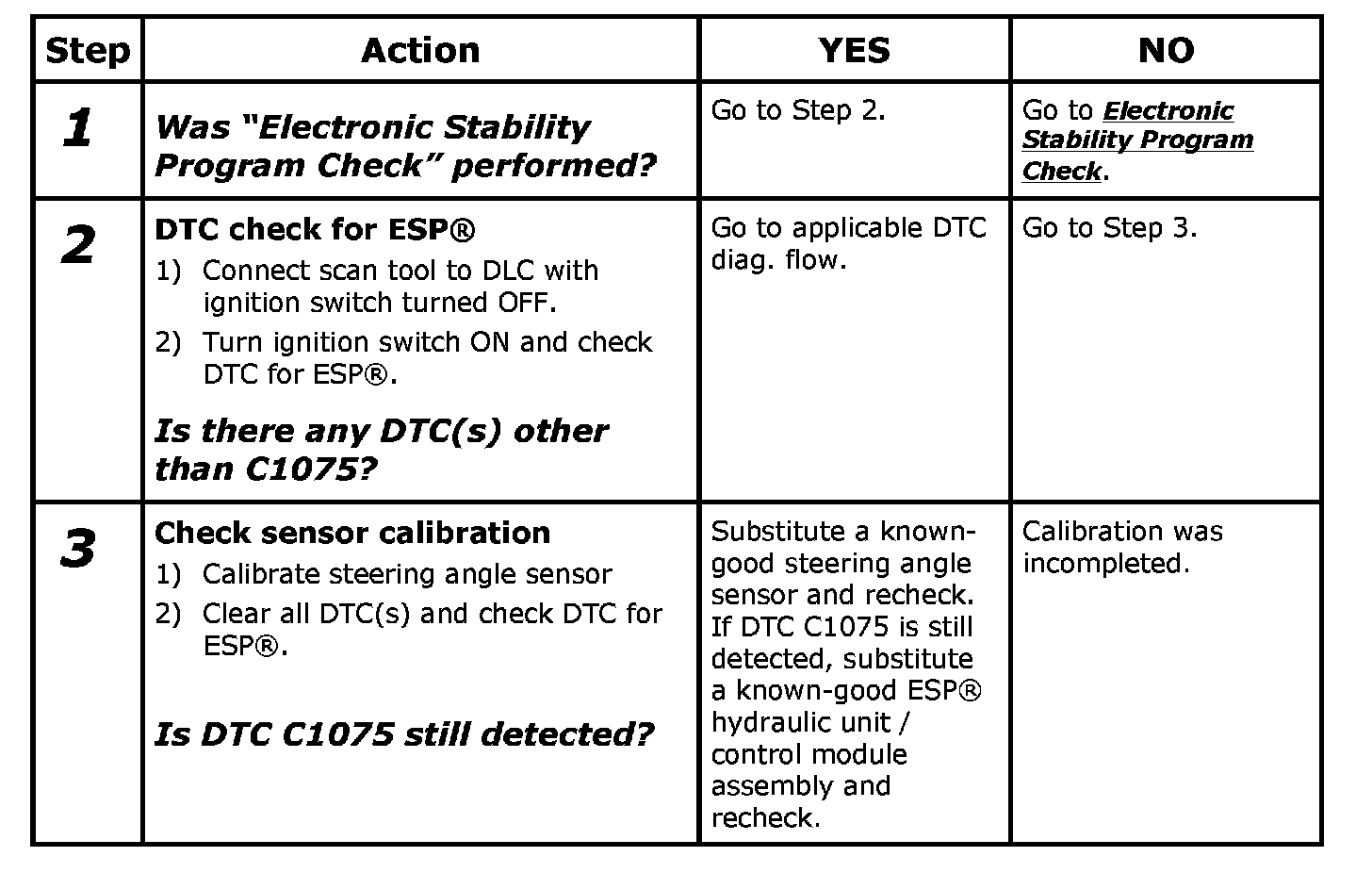

DTC Troubleshooting
Step 1-Step 3:
