ESP

DTC C1061: Pump Motor Circuit

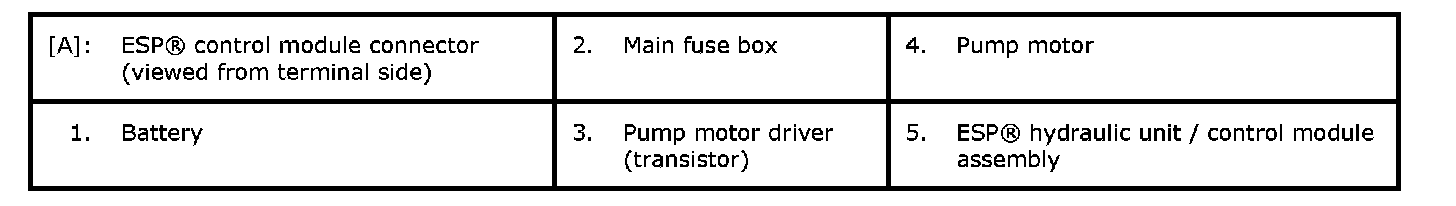

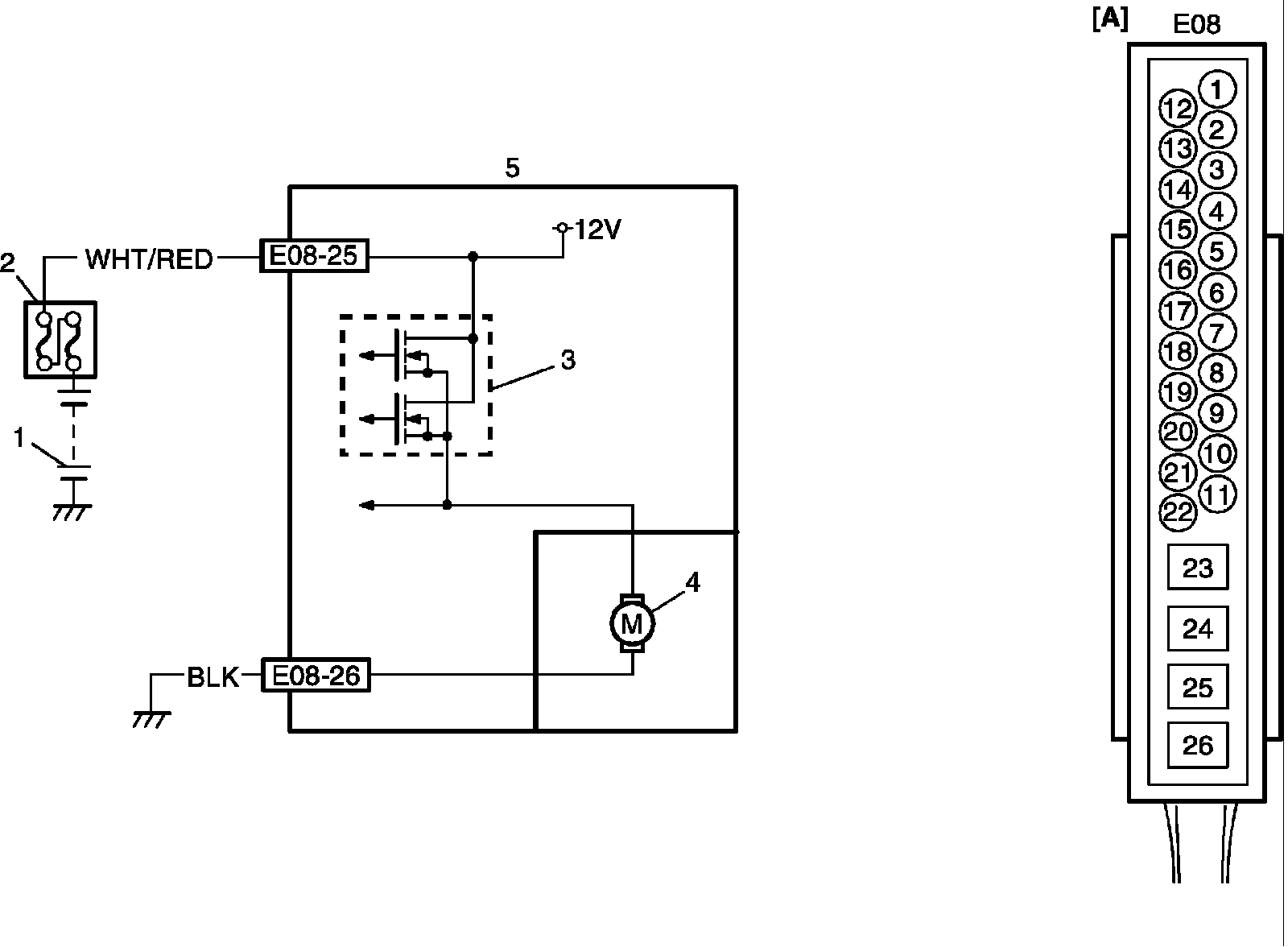

Wiring Diagram

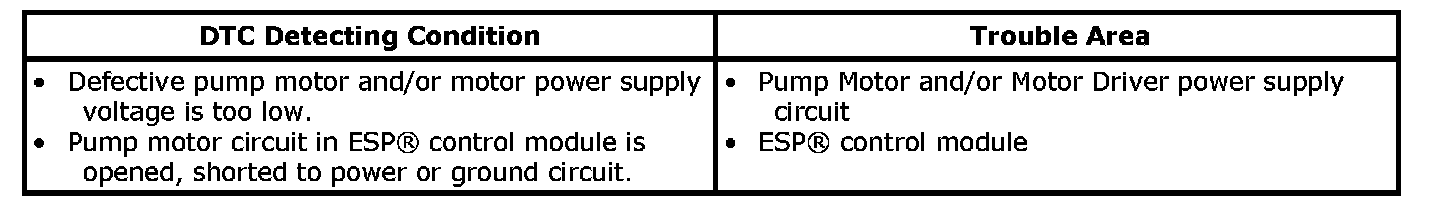

DTC Detecting Condition and Trouble Area





DTC Troubleshooting
Refer to "DTC Troubleshooting" under DTC C1061: Pump Motor Circuit. ABS
