Home >> Suzuki >> 2009 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1061 >> ABS

ABS

DTC C1061: Pump Motor Circuit

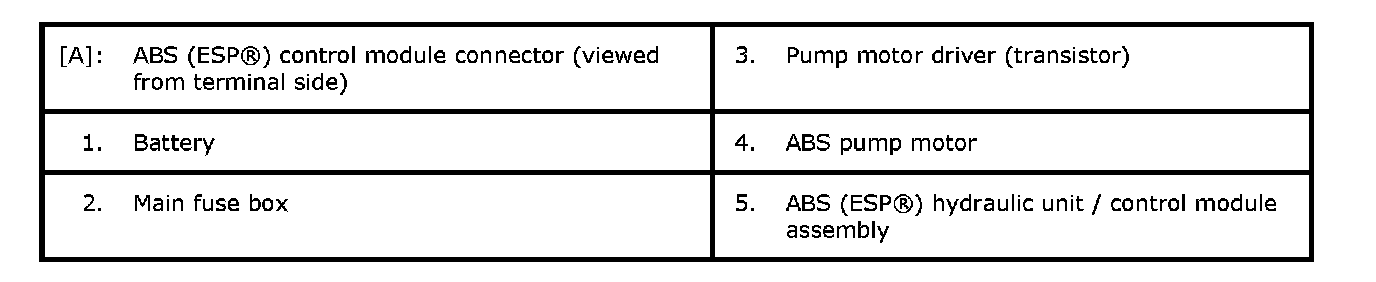

Wiring Diagram

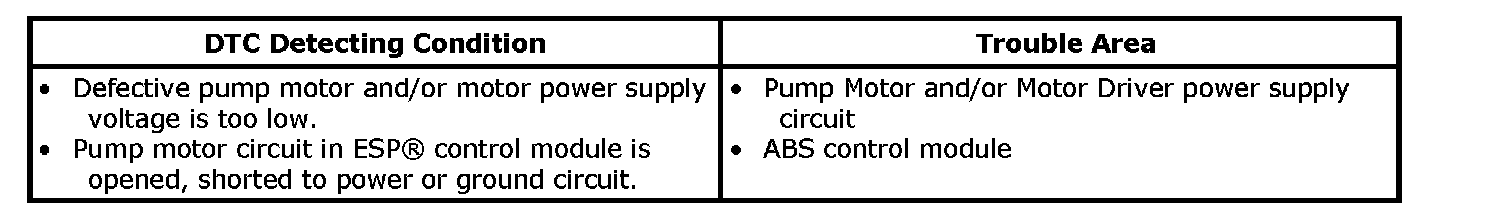

DTC Detecting Condition and Trouble Area

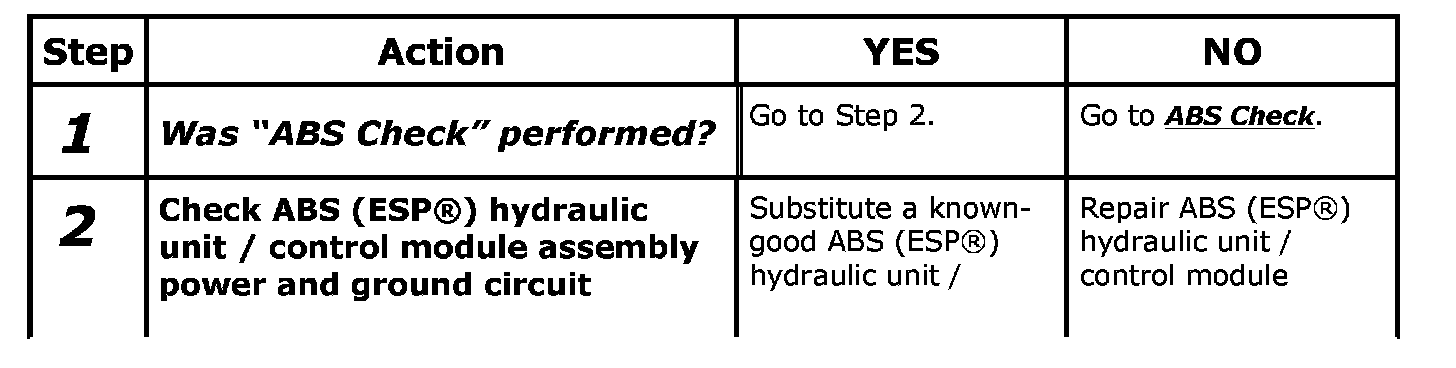

DTC Troubleshooting

Step 1-Step 2:




Step 2:
