DTC C1038: Steering Angle Sensor Detect Rolling Counter

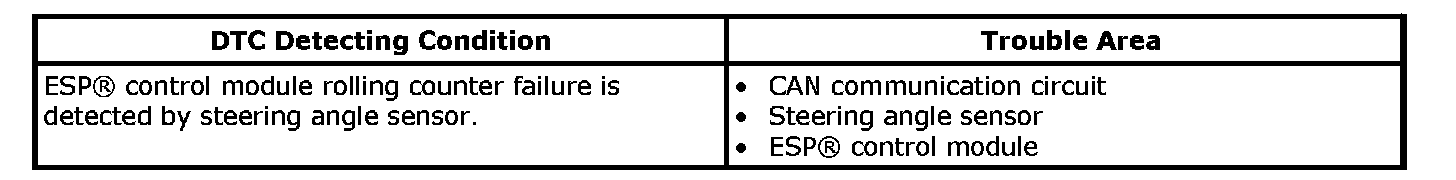

DTC Detecting Condition and Trouble Area

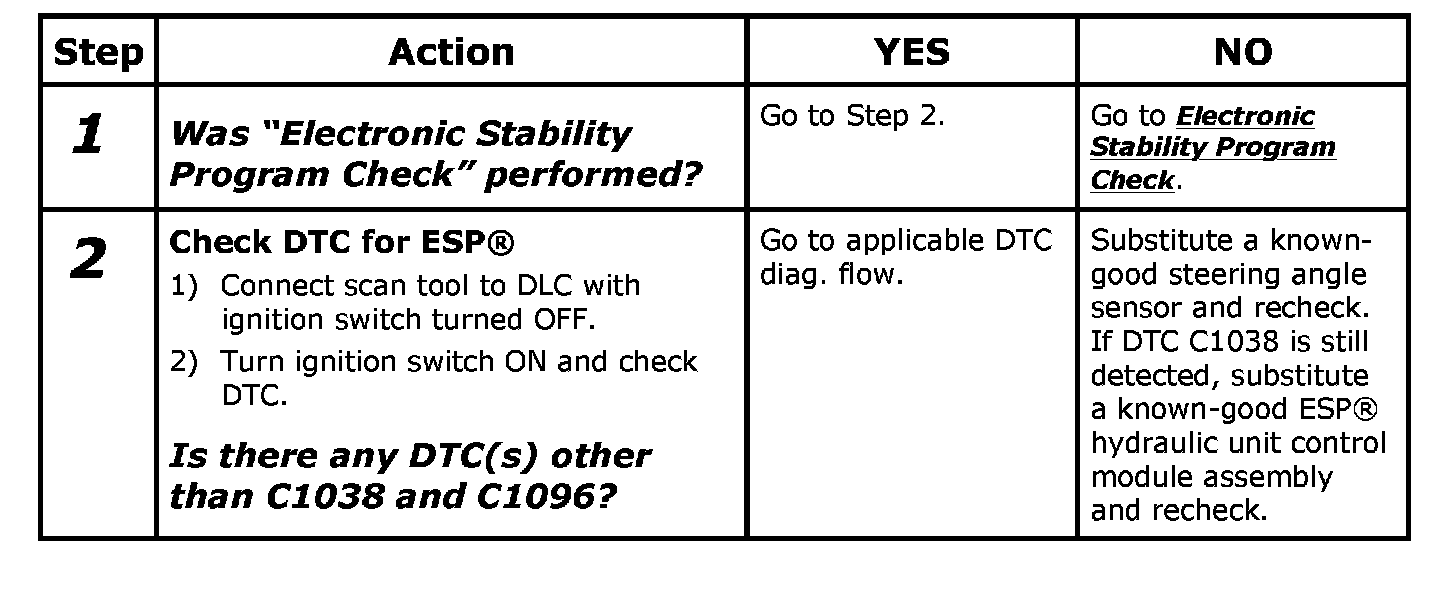

DTC Troubleshooting
Step 1-Step 2:
