C1037

DTC C1037: Steering Angle Sensor Power Supply Failure

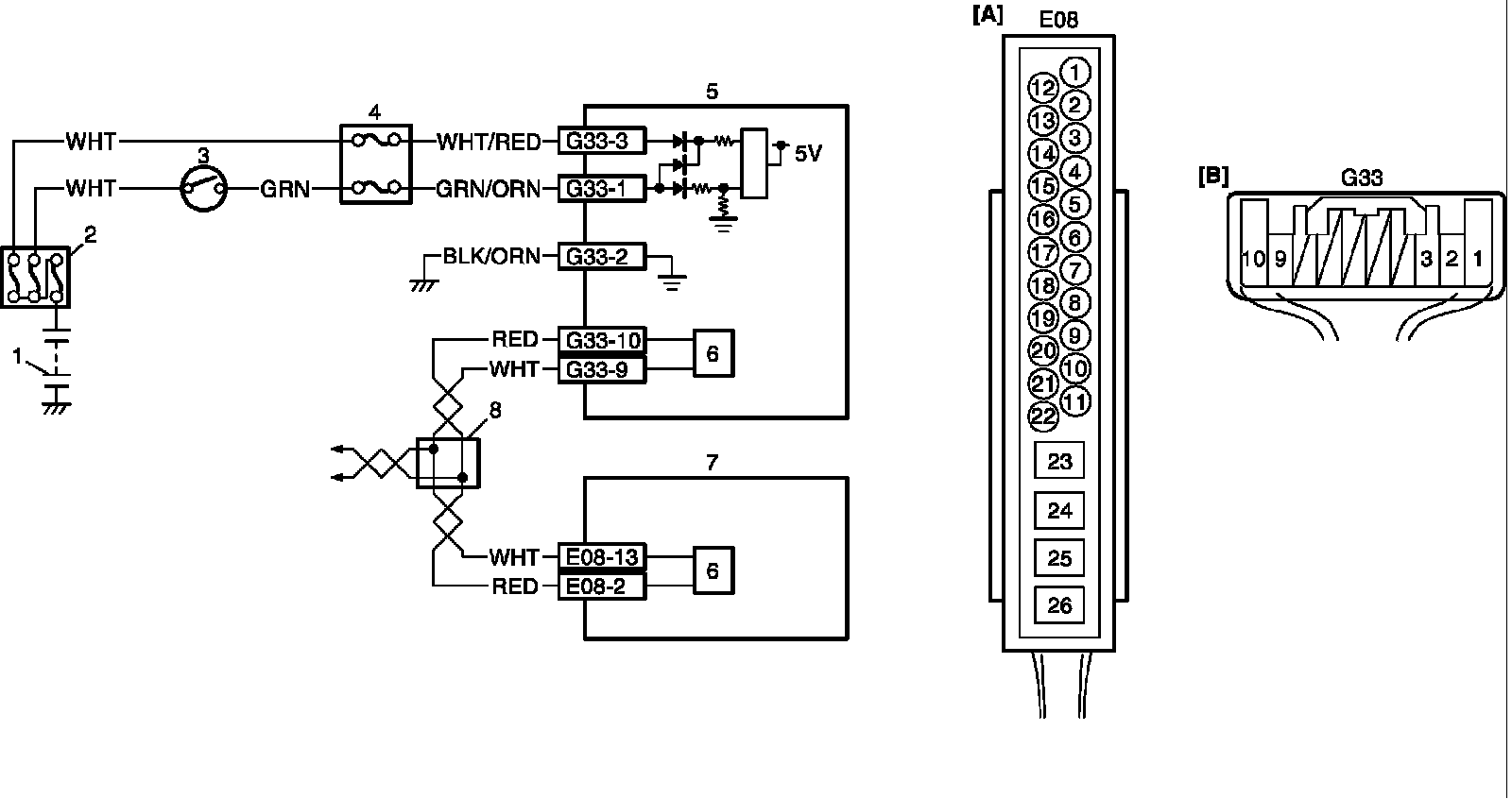

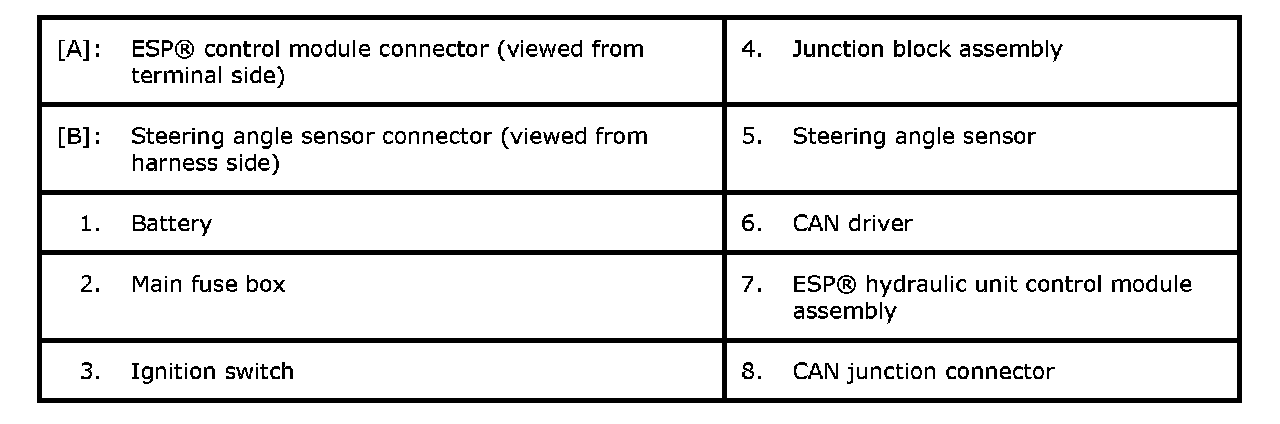

Wiring Diagram

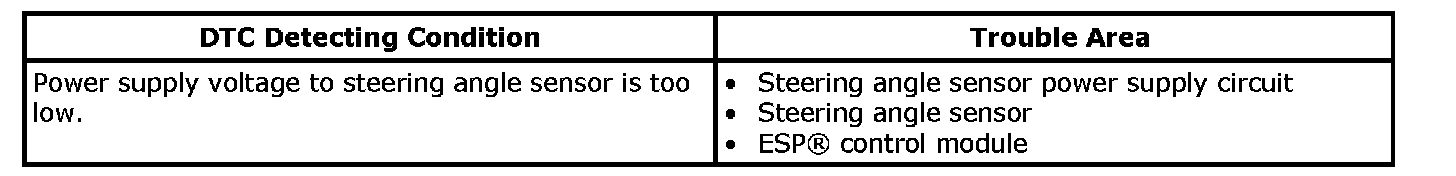

DTC Detecting Condition and Trouble Area





DTC Troubleshooting

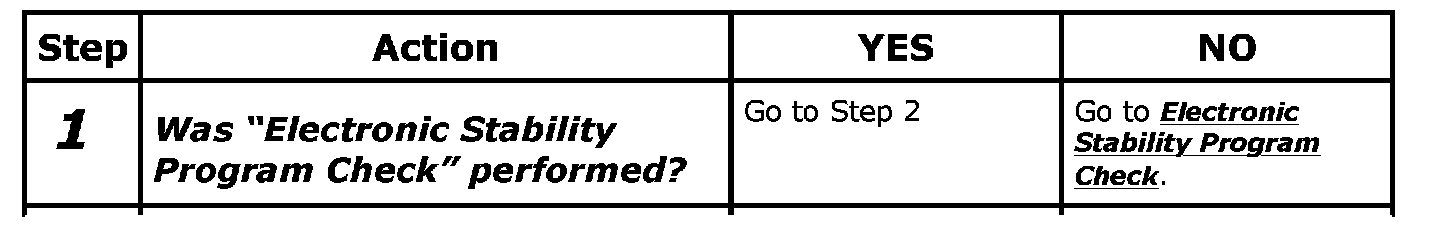

Step 1:

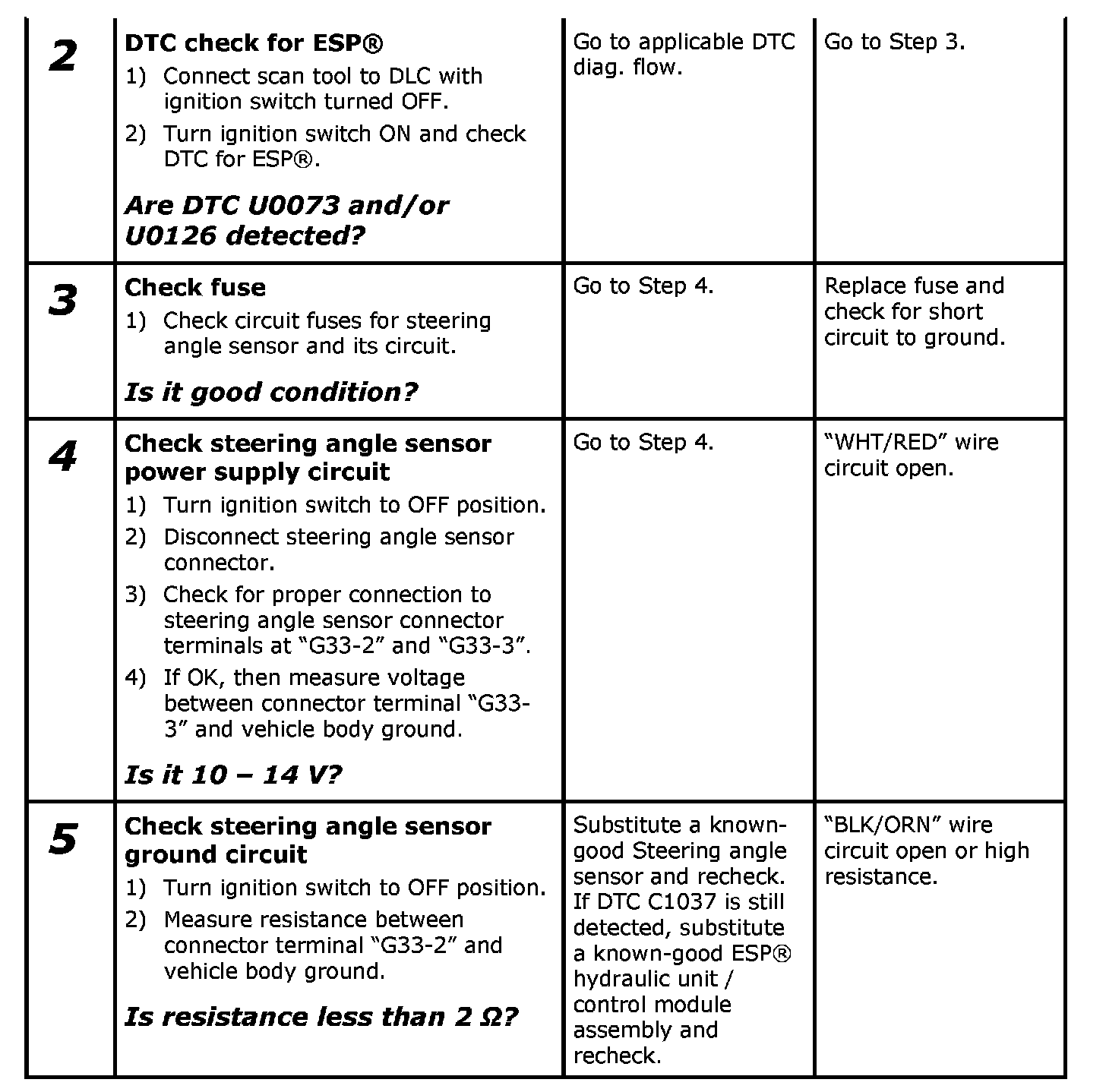

Step 2-Step 5:
