C1027

DTC C1027: ESP (R) OFF Switch

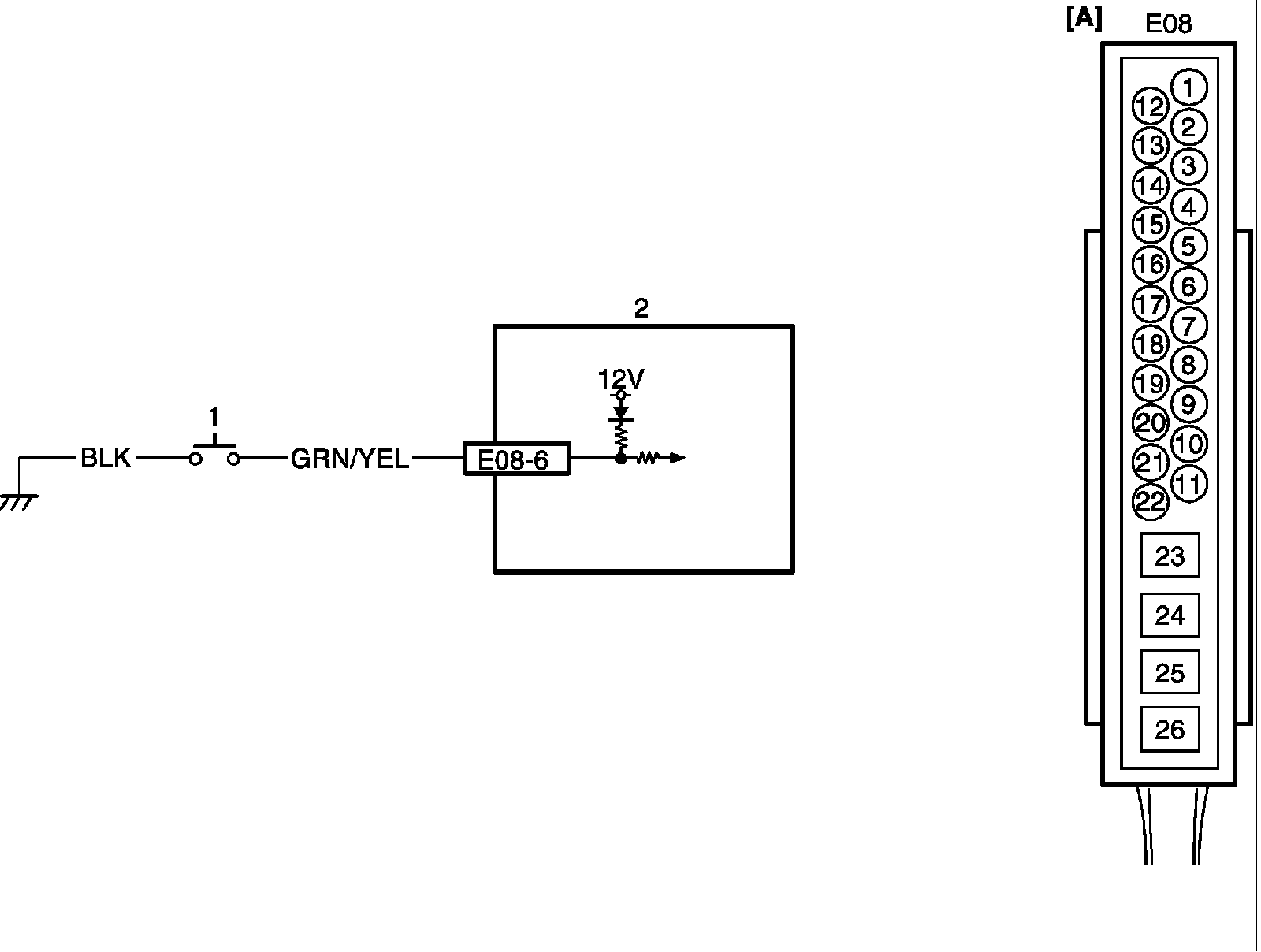

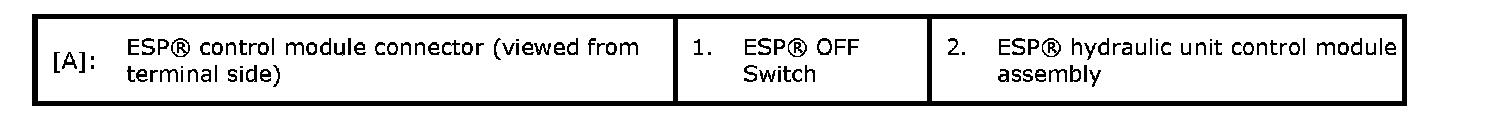

Wiring Diagram

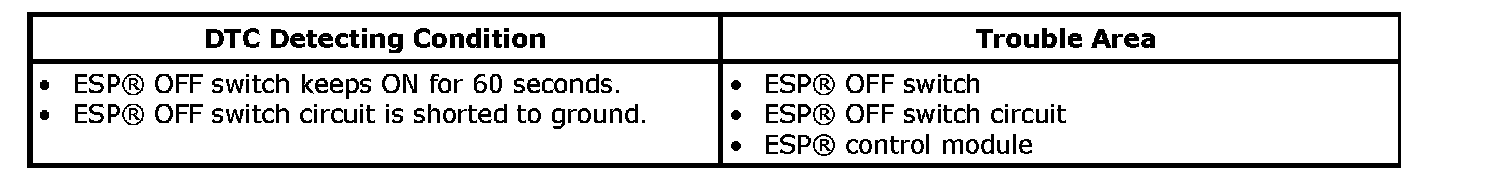

DTC Detecting Condition and Trouble Area





DTC Troubleshooting

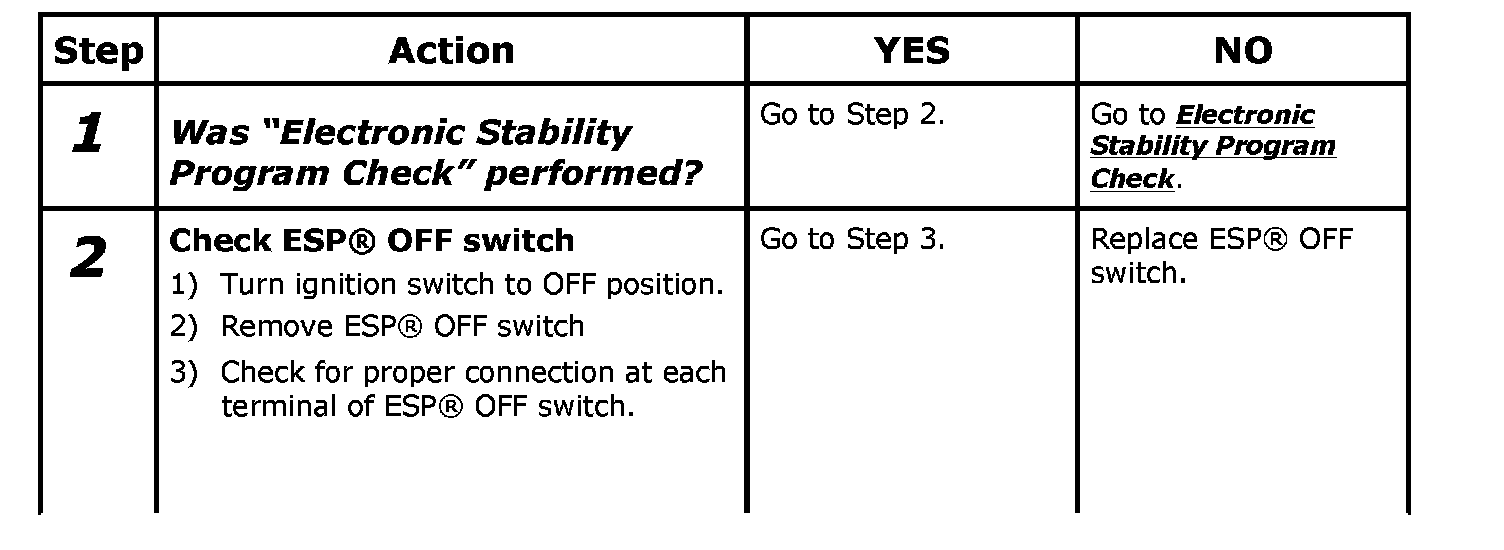

Step 1-Step 2:

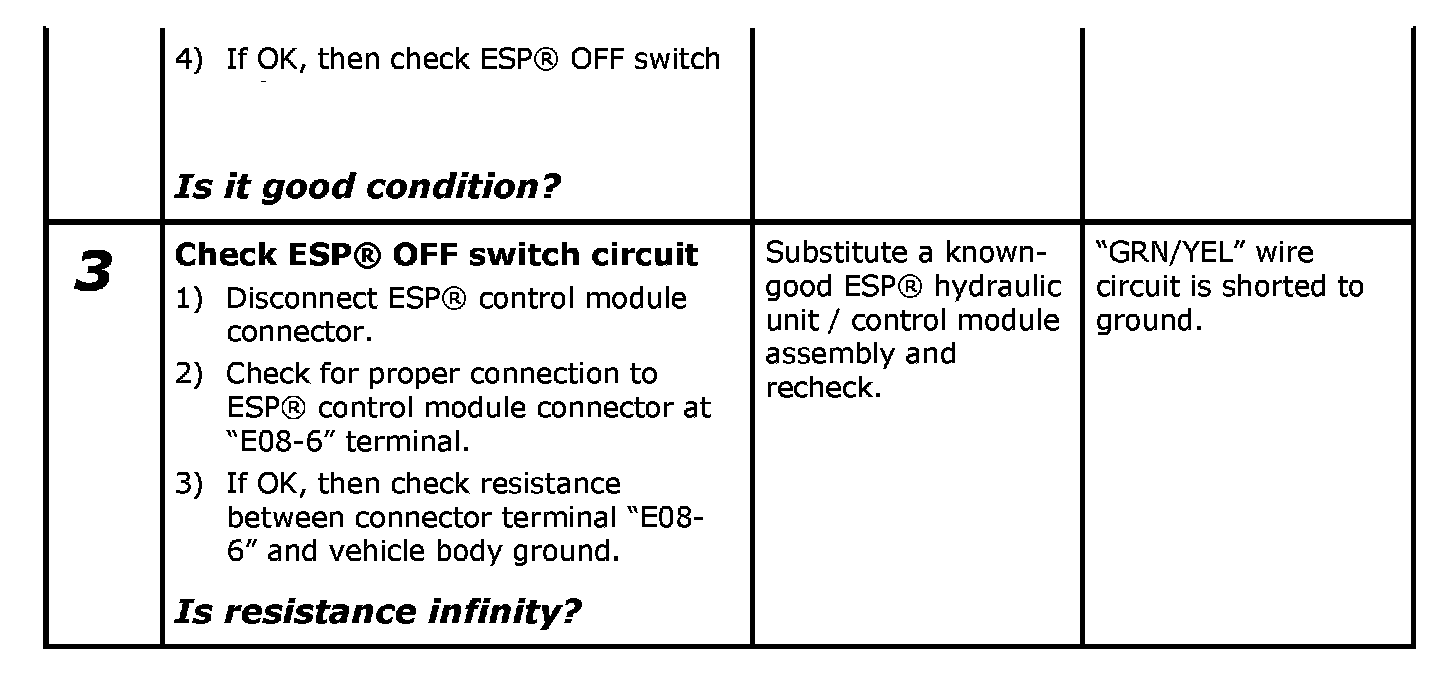

Step 3:
