DTC C1017 / C1023: Lateral G Sensor / Yaw Rate Sensor

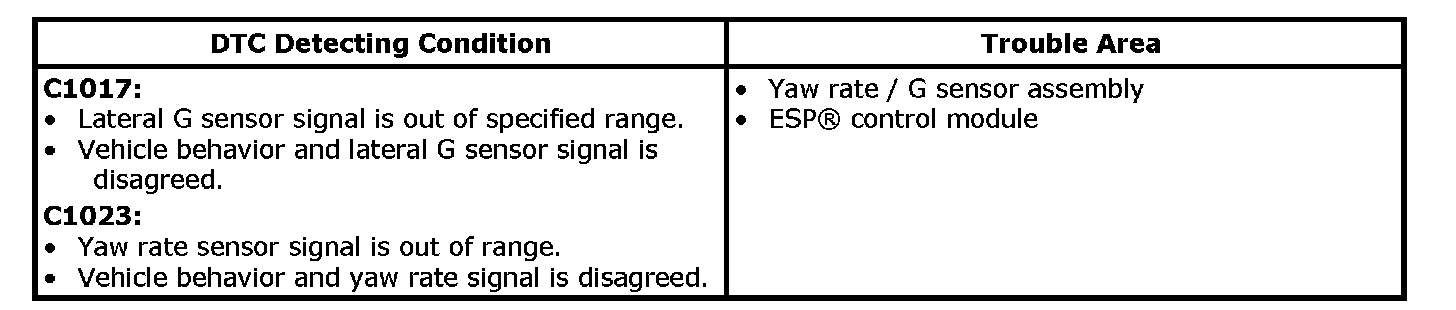

DTC Detecting Condition and Trouble Area

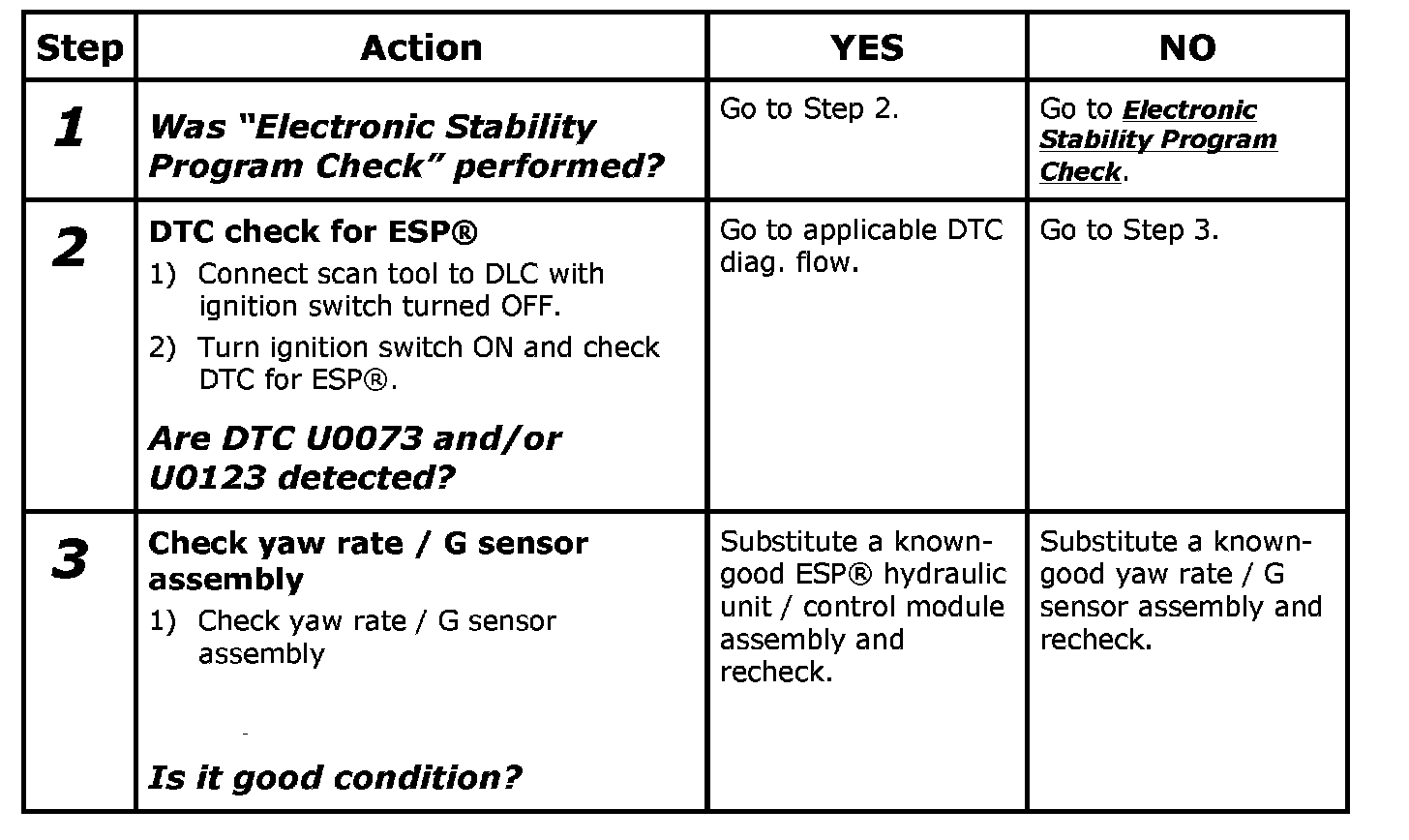

DTC Troubleshooting
Step 1-Step 3:
