ESP

DTC C1016: Brake Light Switch

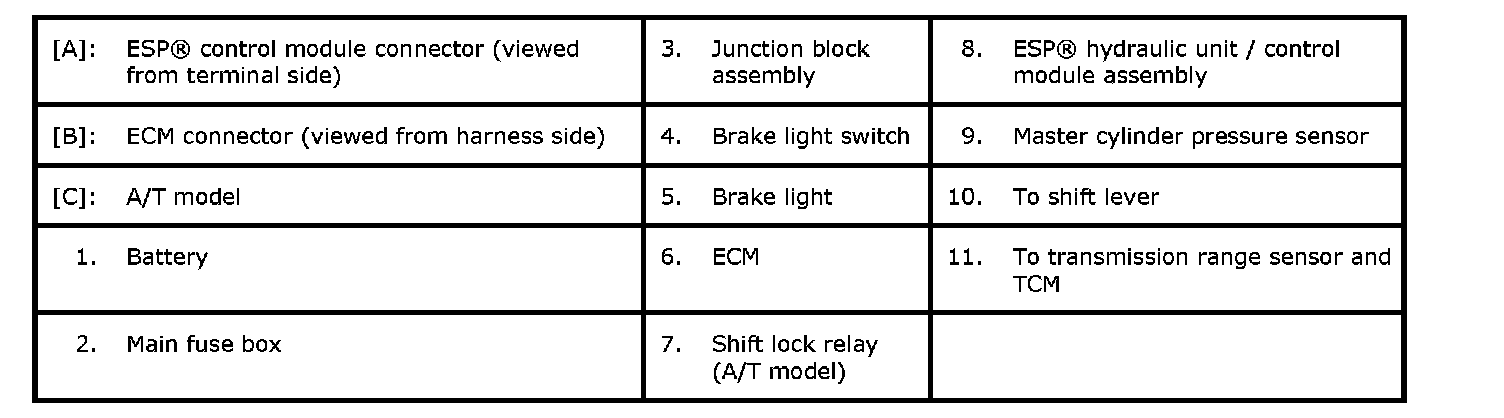

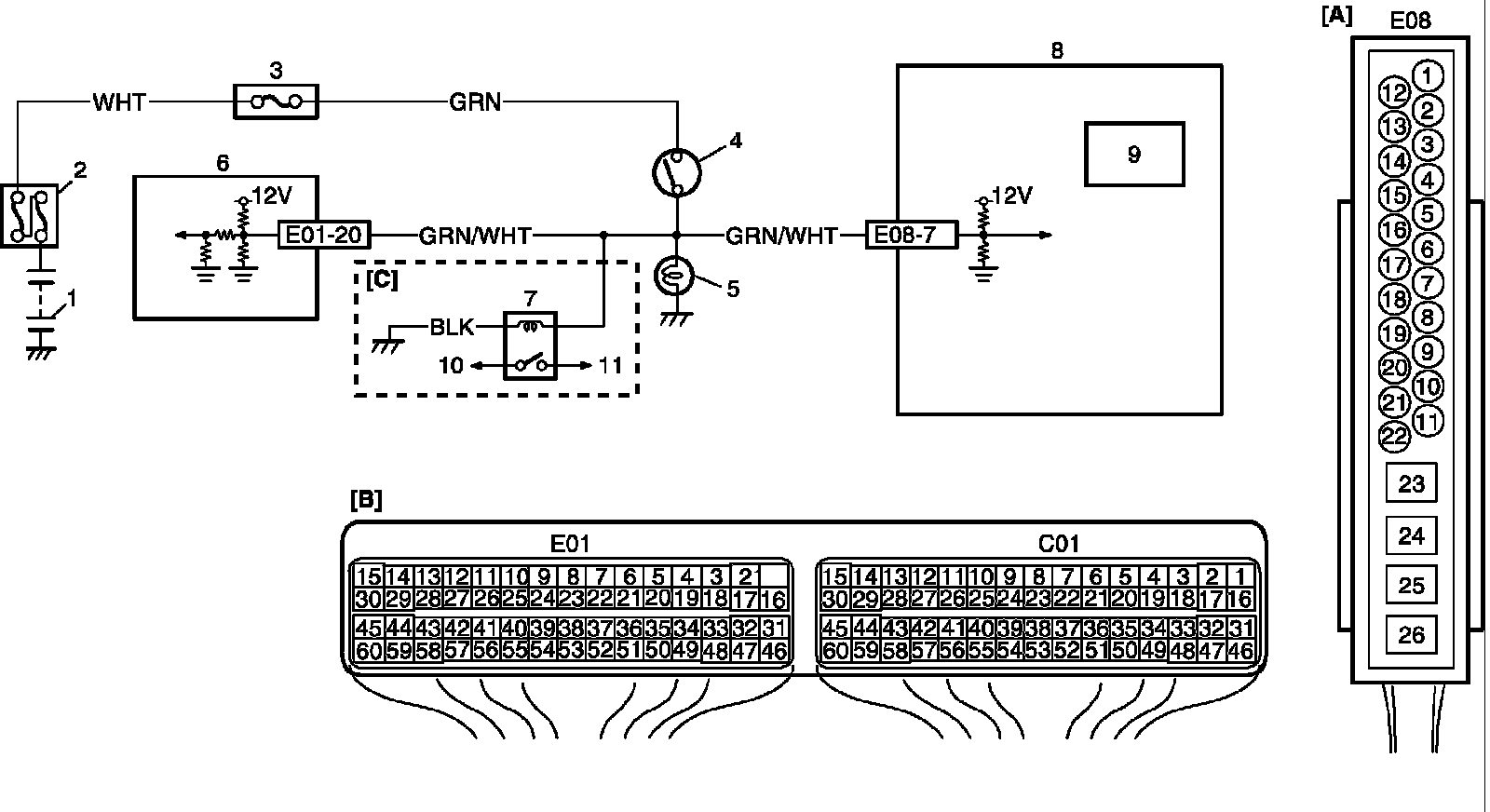

Wiring Diagram

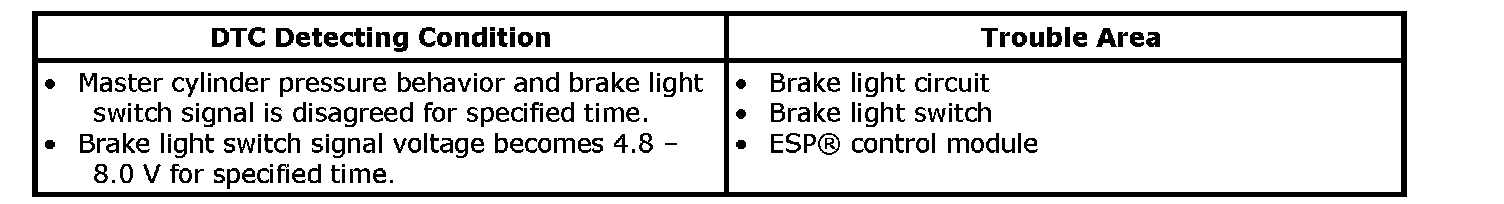

DTC Detecting Condition and Trouble Area





DTC Troubleshooting

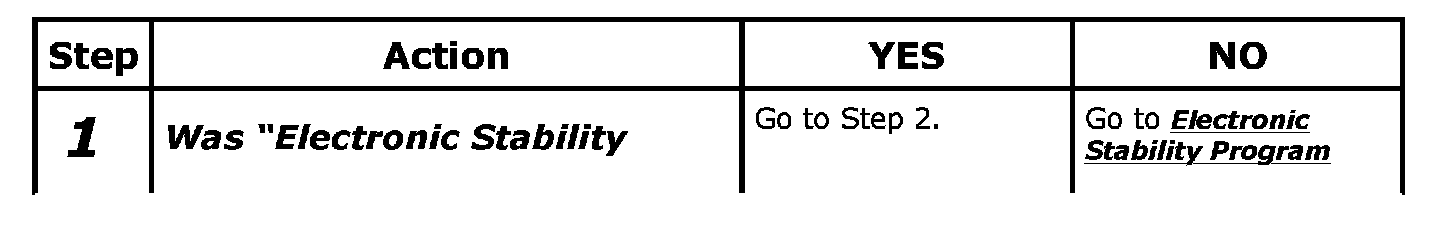

Step 1:

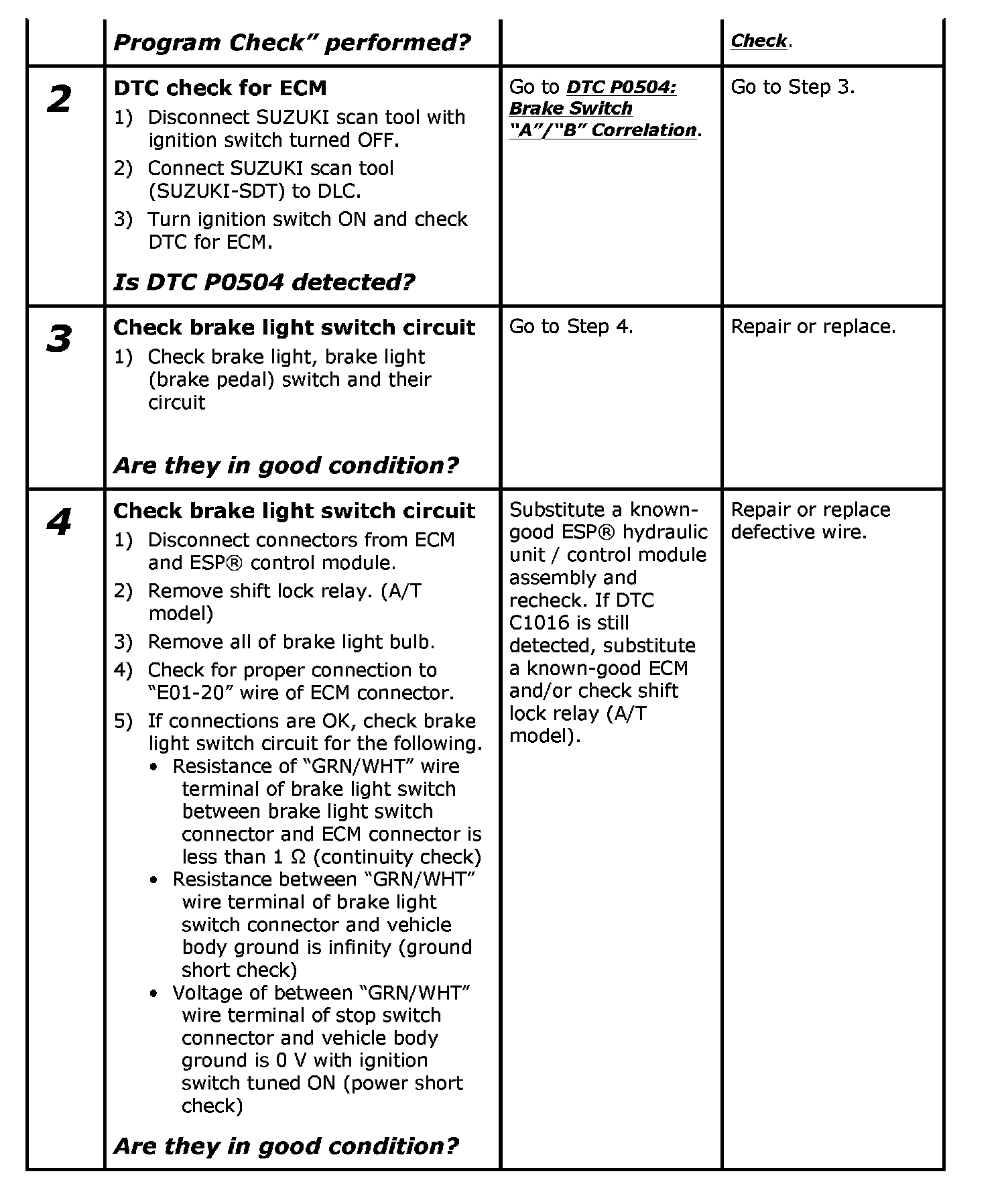

Step 2-Step 4:
