ABS

DTC C1016: Brake Light Switch

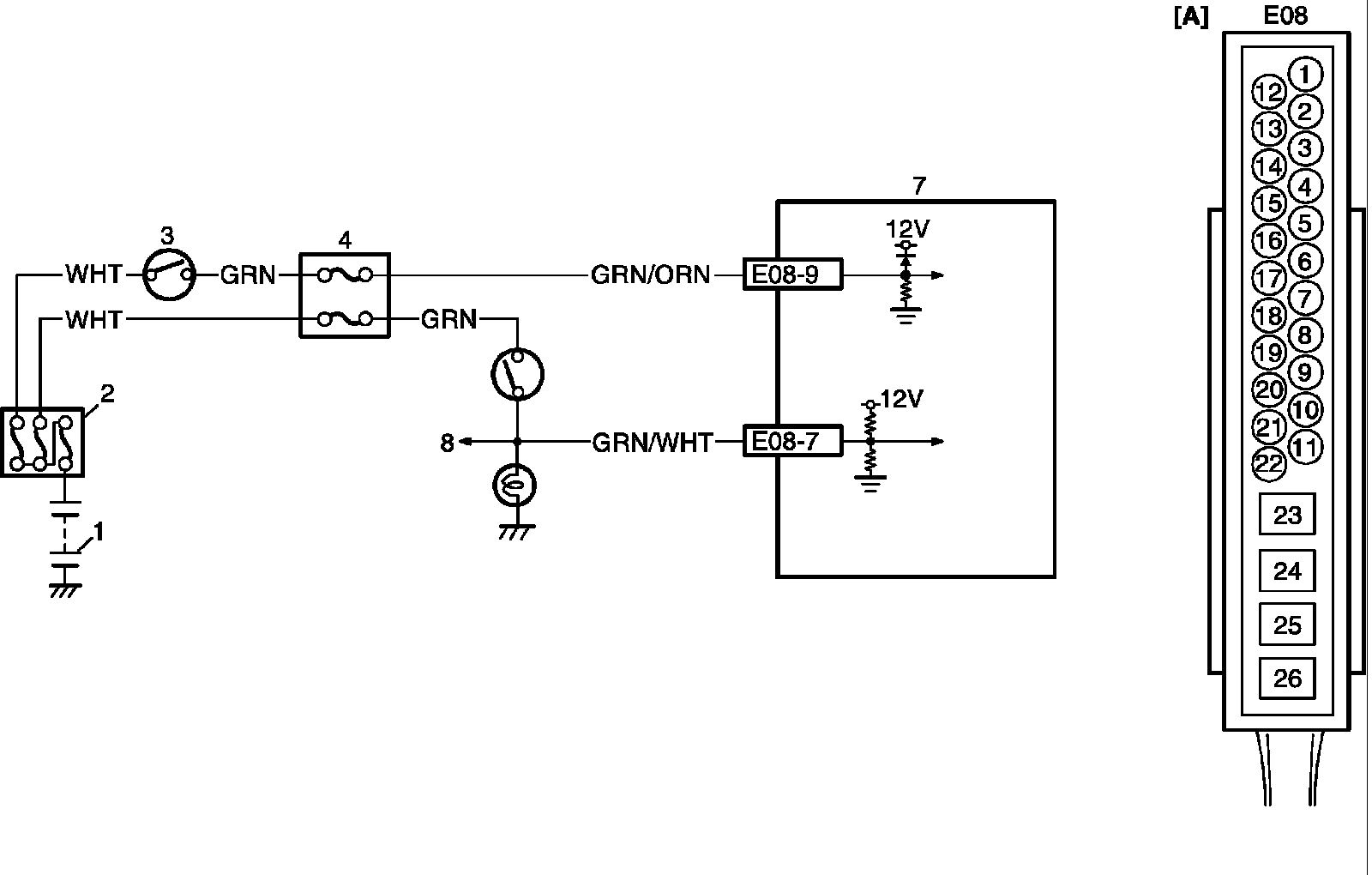

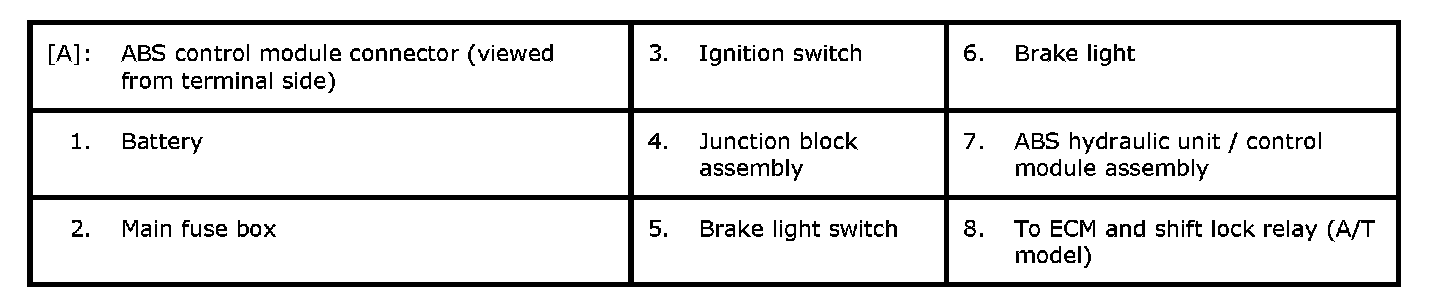

Wiring Diagram

DTC Detecting Condition and Trouble Area

NOTE: When a vehicle is lifted up and its wheel(s) is turned, this DTC is set. In such case, clear the DTC and check again.

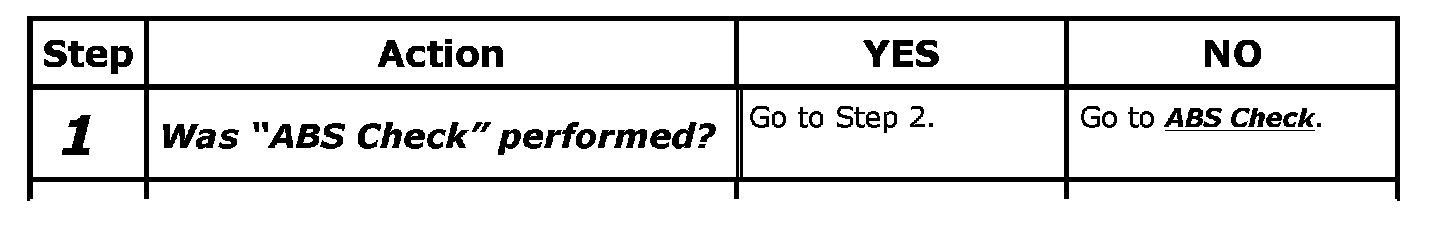

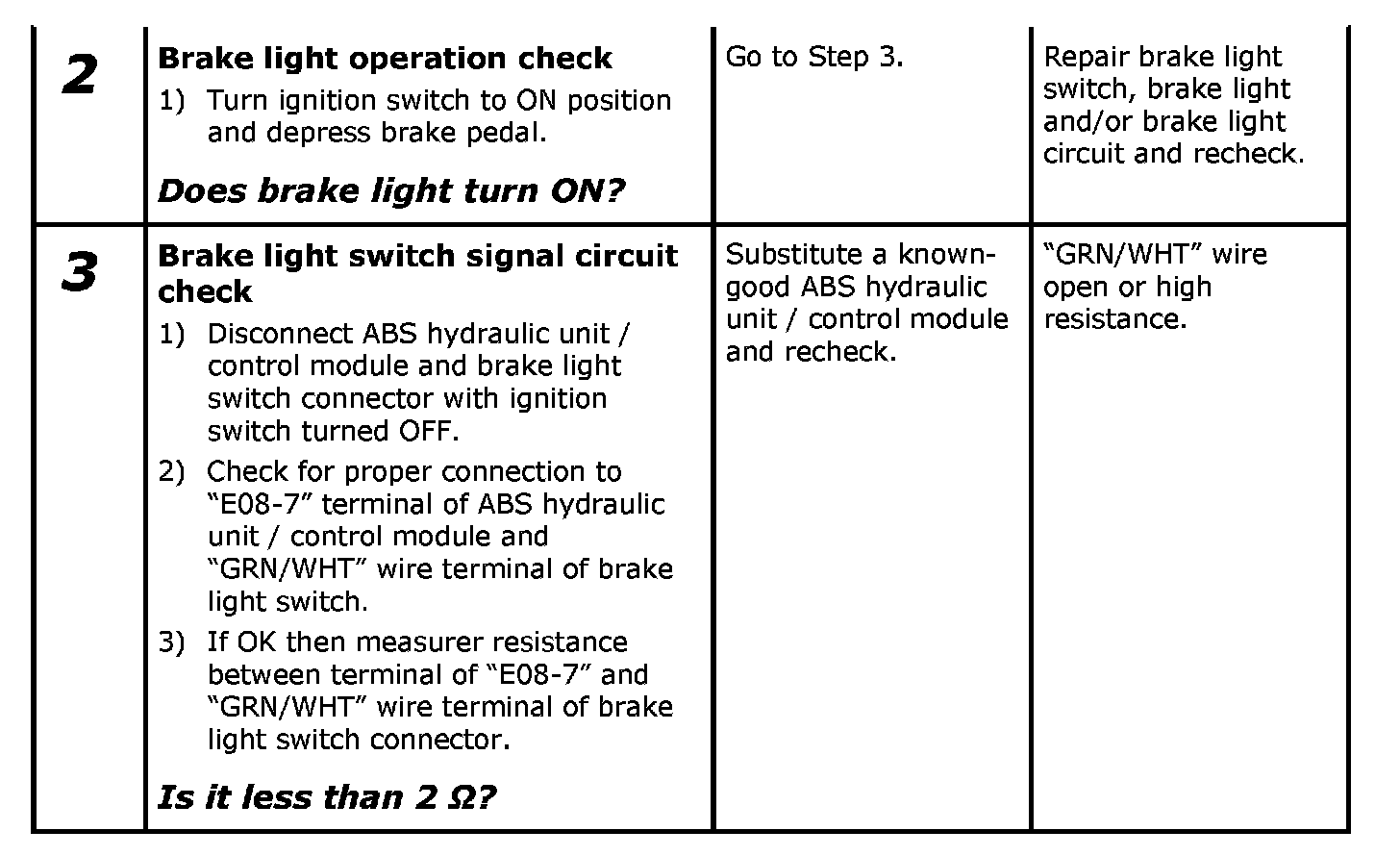

Troubleshooting
