B1571
B1571
DTC B1571: Combination Meter Spec Signal Failure
DTC Detecting Condition and Trouble Area
DTC Detecting Condition And Trouble Area:
DTC Troubleshooting

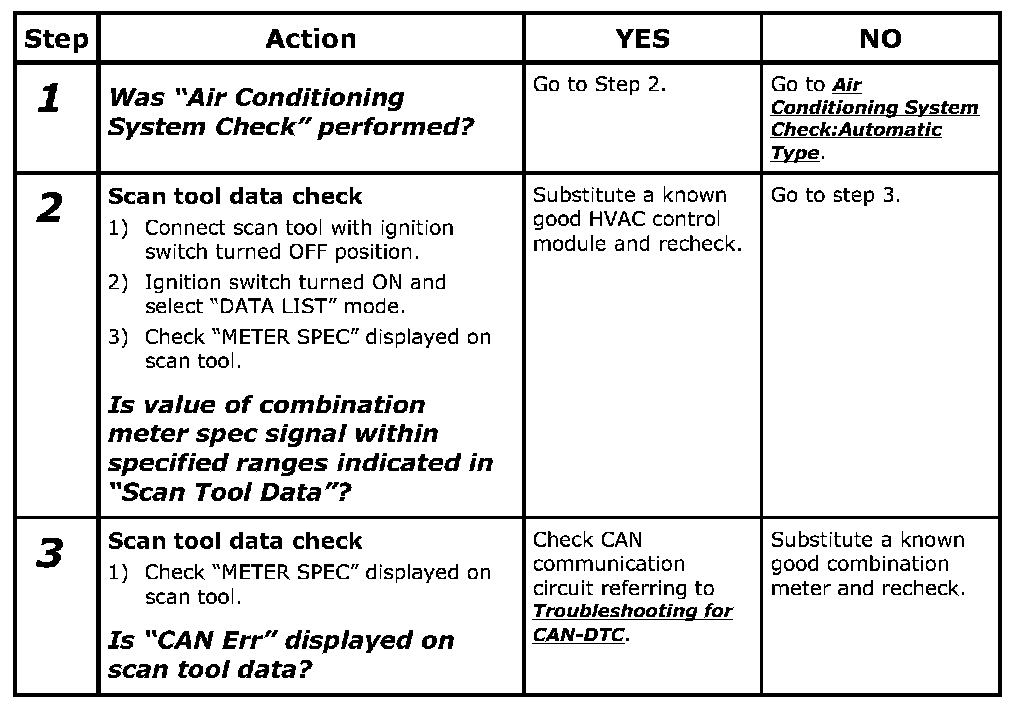

Step 1-3:
