DTC B1562: Outside Air Temperature Signal Failure

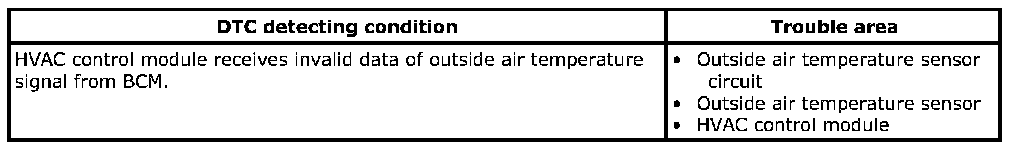

DTC Detecting Condition and Trouble Area
DTC Detecting Condition And Trouble Area:

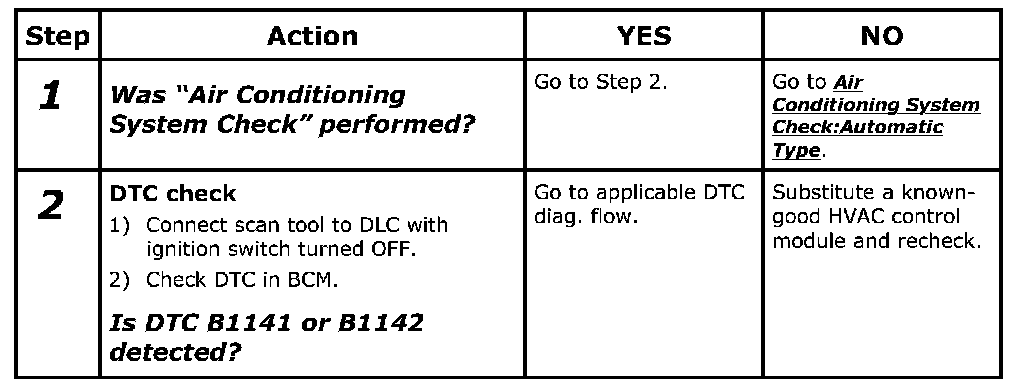

DTC Troubleshooting
Step 1-2:
