DTC B1553: CAN Communication Circuit Malfunction

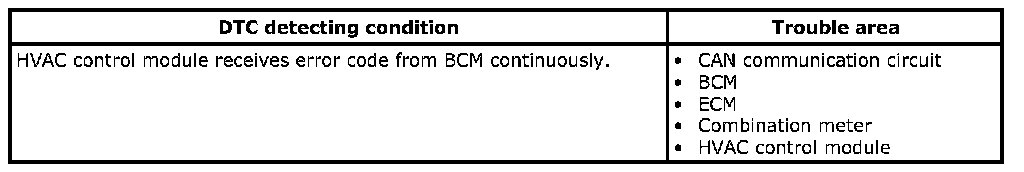

DTC Detecting Condition and Trouble Area
DTC Detecting Condition And Trouble Area:

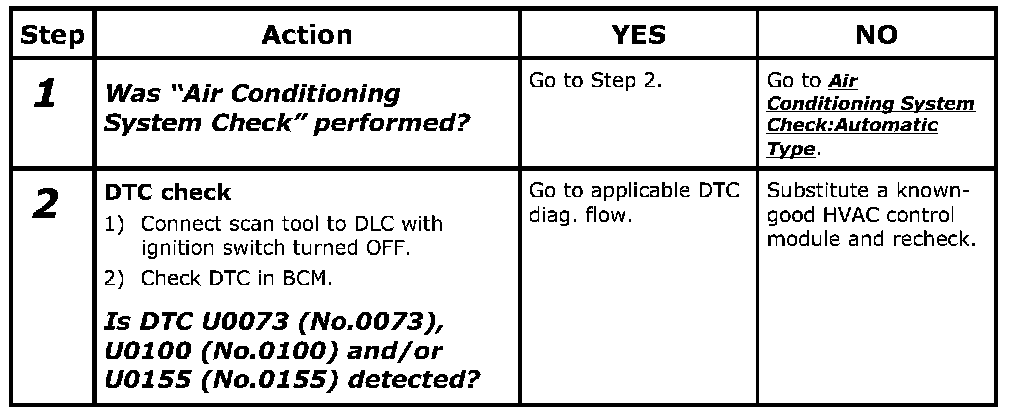

DTC Troubleshooting
Step 1-2:
