A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1552
B1552
DTC B1552: HVAC Control Module Check Sum Error

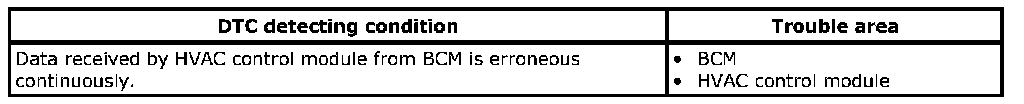

DTC Detecting Condition and Trouble Area
DTC Detecting Condition And Trouble Area:

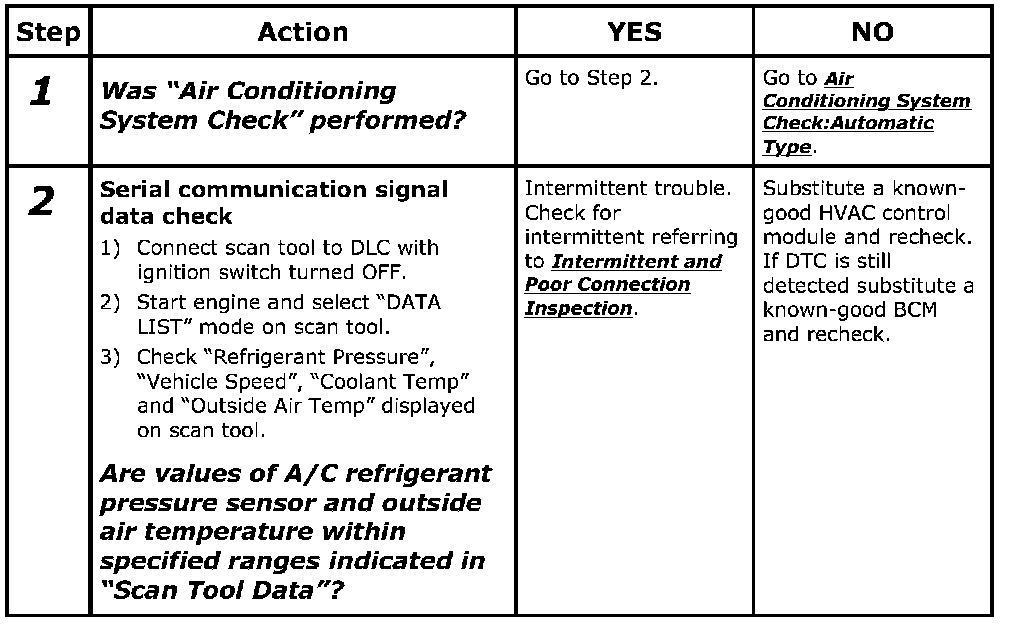

DTC Troubleshooting
Step 1-2:
