B1062

DTC B1062 / B1066: Side-Air Bag Circuit Low Resistance

(DTC B1062: Driver Side-Air Bag Circuit Low Resistance)
(DTC B1066: Passenger Side-Air Bag Circuit Low Resistance)

Wiring Diagram

Wiring Diagram:

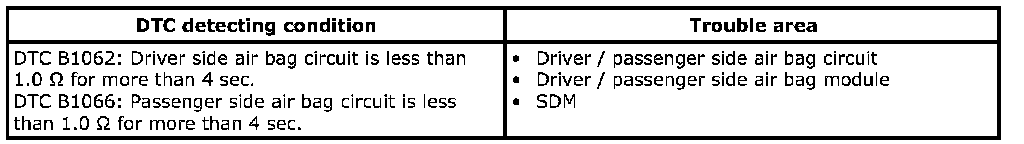

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

DTC Troubleshooting

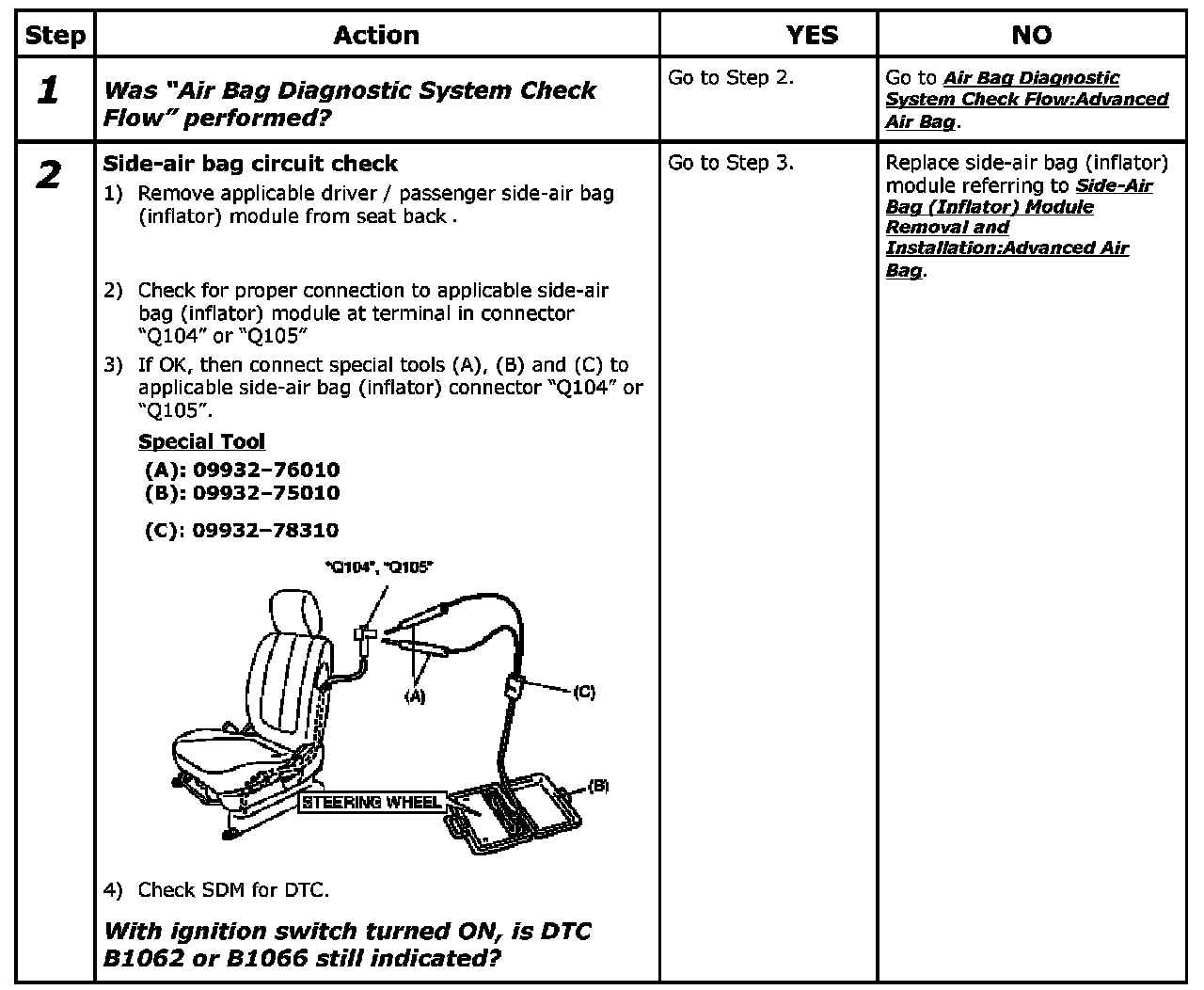

Step 1-2:

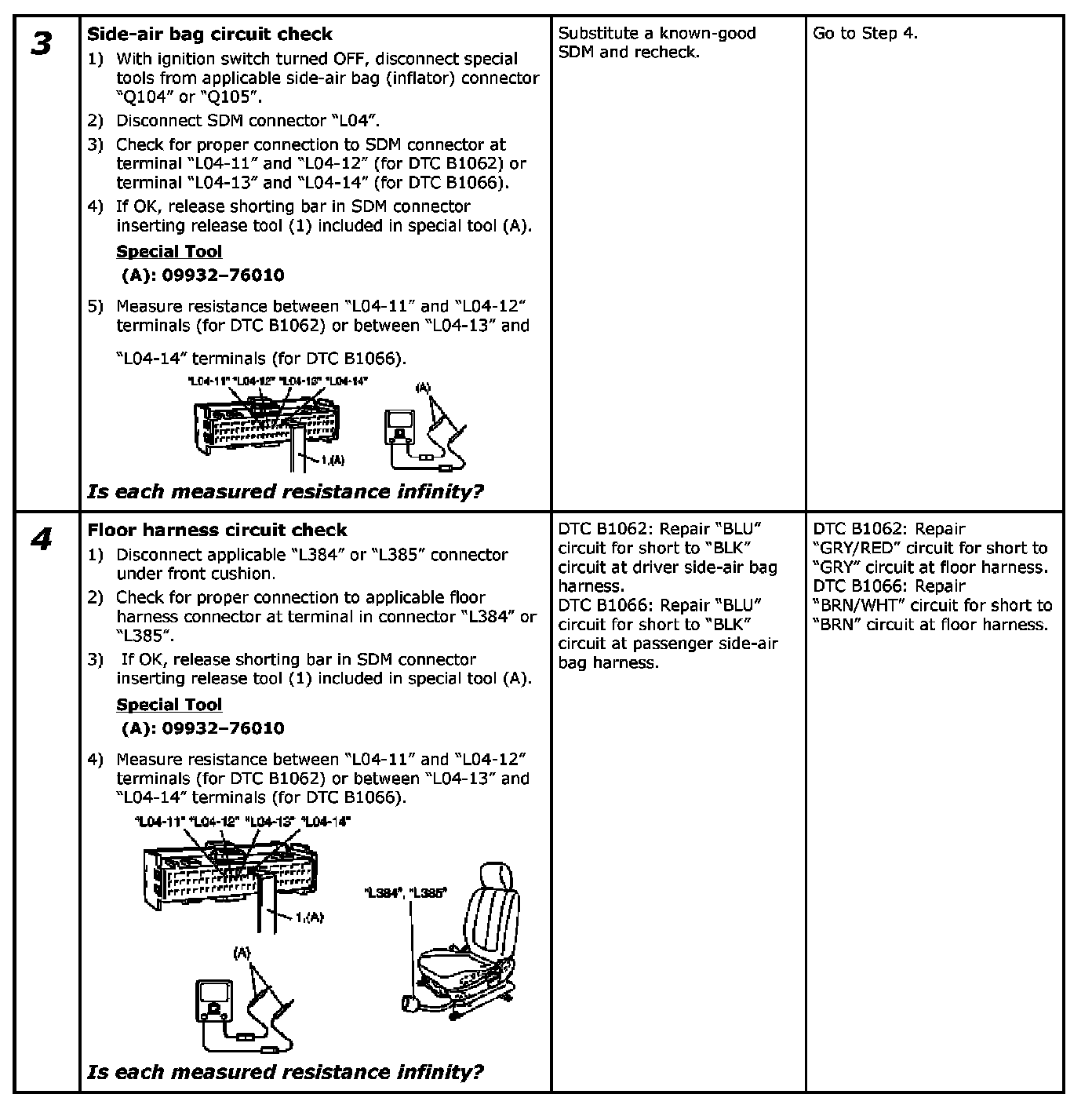

Step 3-4:

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components, ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
