Advanced Air Bag

DTC B1053 / B1057: Seat Belt Pretensioner Shorted to Ground

(DTC B1053: Driver Seat Belt Pretensioner shorted to ground)
(DTC B1057: Passenger Seat Belt Pretensioner shorted to ground)

Wiring Diagram

Wiring Diagram:

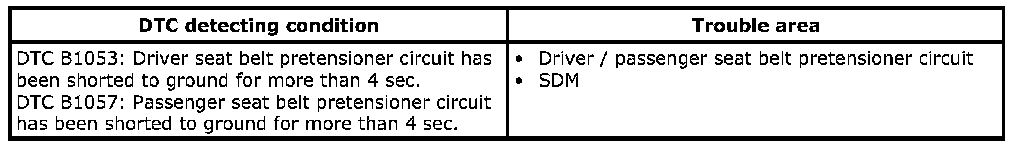

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

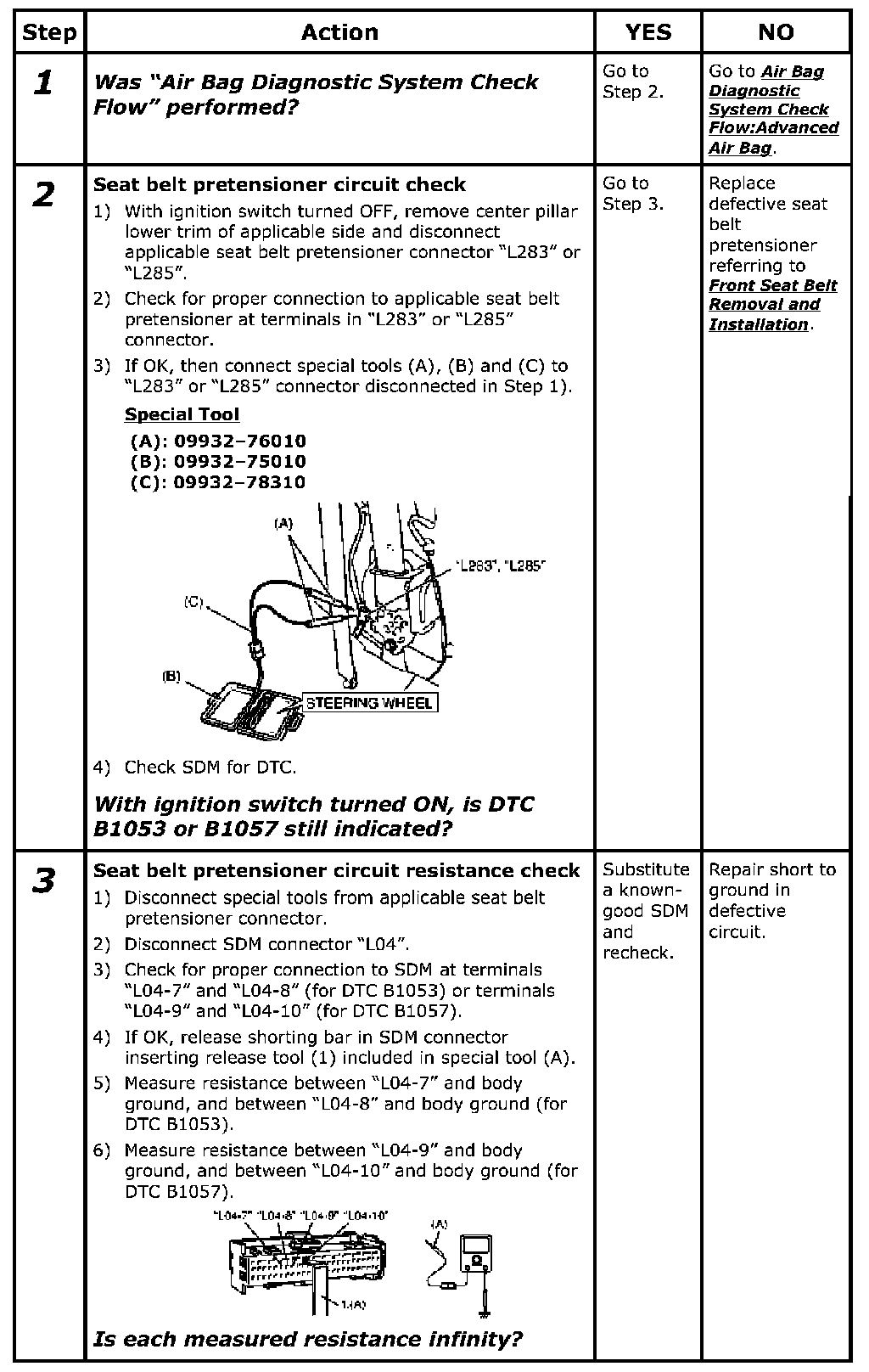

DTC Troubleshooting

Step 1-3:

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
