Advanced Air Bag

DTC B1052 / B1056: Seat Belt Pretensioner Circuit Low Resistance

(DTC B1052: Driver Seat Belt Pretensioner Circuit Low Resistance)
(DTC B1056: Passenger Seat Belt Pretensioner Circuit Low Resistance)

Wiring Diagram

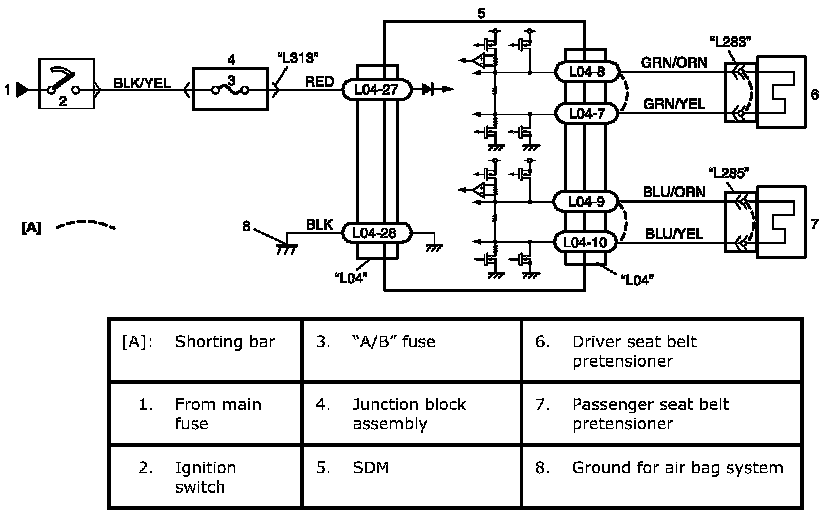

Wiring Diagram:

DTC Detecting Condition and Trouble Area

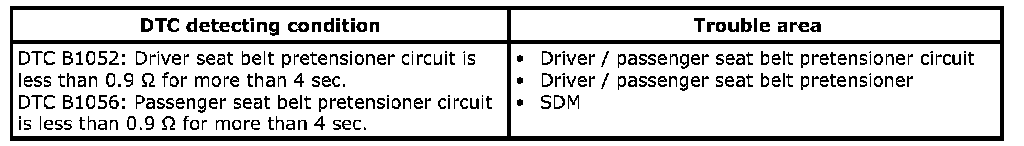

DTC Detecting Condition And Trouble Area:

DTC Troubleshooting

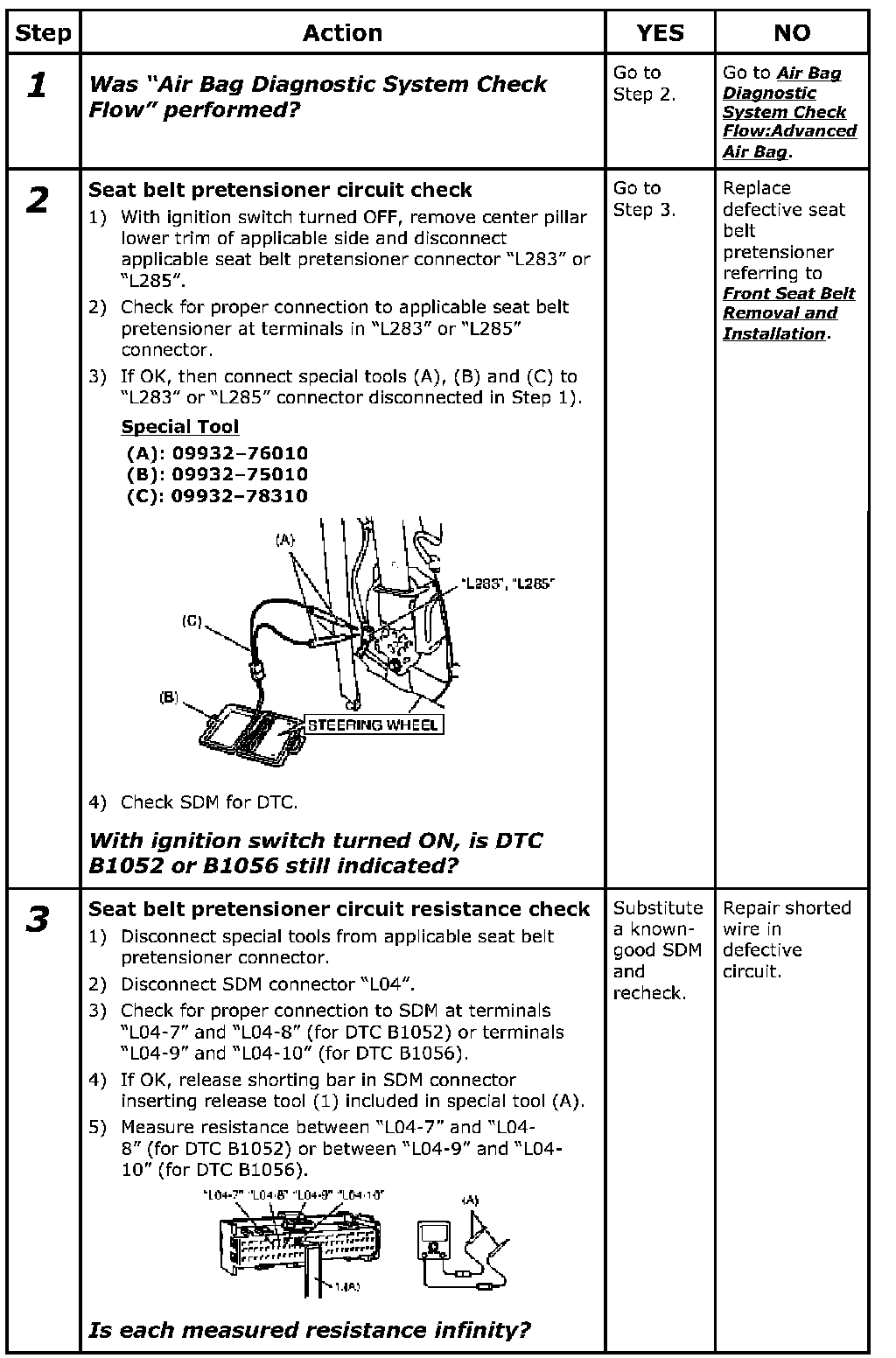

Step 1-3:

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
