Advanced Air Bag

DTC B1051 / B1055: Seat Belt Pretensioner Circuit High Resistance

(DTC B1051: Driver Seat Belt Pretensioner Circuit High Resistance)
(DTC B1055: Passenger Seat Belt Pretensioner Circuit High Resistance)

Wiring Diagram

Wiring Diagram:

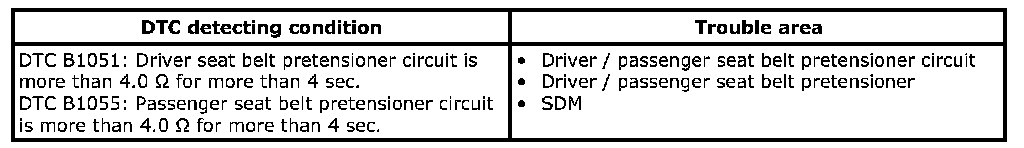

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

DTC Troubleshooting

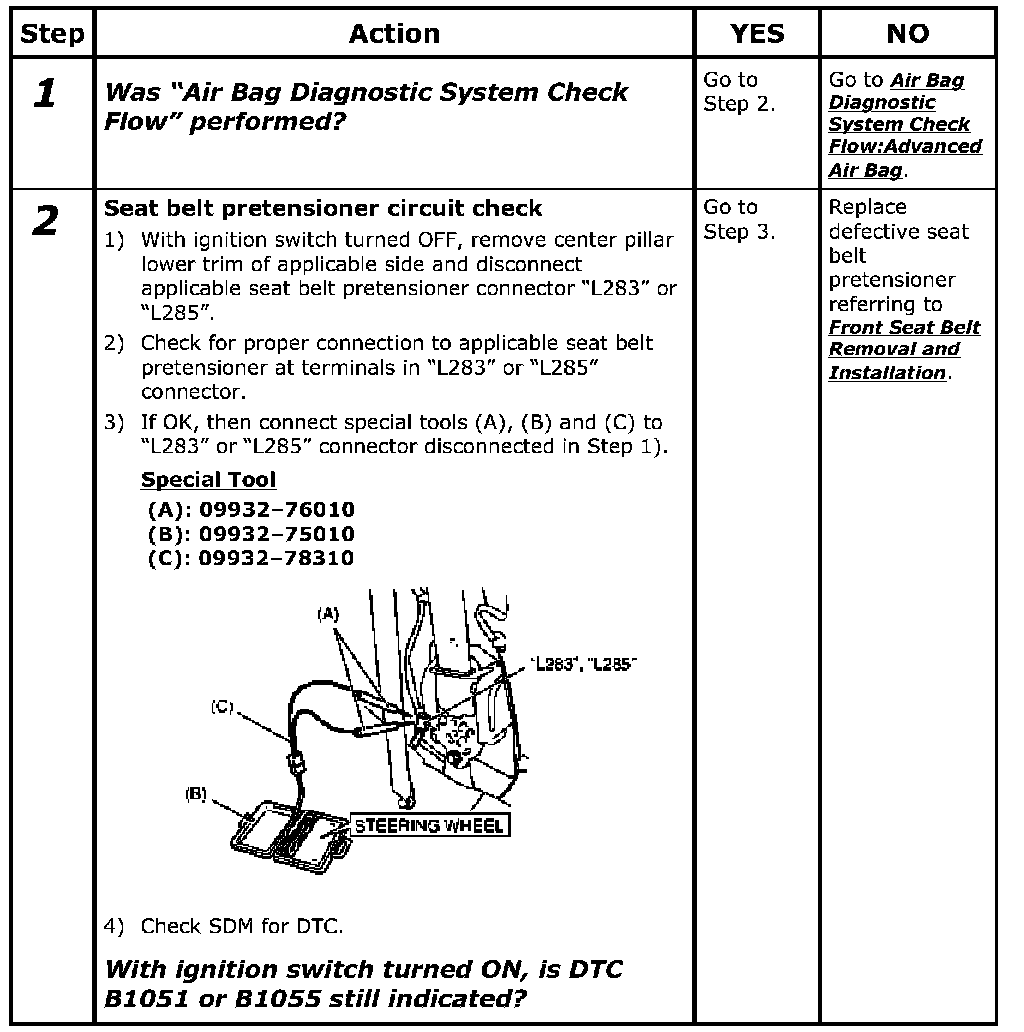

Step 1-2:

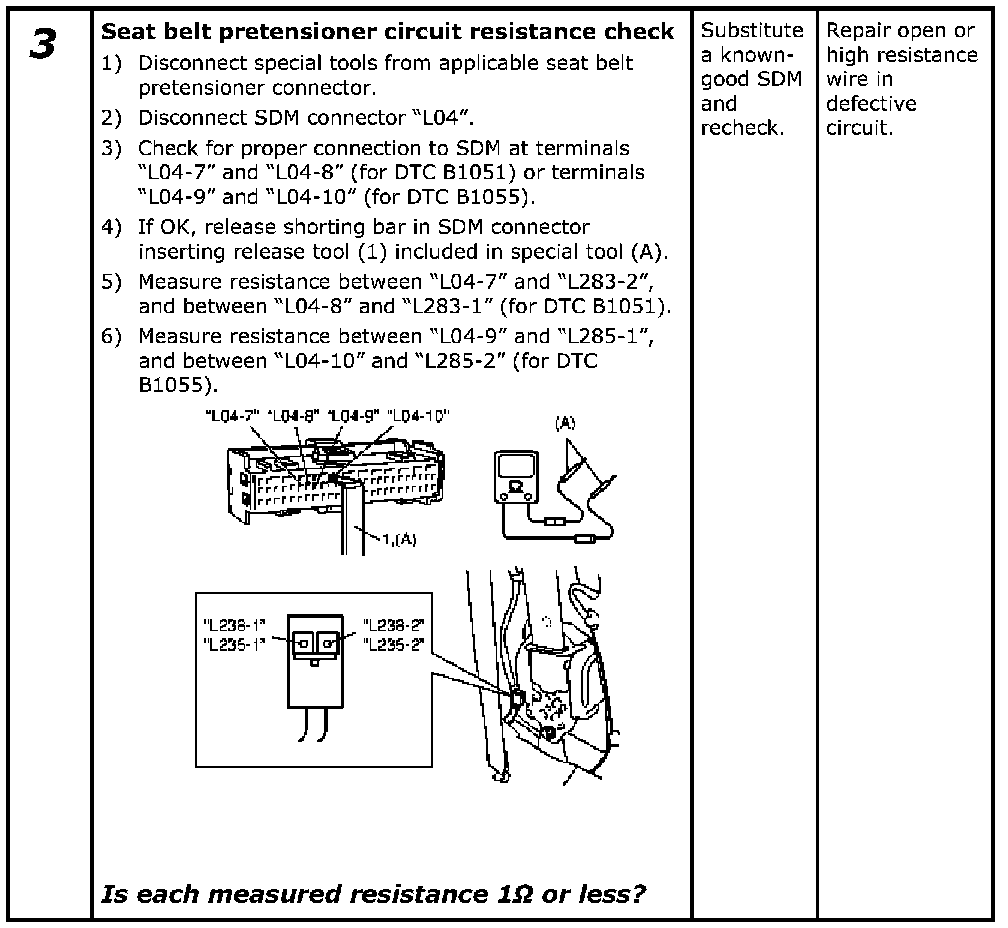

Step 3:

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
