Except Advanced Air Bag

DTC B1034: Driver Air Bag (1st stage) Circuit Shorted to Power Supply

Wiring Diagram

Wiring Diagram:

DTC Detecting Condition and Trouble Area

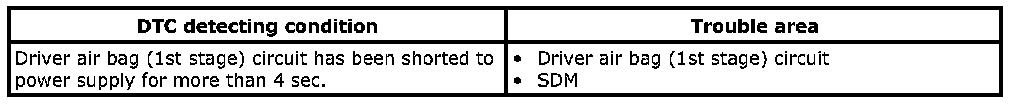

DTC Detecting Condition And Trouble Area:

DTC Troubleshooting

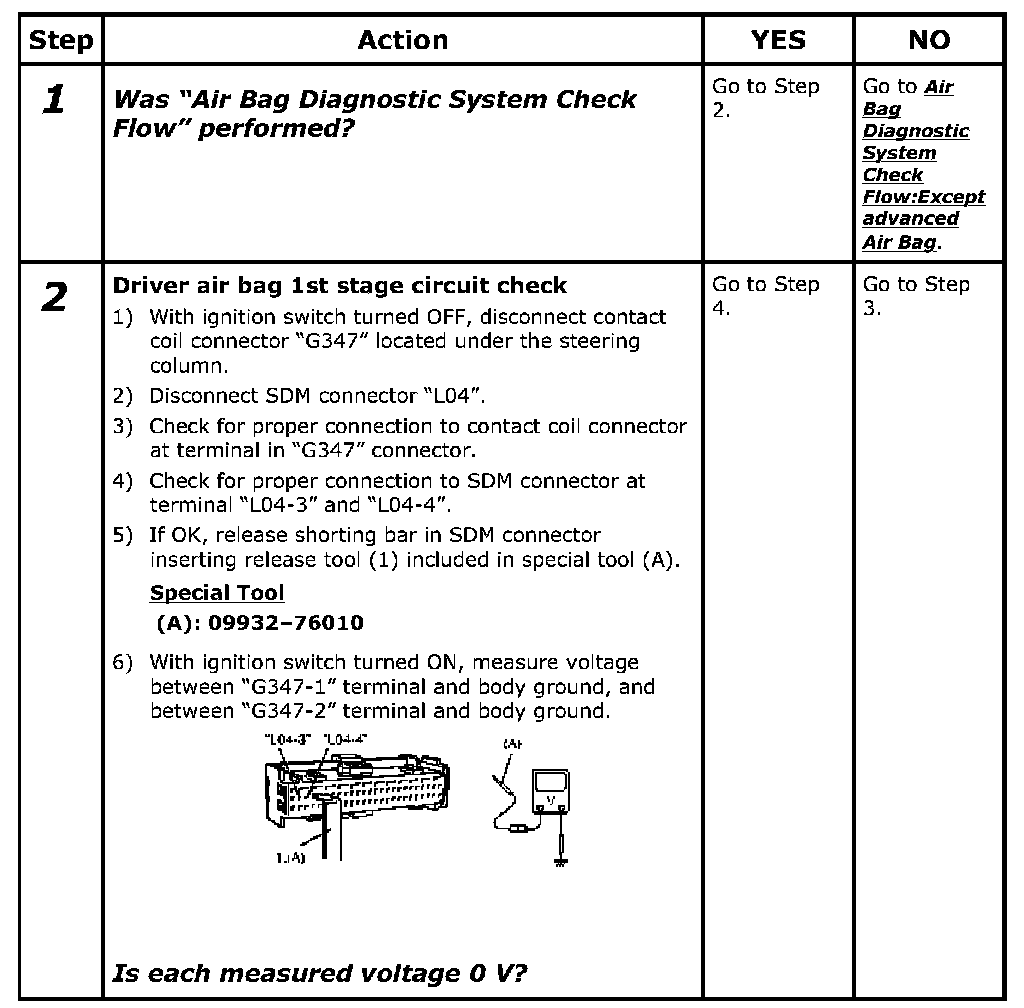

Step 1-2:

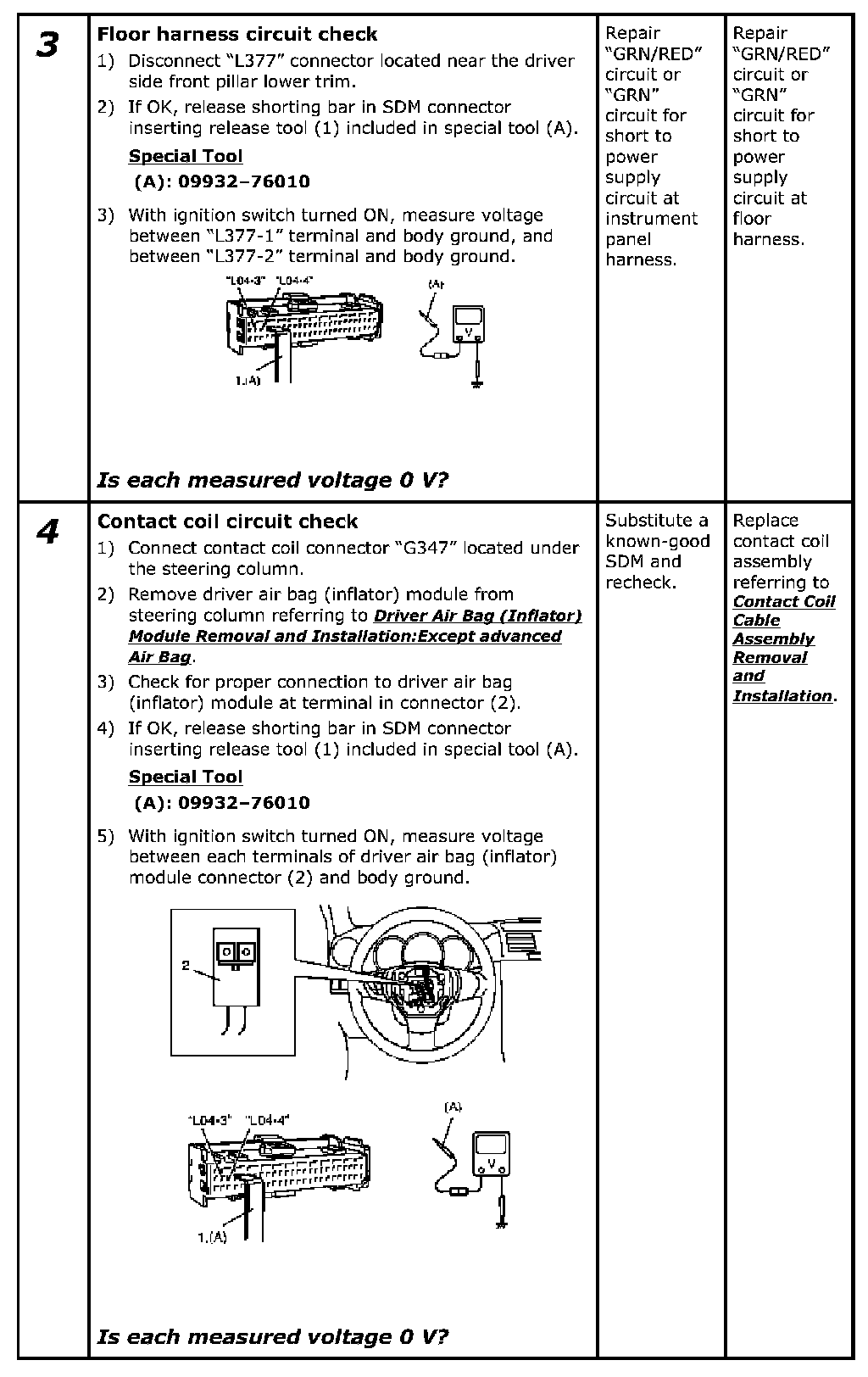

Step 3-4:

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Except advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Except advanced Air Bag to confirm that the trouble has been corrected.
