Except Advanced Air Bag

DTC B1013: SDM Internal Failure

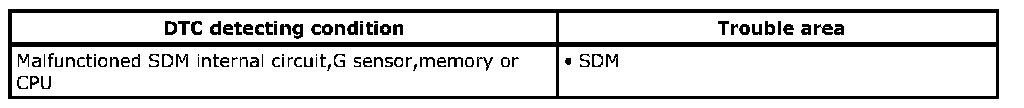

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

NOTE: DTC B1013 can never be cleared once it has been set.

DTC Troubleshooting

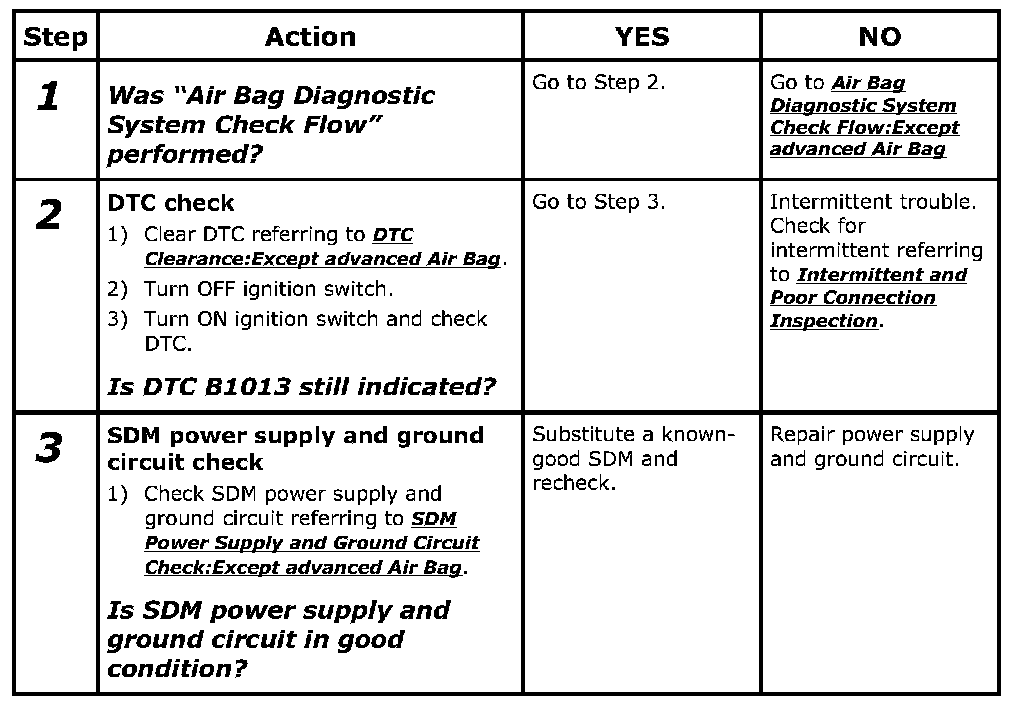

Step 1-3:

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Except advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Except advanced Air Bag to confirm that the trouble has been corrected.
