Advanced Air Bag

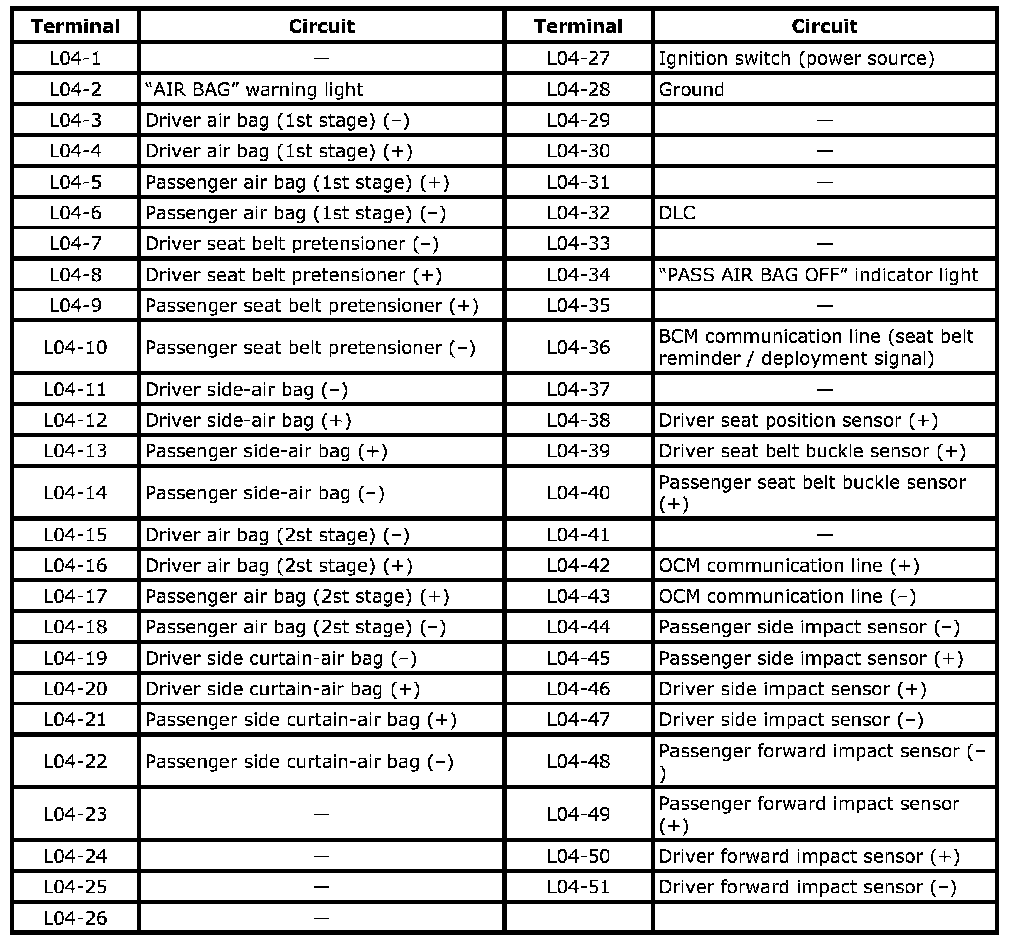

L04-1-L04-26:

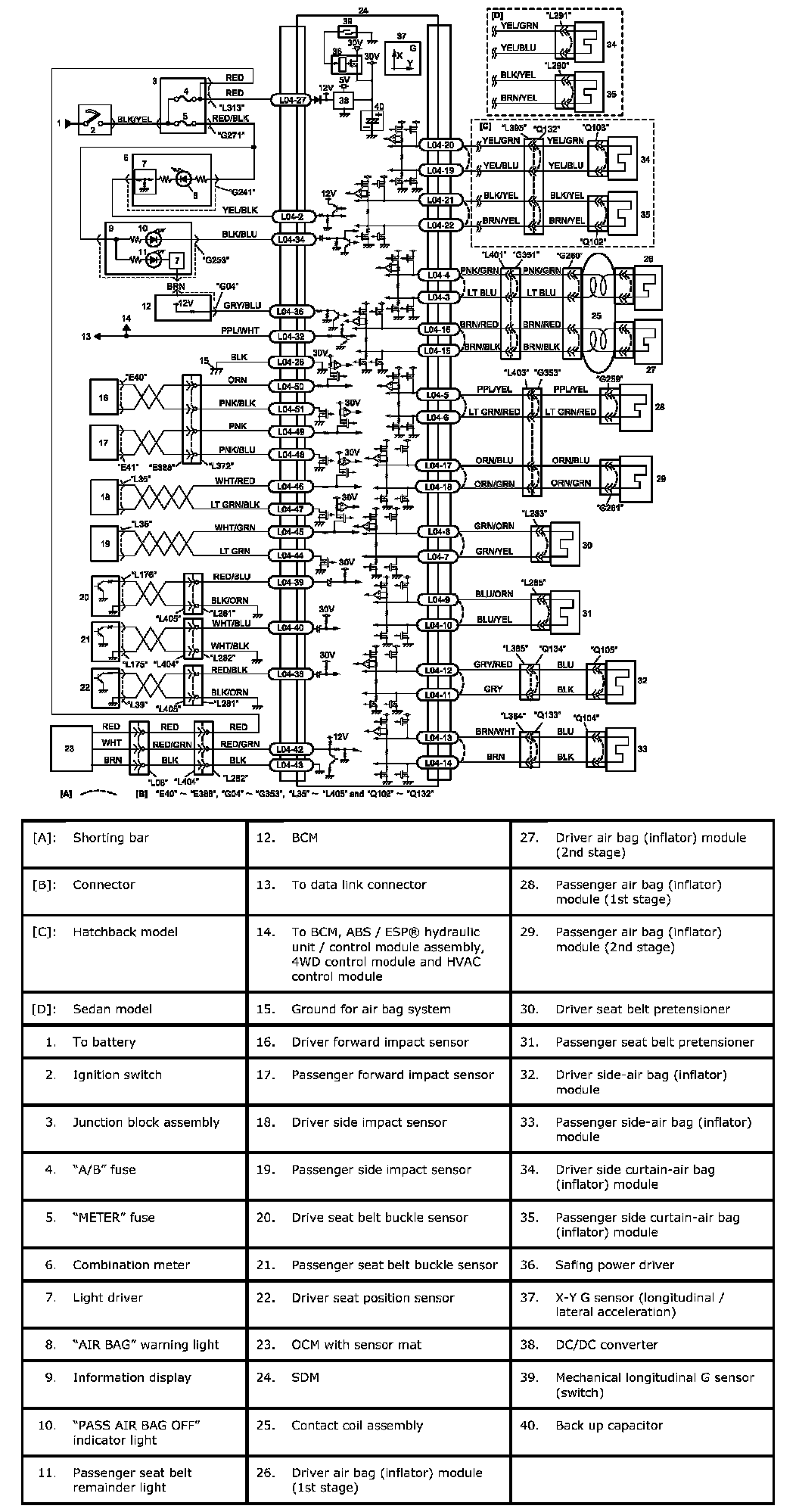

Air Bag System Wiring Circuit Diagram:

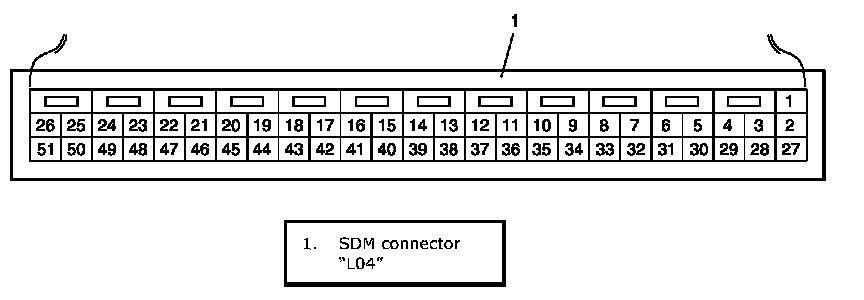

Terminal Arrangement Of SDM (Viewed From Harness Side):
