Electric Throttle Body Assembly Removal and Installation
Electric Throttle Body Assembly Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Drain coolant.
3. Remove air cleaner assembly.

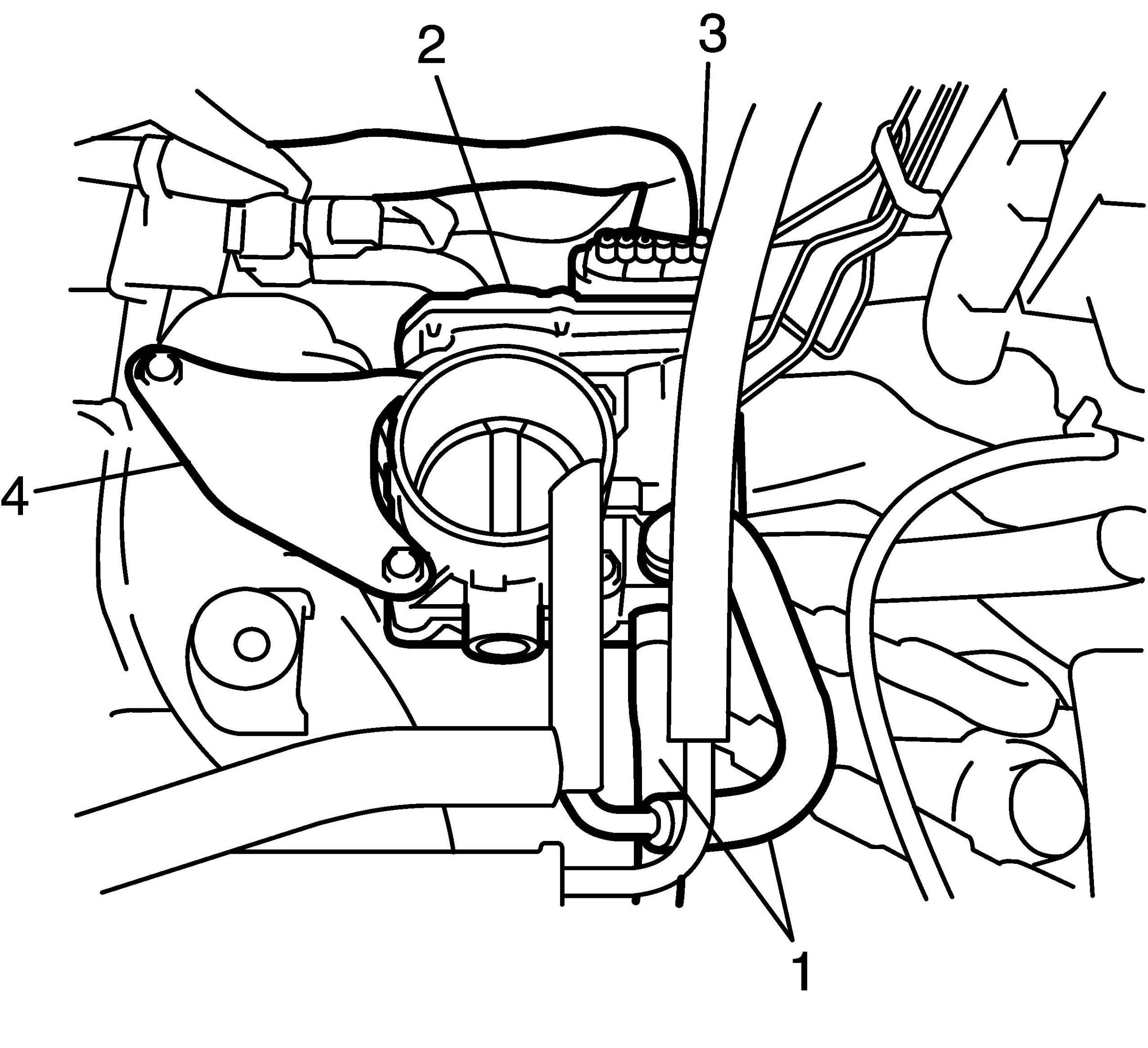

4. Disconnect engine coolant hoses (1) from electric throttle body assembly (2).
5. Disconnect connector (3) from electric throttle body assembly.
6. Remove stiffener (4).
7. Remove electric throttle body assembly from intake manifold.
Installation
1. Clean mating surfaces, and install new throttle body gasket to intake manifold.

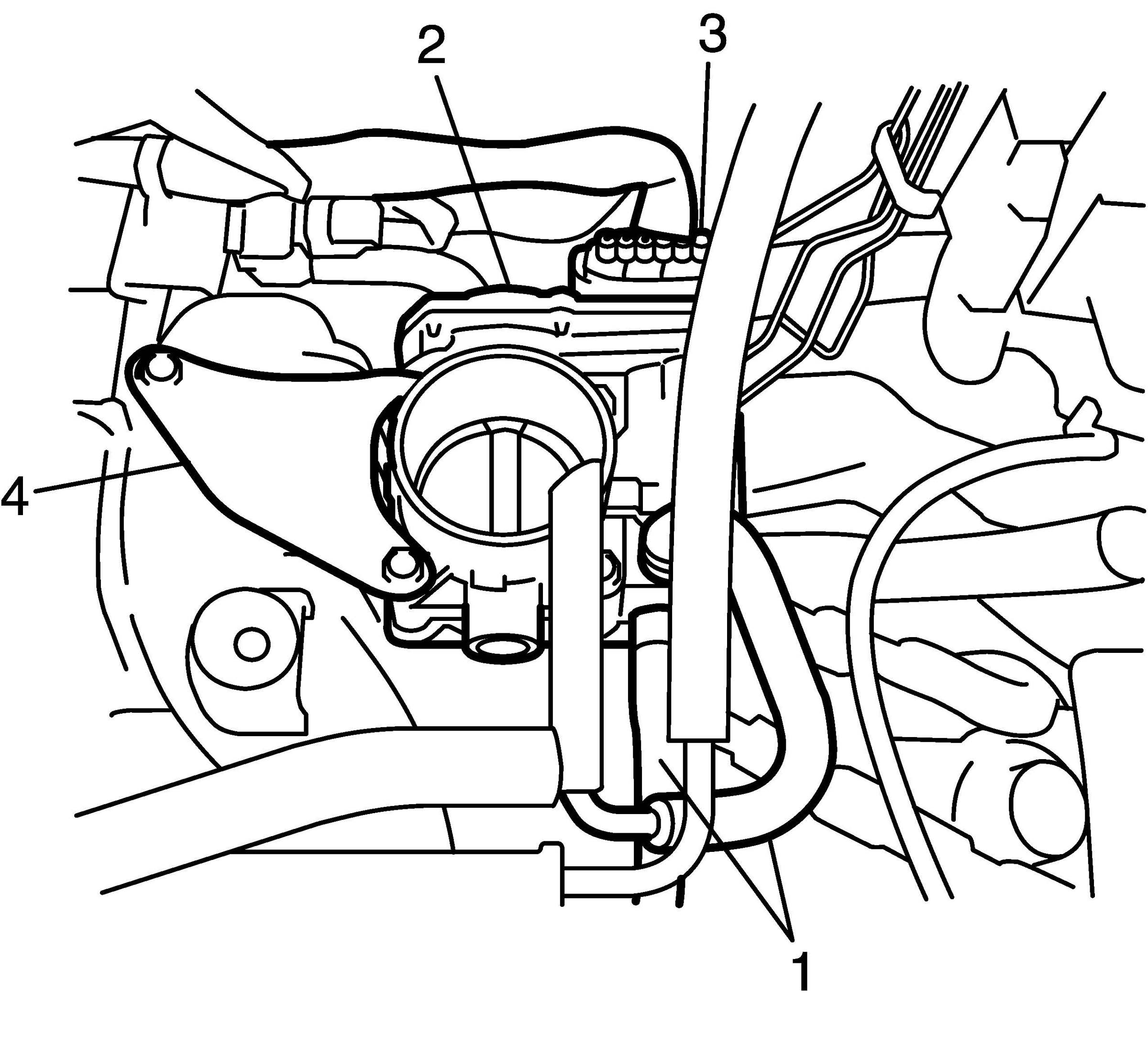

2. Install electric throttle body assembly (2) with stiffener (4) to intake manifold.
3. Connect connector (3) to electric throttle body assembly securely.
4. Connect engine coolant hoses (1) to electric throttle body assembly (2).
5. Install air cleaner assembly.
6. Refill coolant.
7. Connect negative (-) cable at battery.
8. Perform calibration of electric throttle body assembly.
