Home >> Suzuki >> 2008 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starter Motor

Starter Motor

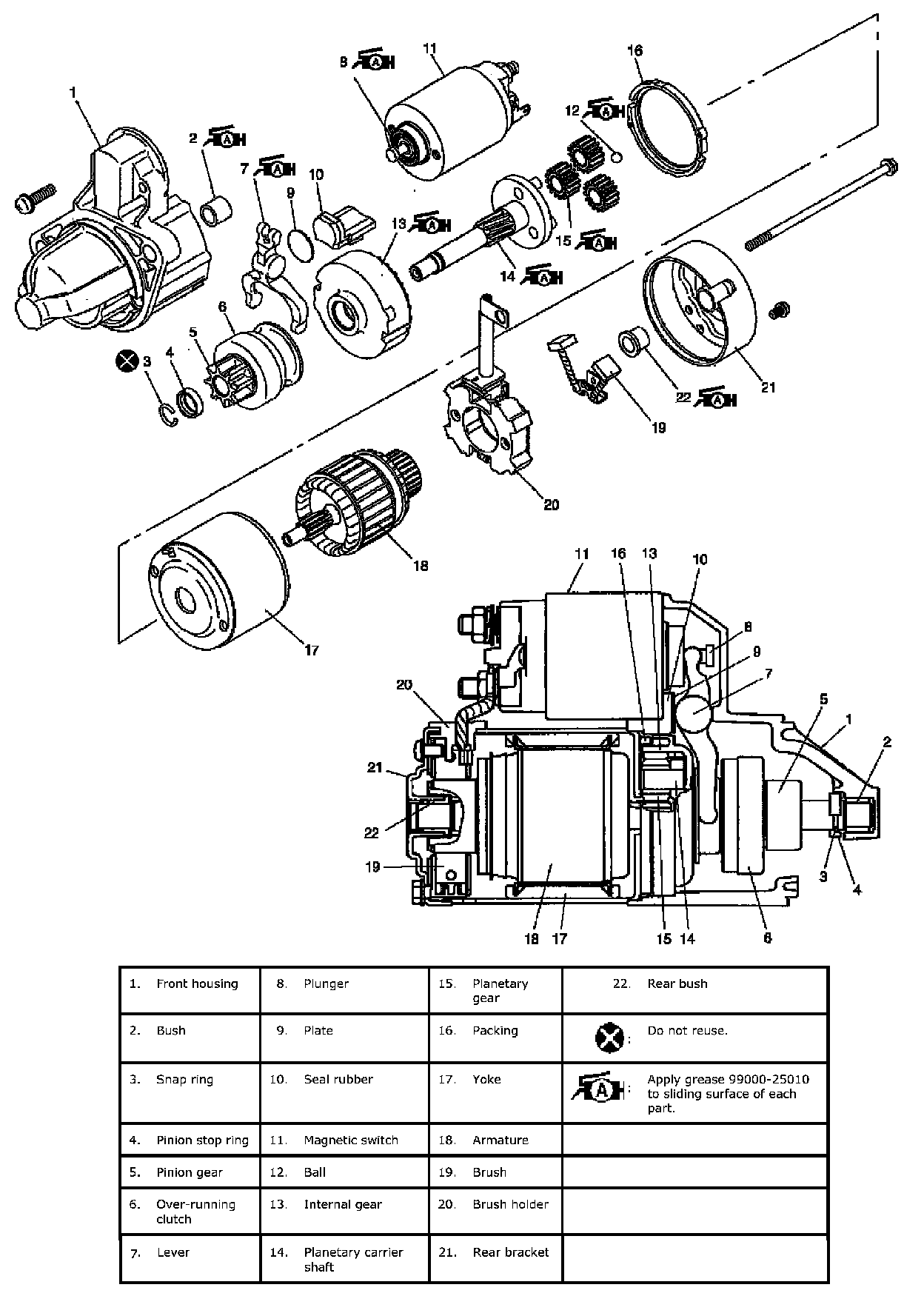

Starting Motor Unit Components:

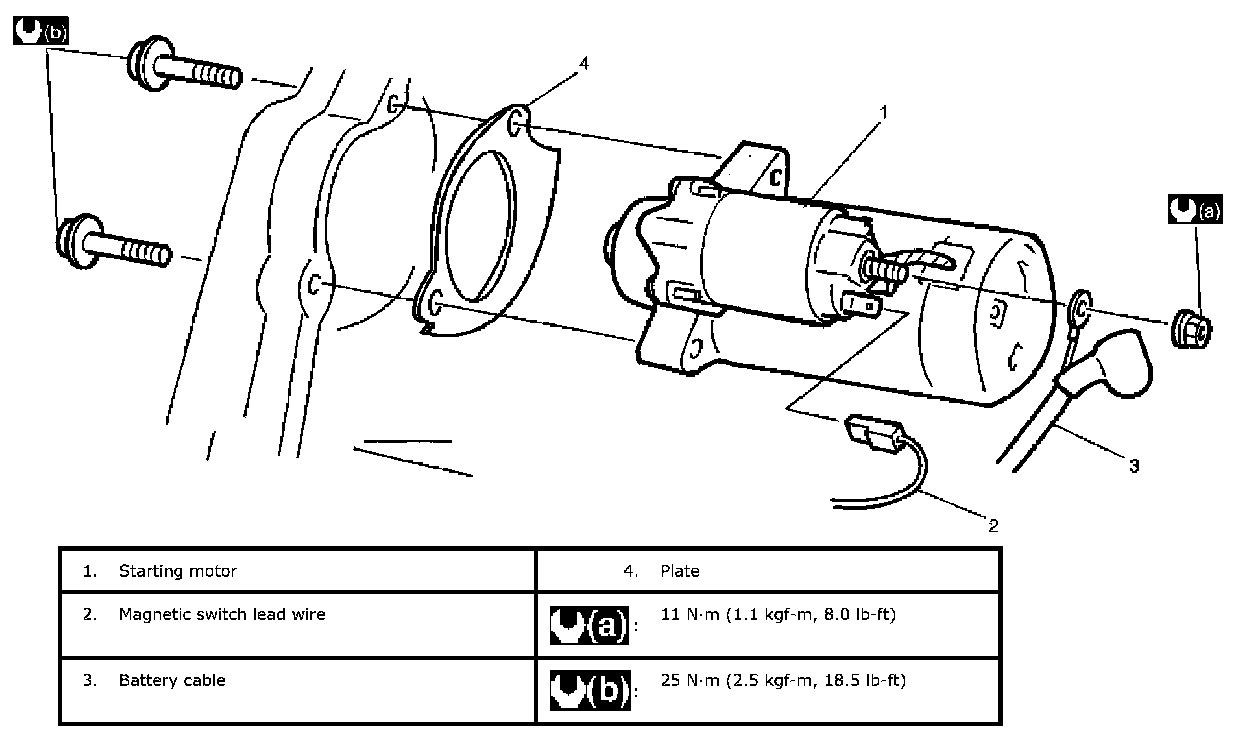

Starting Motor Components:
